Controls - 66 RT120Q Operator’s Manual

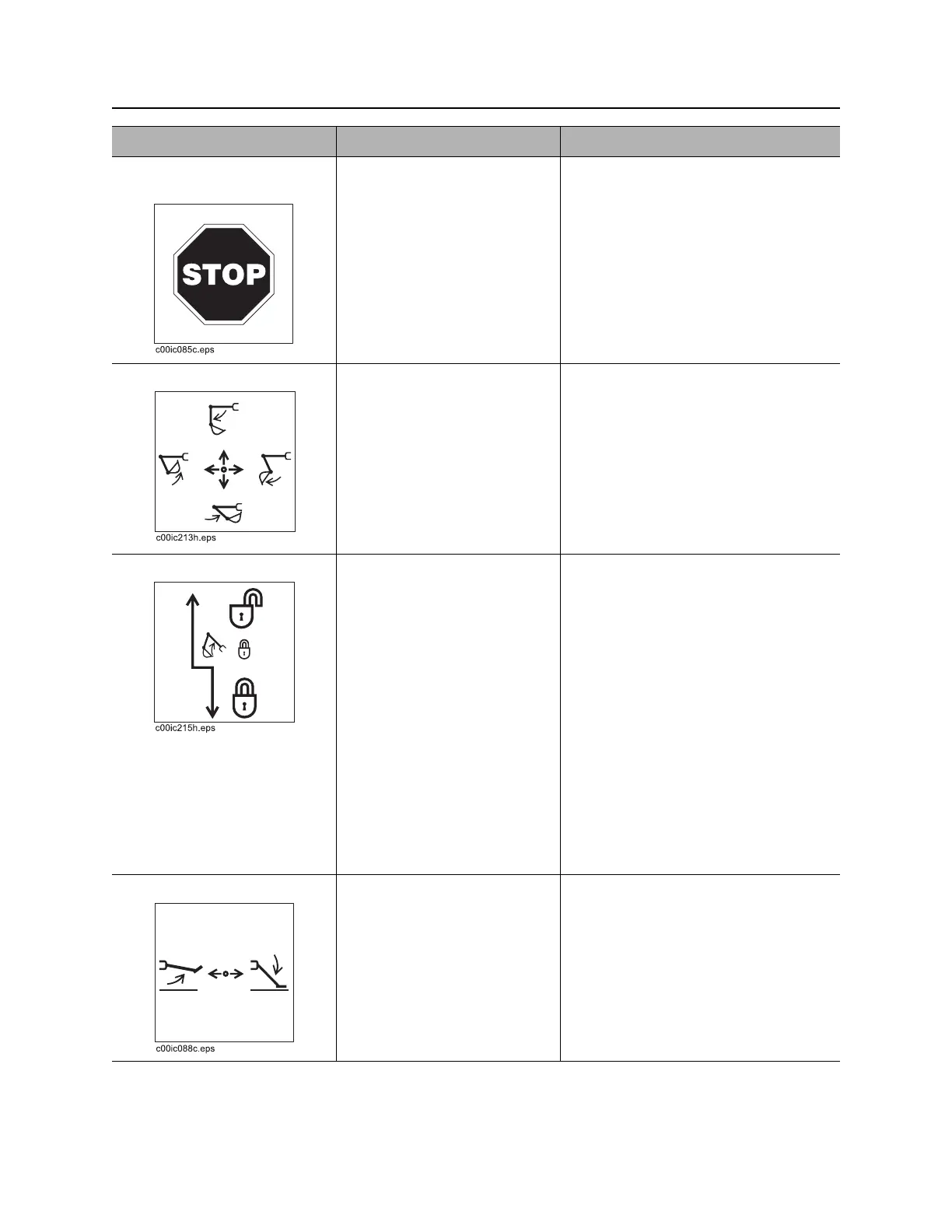

Backhoe Console
9. Remote engine stop
switch
Press to stop engine
immediately.
For normal engine shutdown, use
ignition switch.
Note: This switch must be returned to
the UP position to allow engine
restarting.
10. Bucket/Dipper control To open bucket, move right.
To close bucket, move left.
To move dipper in, pull.
To move dipper out, push.
Control can perform more than one
action at a time. By “feathering” the
control, operator can combine
backhoe operations.
11. Stow lock control To lock:
• Raise boom fully.
• Pull stow lock handle.
• Lower boom slightly to
engage lock.
• Insert swing lock pin.
To unlock:
• Remove swing lock pin.
• Raise boom slightly.
• Push stow lock handle to
release lock.
Use this control to lock boom in the up
position.
NOTICE: Always use stow lock and
install swing lock pin during transport.
When unlocked, store swing lock pin
in holder located on left stabilizer
support.
12. Right stabilizer control To lower, push out.
To raise, pull in.
Item Description Notes
