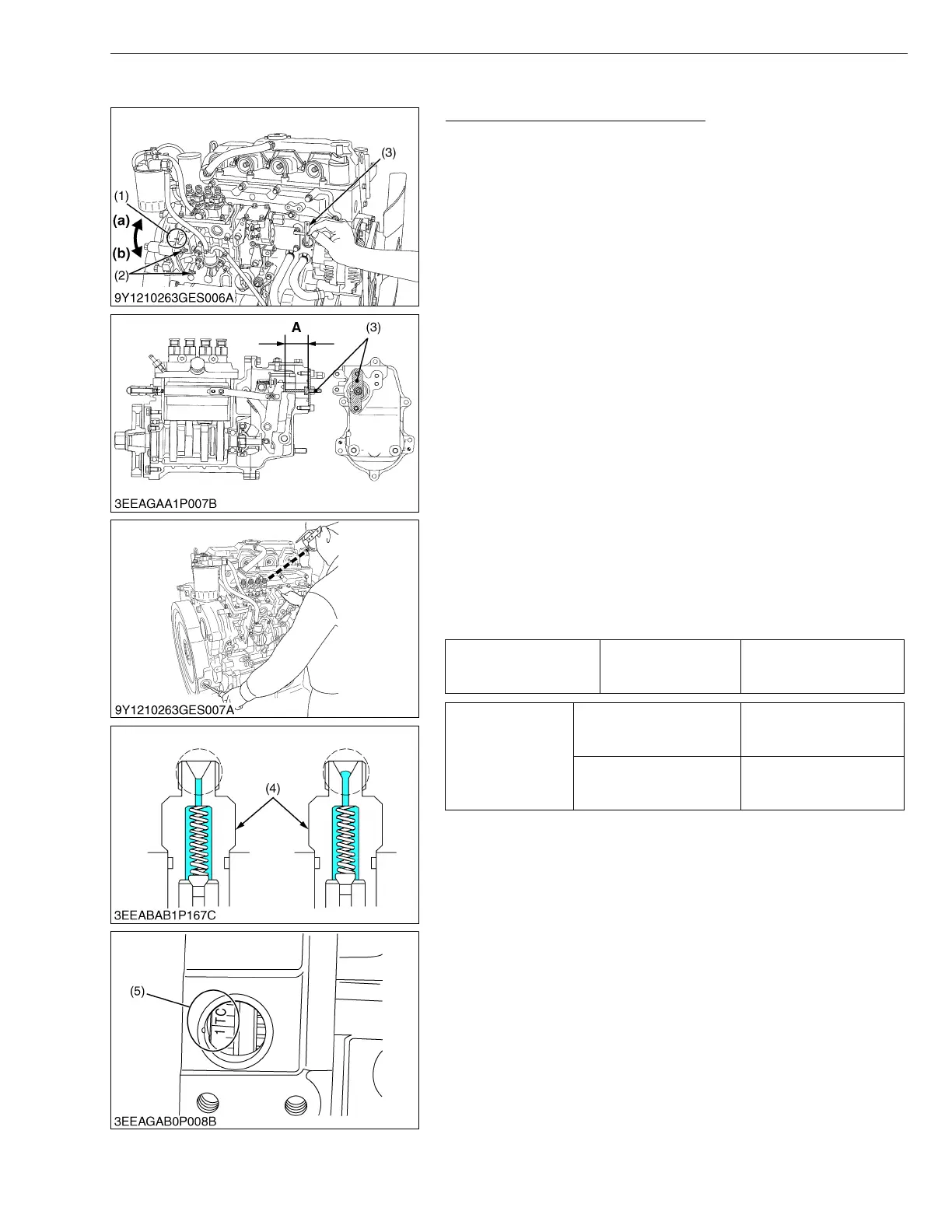

Injection Timing (for V2607-DI-E3B)
1. Make sure of matching the injection timing align mark (1) of the
injection pump unit and the flywheel housing, as shown in the
illustration.
2. Remove the injection pipes.
3. Remove the stop solenoid.
4. Set the fuel control rack fixing tool (3) to fix injection pump control
rack as shown in the illustration. (Refer to “5. SPECIAL TOOLS”
at “GENERAL” section.)
5. Turn the flywheel counterclockwise (viewed from flywheel side)
until the fuel fills up to the hole of the delivery valve holder (4) for
No.1 cylinder.
6. After the fuel fills up to the hole of the delivery valve holder (4) for
No.1 cylinder, turn back (clockwise) the flywheel around 1.6 rad
(90 °).
7. Turn the flywheel counterclockwise to set at around 0.17 rad
(10 ) before T.D.C..
8. Slowly turn the flywheel counterclockwise and stop turning when
the fuel begins to come up, to get the present injection timing.
9. Check to see the degree on flywheel.
The flywheel has mark “1TC” (5) for the crank angle before the
top dead center of No.1 piston.
10.If the injection timing is not within the specification, rotate the
injection pump unit to adjust the injection timing.
• When installing the injection pump unit to the engine body,
follow the correct procedure.
See the “Injection Pump Unit”.
W1055758
Injection Timing Factory spec.
0.027 to 0.052 rad
before T.D.C.
(1.5 to 3.0 before T.D.C.)
Tightening torque
Injection pipe retaining nut
23 to 36 N·m
2.3 to 3.7 kgf·m
17 to 26 lbf·ft
Injection pump unit
mounting nut
18 to 20 N·m
1.8 to 2.1 kgf·m
13 to 15 lbf·ft
(1) Injection Timing Align Mark
(2) Injection Pump Unit Mounting Nut
(3) Fuel Control Rack Fixing Tool
(4) Delivery Valve Holder
(5) Mark “1TC”
(a) Injection Timing Advanced
(b) Injection Timing Retarded
A : 34.9 to 35.1 mm (1.374 to 1.381 in.)
To Next Page
