S-98
07-E3B SERIES, WSM
ENGINE
(3) Piston and Connecting Rod

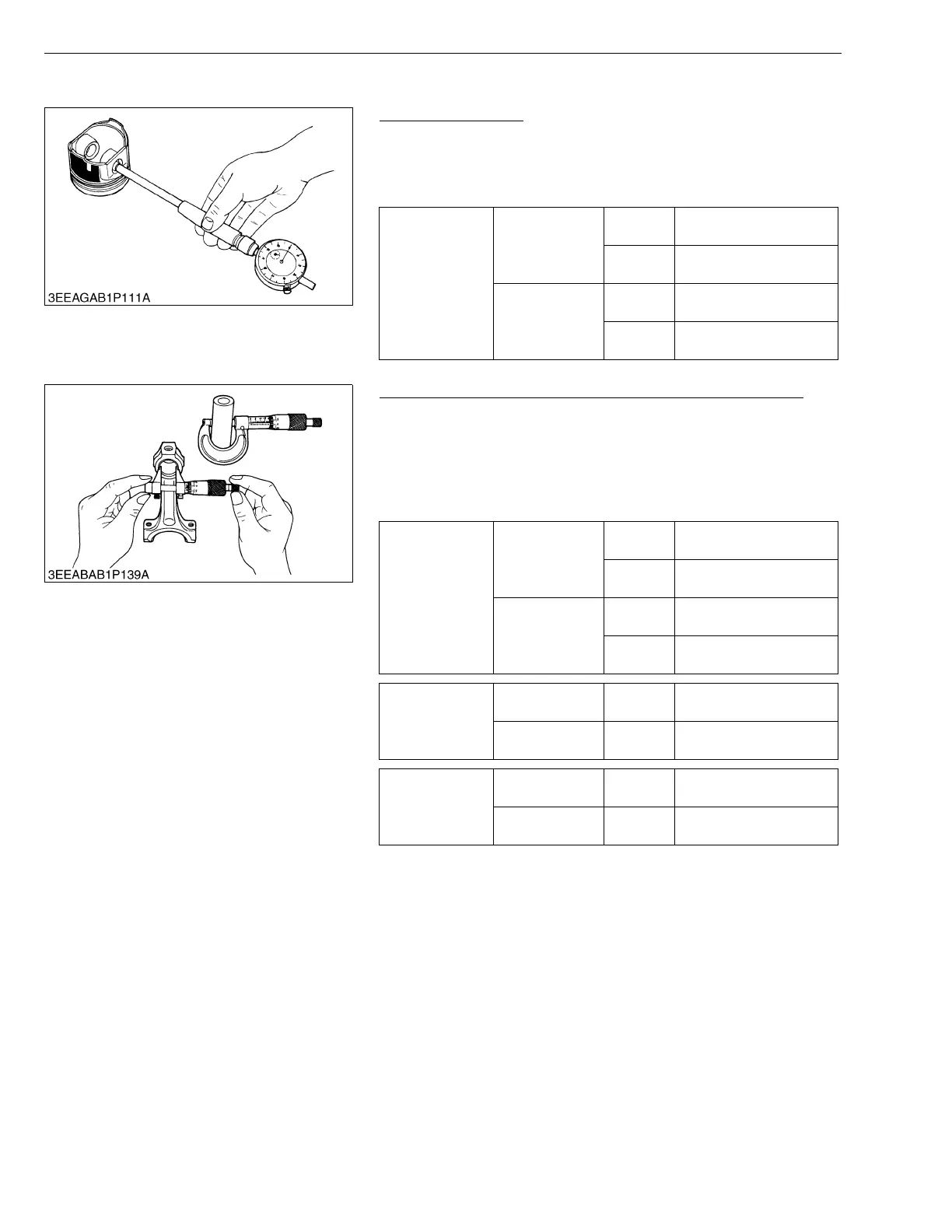

Piston Pin Bore I.D.
1. Measure the piston pin bore I.D. in both the horizontal and
vertical directions with a cylinder gauge.
2. If the measurement exceeds the allowable limit, replace the
piston.
W1065759
Oil Clearance between Piston Pin and Small End Bushing
1. Measure the O.D. of the piston pin where it contacts the bushing
with an outside micrometer.
2. Measure the I.D. of the piston pin bushing at the connecting rod
small end with a cylinder gauge. Calculate the oil clearance.
3. If the clearance exceeds the allowable limit, replace the bushing.
If it still exceeds the allowable limit, replace the piston pin.
W1065897
Piston pin bore
I.D.
V2607-DI-E3B
V2607-DI-T-E3B
Factory
spec.
26.000 to 26.013 mm
1.0237 to 1.0241 in.
Allowable
limit
26.05 mm
1.026 in.
V3007-DI-T-E3B
V3307-DI-T-E3B
Factory
spec.
28.000 to 28.013 mm
1.1024 to 1.1028 in.
Allowable
limit
28.05 mm
1.104 in.
Oil clearance
between piston
pin and small end
bushing
V2607-DI-E3B
V2607-DI-T-E3B
Factory
spec.
0.014 to 0.034 mm
0.00056 to 0.0013 in.
Allowable
limit
0.15 mm
0.0059 in.
V3007-DI-T-E3B
V3307-DI-T-E3B
Factory
spec.
0.020 to 0.040 mm
0.00079 to 0.0015 in.
Allowable
limit
0.15 mm
0.0059 in.
Piston pin O.D.
V2607-DI-E3B
V2607-DI-T-E3B
Factory
spec.
26.006 to 26.011 mm
1.0239 to 1.0240 in.
V3007-DI-T-E3B
V3307-DI-T-E3B
Factory
spec.
28.006 to 28.011 mm
1.1026 to 1.1027 in.
Small end
bushing I.D.
V2607-DI-E3B
V2607-DI-T-E3B
Factory
spec.
26.025 to 26.040 mm
1.0246 to 1.0252 in.
V3007-DI-T-E3B
V3307-DI-T-E3B
Factory
spec.
28.031 to 28.046 mm
1.1036 to 1.1041 in.
KiSC issued 06, 2020 A
