S-66
07-E3B SERIES, WSM
ENGINE

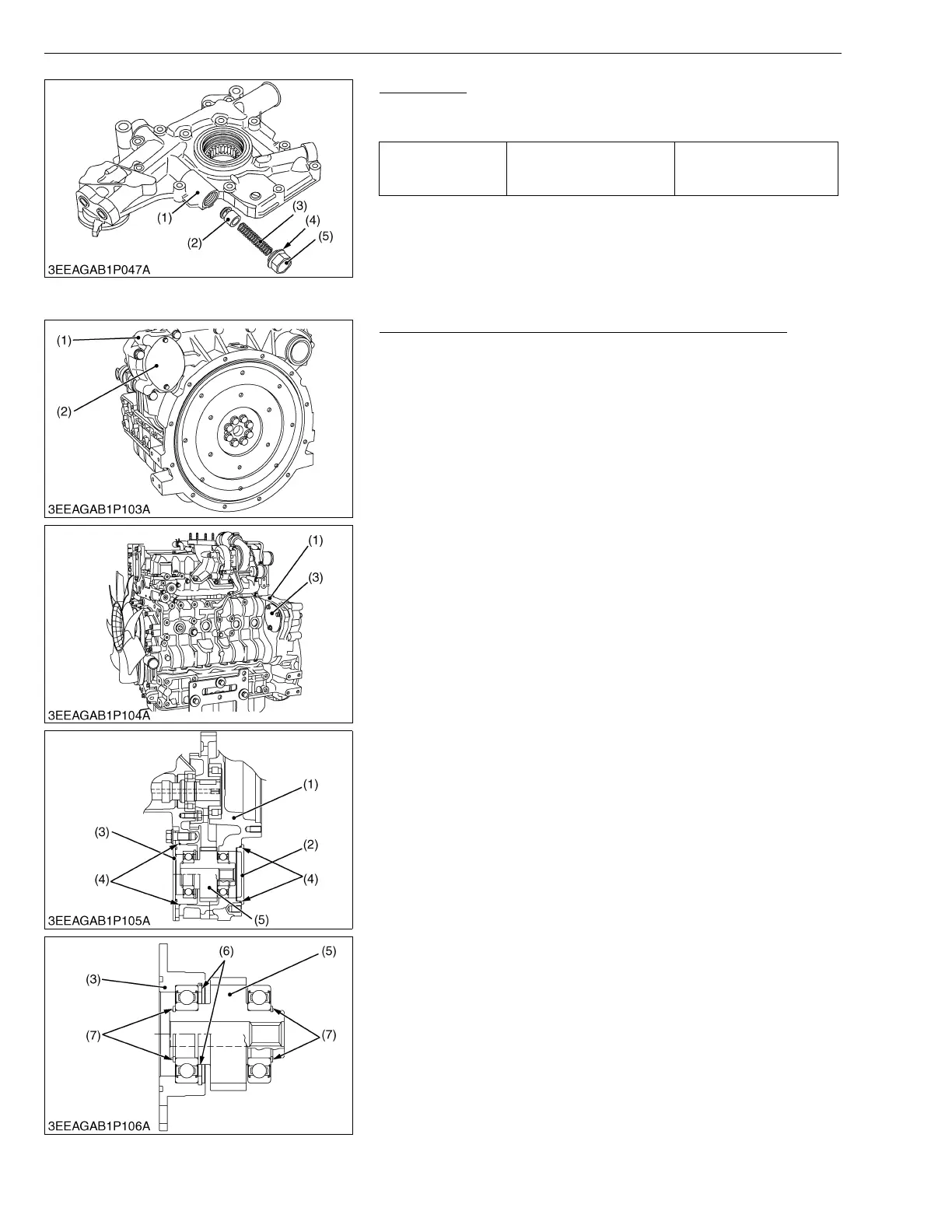

Relief Valve
1. Remove the relief valve retaining screw (5).
2. Remove the relief valve (2), the spring (3) and the packing (4).
W1081251
(9) Flywheel and Timing Gears
Side PTO (Option for V3007-DI-T-E3B / V3307-DI-T-E3B)
1. Remove the PTO cover 2 (2) from the flywheel housing (1).
2. Remove the PTO cover 1 (3) with PTO gear assembly (5) from
the flywheel housing (1).
(When reassembling)
• Be sure to place the O-ring (4).
• Be careful not to damage the O-ring (4).
W1124264
Tightening torque
Relief valve retaining
screw
69 to 78 N·m
7.0 to 8.0 kgf·m
51 to 57 lbf·ft
(1) Front Cover
(2) Relief Valve
(3) Spring
(4) Packing
(5) Relief Valve Retaining Screw
(1) Flywheel Housing
(2) PTO Cover 2
(3) PTO Cover 1
(4) O-ring
(5) PTO Gear Assembly
(6) Snap Ring 1
(7) Snap Ring 2
To Next Page
