07-E3B SERIES, WSM
ENGINE
(7) Water Pump and Oil Cooler
Water Pump (If necessary)

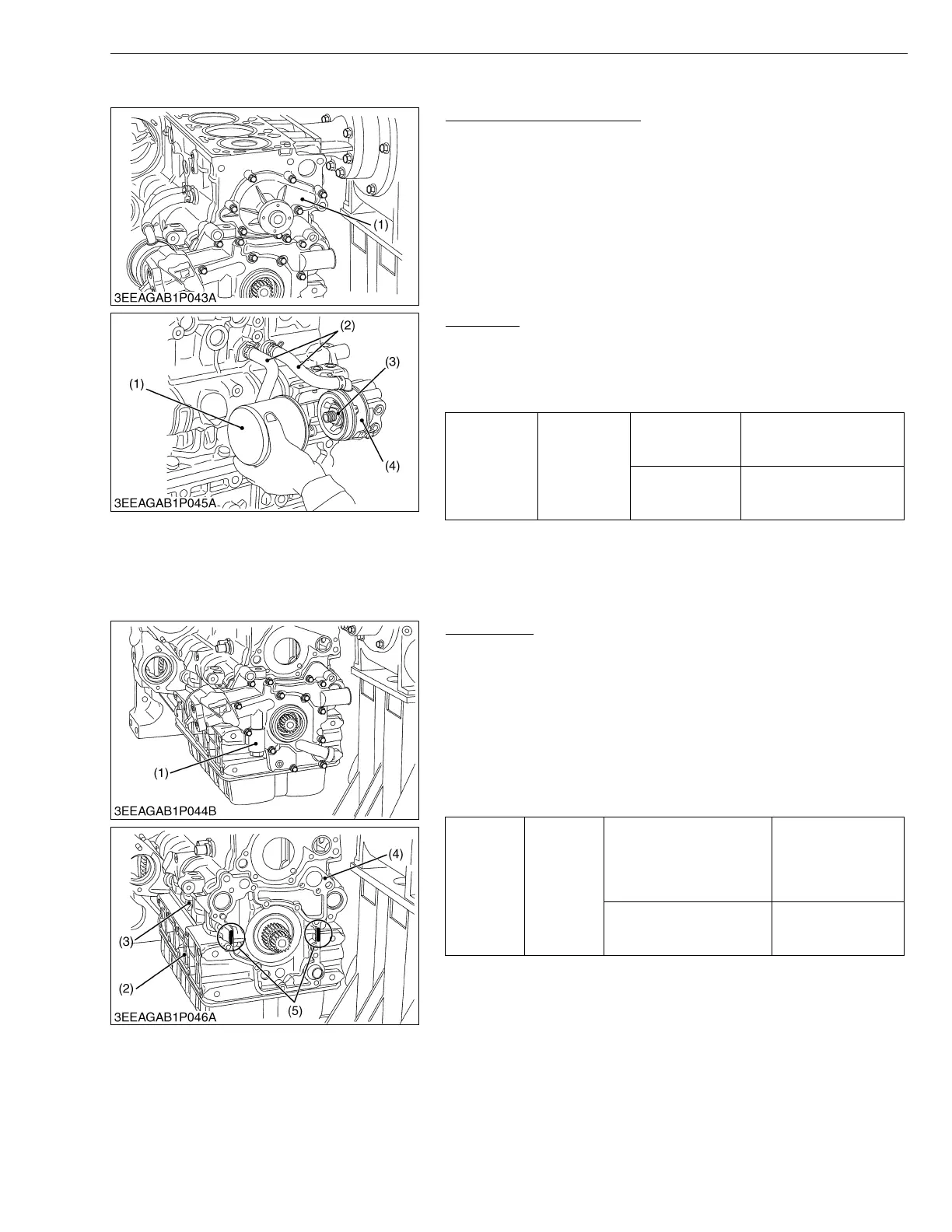

1. Remove the water pump (1).
(When reassembling)
• When mounting the water pump (1), use the new water pump
gasket.
W1187742
Oil Cooler
1. Remove the water pipe (2).
2. Remove the oil filter cartridge (1) and the oil cooler joint screw
(3).
3. Remove the oil cooler (4).
W1032266
(8) Front Cover
Front Cover
1. Remove the front cover (1).
(When reassembling)
• Confirm that the front cover gasket (4) set in position.
• Confirm that the liquid gasket coating surface is free of water,
dust and oil in order to maintain sealing effect.
NOTE
• Assemble the adhesive-applied parts within ten minutes.
• Apply a liquid gasket (Three Bond 1217H or equivalent) (5)
to the seam between crankcase 1 (3) and crankcase 2 (2).
W1189218
(1) Water Pump
Tightening
torque
Oil cooler
joint screw
V2607-DI-E3B
V2607-DI-T-E3B
64 to 73 N·m
6.5 to 7.5 kgf·m
47 to 54 lbf·ft
V3007-DI-T-E3B
V3307-DI-T-E3B
40 to 44 N·m
4.0 to 4.5 kgf·m
29 to 32 lbf·ft
(1) Oil Filter Cartridge
(2) Water Pipe
(3) Oil Cooler Joint Screw
(4) Oil Cooler
Tightening
torque
Front
cover
mounting
screw
[7T screw]
V2607-DI-E3B
V2607-DI-T-E3B
V3007-DI-T-E3B
V3307-DI-T-E3B
24 to 27 N·m
2.4 to 2.8 kgf·m
18 to 20 lbf·ft
[10T screw]
V3007-DI-T-E3B
V3307-DI-T-E3B
30 to 34 N·m
3.0 to 3.5 kgf·m
22 to 25 lbf·ft
(1) Front Cover
(2) Crankcase 2
(3) Crankcase 1
(4) Front Cover Gasket
(5) Liquid Gasket
