S-41
07-E3B SERIES, WSM
ENGINE

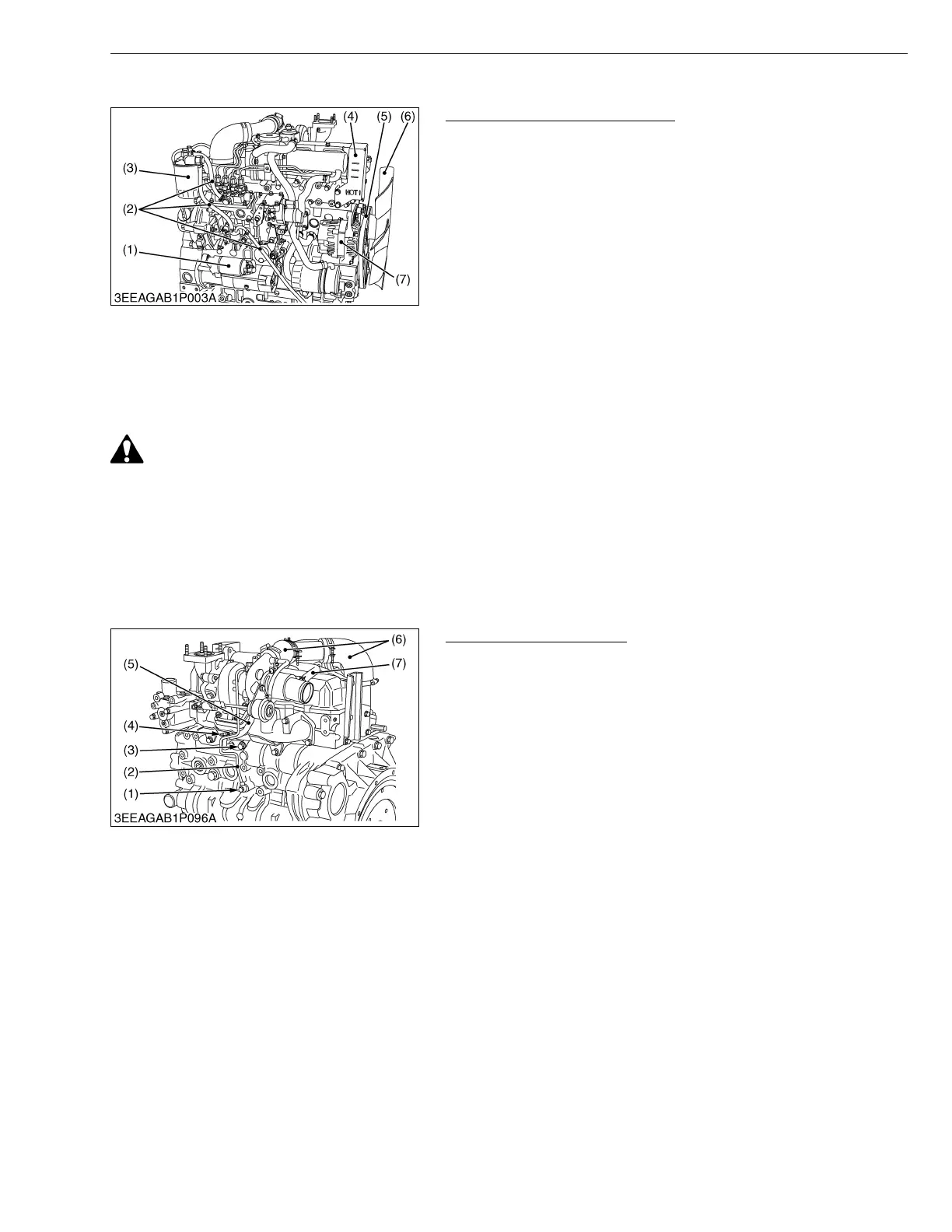

(2) External Components
Air Cleaner, Muffler and Others
1. Remove the air cleaner and muffler.
2. Remove the fan (6), fan belt (5), cover (4), fuel filter cartridge (3),
fuel tubes (2), alternator (7) and starter (1).
(When reassembling)
Check to see that there are no cracks on the belt surface.
Mount the check valve with the mark toward the tank.
IMPORTANT
After reassembling the fan belt (5), be sure to adjust the fan
belt tension.
Do not confuse the direction of the fan (6). Attach the fan (6)
with its marking facing frontward (toward the radiator).
W1049622
CAUTION
While the engine is operating and or just after it stops, the turbocharger is hot, be careful not to touch the
turbocharger.
NOTE
When detaching and attaching the turbocharger assembly, be very careful not to allow dust, dirt and other
foreign matter in the oil pipes.
When the turbocharger assembly has been replace, pour fresh engine oil through the oil filler port of the
turbocharger.
Before starting the engine, make sure that air cleaner is in position.
Oil Pipe and Intake Hose
1. Remove the joint bolt (1), bolt (3) and clamp band (4).
2. Disconnect the oil pipe 1 (2) and oil pipe 2 (5).
3. Remove the intake hose (6) and breather hose (7).
(When reassembling)
Pour fresh engine oil through the oil filler port of the turbocharger.
Replace the gasket with new one.
Be careful not to allow dust, dirt and other foreign matters in the
oil pipes (2) / (5).
NOTE
Tape or plug all openings to prevent foreign matters from
damaging the oil cavities in the turbocharger.
W1025983
(1) Starter
(2) Fuel Tube
(3) Fuel Filter Cartridge
(4) Cover
(5) Fan Belt
(6) Fan
(7) Alternator
(1) Joint Bolt
(2) Oil Pipe 1
(3) Bolt
(4) Clamp Band
(5) Oil Pipe 2
(6) Intake Hose
(7) Breather Hose
