07-E3B SERIES, WSM
ENGINE
Turbocharger Assembly and Exhaust Manifold
1. Remove the cover (1) and exhaust manifold mounting screws (3).
2. Take off the turbocharger assembly (4) with exhaust manifold (2).
3. Remove the oil pipe 1 (6) and oil pipe 2 (9). (If necessary)
4. Remove the exhaust port (5) and exhaust manifold (2). (If
necessary)
(When reassembling)
• Replace the gasket (8) with new one.
NOTE
• Be careful not to damage the O-ring (10).
W1078106
Tightening torque Oil pipe 1 mounting screw
16 to 19 N·m
1.6 to 2.0 kgf·m
12 to 14 lbf·ft

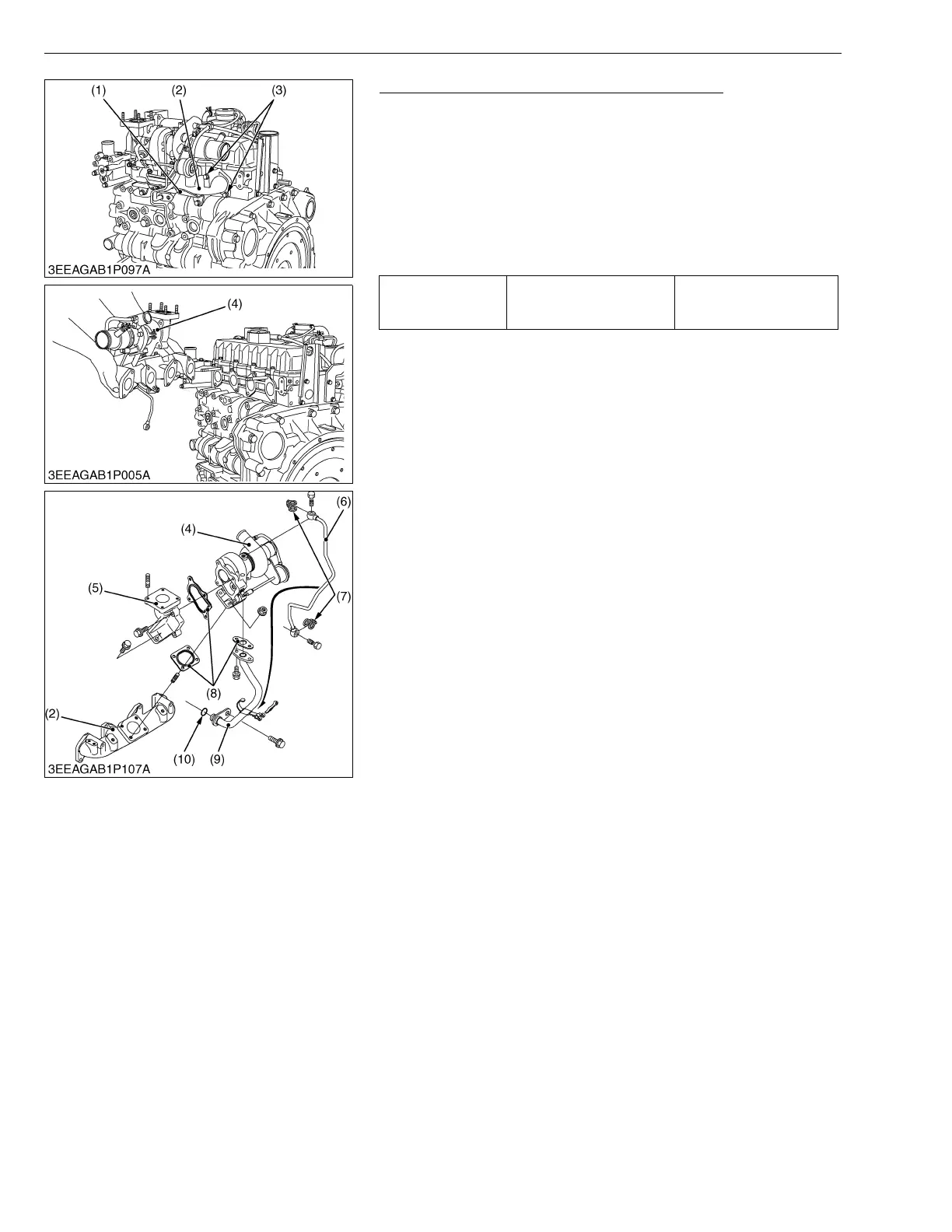

(1) Cover
(2) Exhaust Manifold
(3) Exhaust Manifold Mounting Screw
(4) Turbocharger Assembly
(5) Exhaust Port
(6) Oil Pipe 1
(7) Oil Pipe Gasket
(8) Gasket
(9) Oil Pipe 2
(10) O-ring
