S-35
07-E3B SERIES, WSM
ENGINE

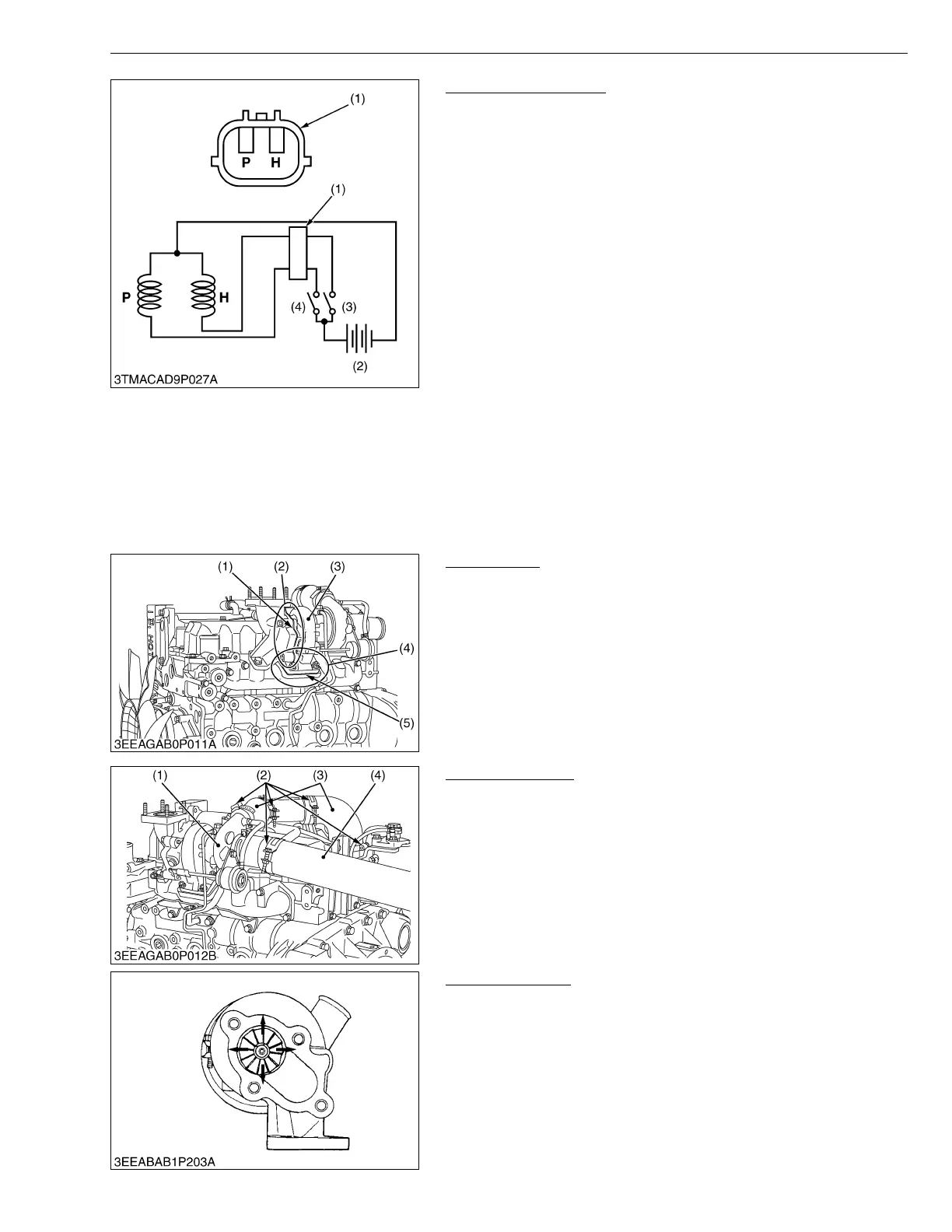

Engine Stop Solenoid
1. Remove the engine stop solenoid from the engine.
2. Connect the jumper leads from the pulling coil P terminal to the
switch (3), and from switch (3) to the battery positive terminal.
3. Connect the jumper leads from the holding coil H terminal to the
switch (4), and from switch (4) to the battery positive terminal.
4. Connect the jumper leads from the engine stop solenoid body to
the battery negative terminal.
5. When switch (4) is turn on, the plunger pull into the solenoid body
and then turn off the switch (4), the plunger comes out.
6. Turn on the switch (3) then turn on the switch (4), the plunger pull
into the solenoid body and it keep in holding position after turn off
the switch (4).
7. If the plunger is not attracted, the engine stop solenoid is
damaged.
• Never apply the current for pulling coil more than two
seconds when inspecting.
W1020600
(6) Turbocharger
Turbine Side
1. Check the exhaust port (2) and inlet port (4) side of turbine
housing (3) to see if there is no exhaust gas leak.
2. If any gas leak is found, retighten the bolts and nuts or replace
the gasket (1) / (5) with new one.
W1076917
Compressor Side
1. Check the inlet hose (4) of the compressor cover (1) to see if
there is no air leak.
2. Check for loose connections or cracks in the suction side of the
intake hose (3).
3. If any air leak is found, change the clamp band (2) and / or intake
hoses (3).
W1077032
Radial Clearance
1. If the wheel contact to the housing, replace the turbocharger
assembly with new one.
W1077353
(1) Connector
(2) Battery
(3) Switch for Holding Coil
(4) Switch for Pulling Coil
P : Terminal for Pulling Coil
H : Terminal for Holding Coil
(1) Gasket
(2) Exhaust Port
(3) Turbine Housing
(4) Inlet Port
(5) Gasket
(1) Compressor Cover
(2) Clamp Band
(3) Intake Hose
(4) Inlet Hose
