07-E3B SERIES, WSM
ENGINE
Replacing Small End Bushing (for V2607-DI-E3B / V2607-DI-T-
E3B)
(When removing)
1. Press out the used bushing.
(When installing)
1. Clean a new small end bushing and bore, and apply engine oil to
them.
2. Set the guide (4) to the bore of the connecting rod (2).
3. Insert a new first bushing (3) onto the small end bushing
replacing tool. (Refer to “5. SPECIAL TOOLS” at “GENERAL“
section.)
4. Press-fit it with a press so that the seam (6) of bushing position
as shown in the figure.
5. Turn the connecting rod inside out, and press-fit the second
bushing similarly.
W1066057

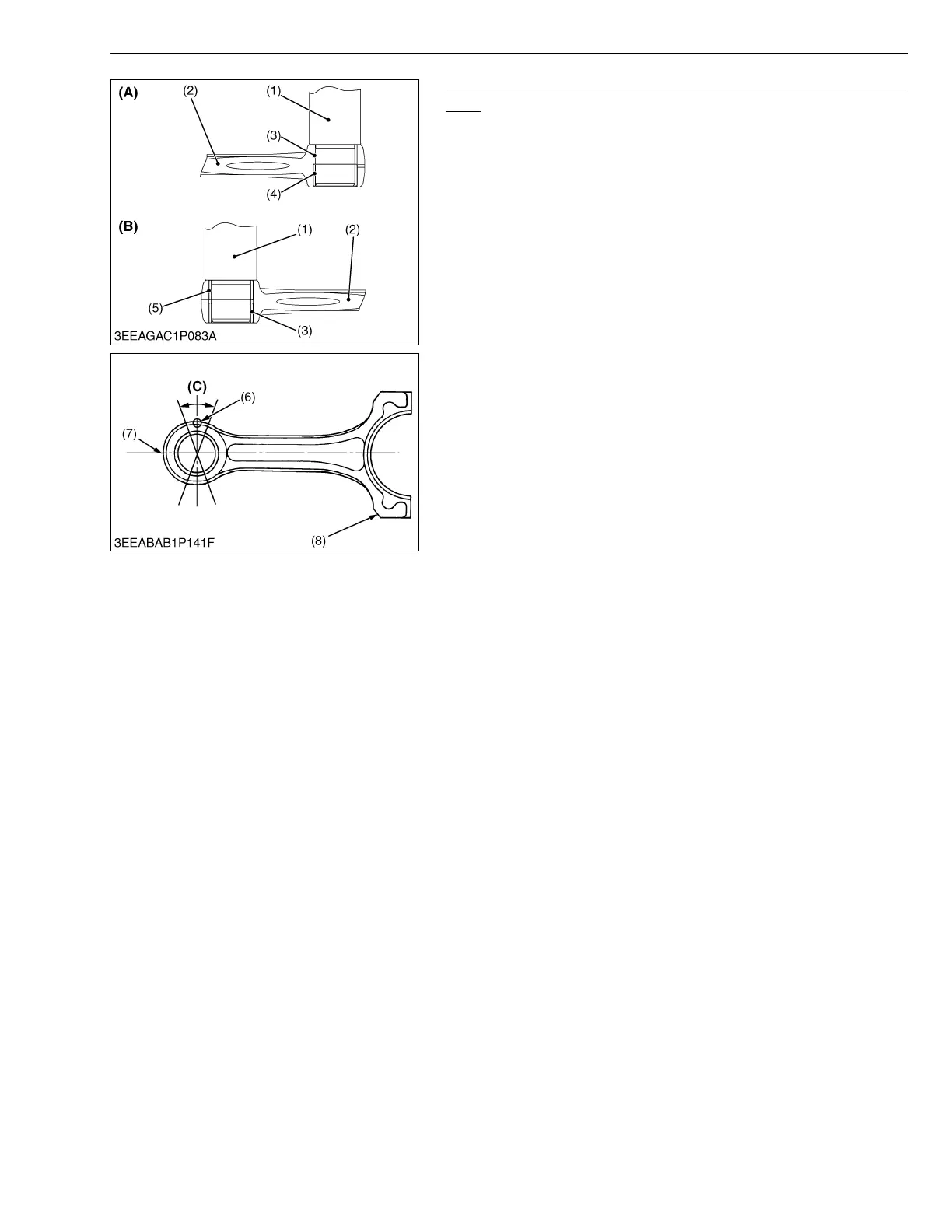

(1) Small End Bushing Replacing Tool
(2) Connecting Rod
(3) First Bushing
(4) Guide
(5) Second Bushing
(6) Seam
(7) Oil Hole
(8) Mark
(A) When Installing First Bushing
(B) When Installing Second Bushing
(C) 0.26 rad (15 °)
