S-68
07-E3B SERIES, WSM
ENGINE

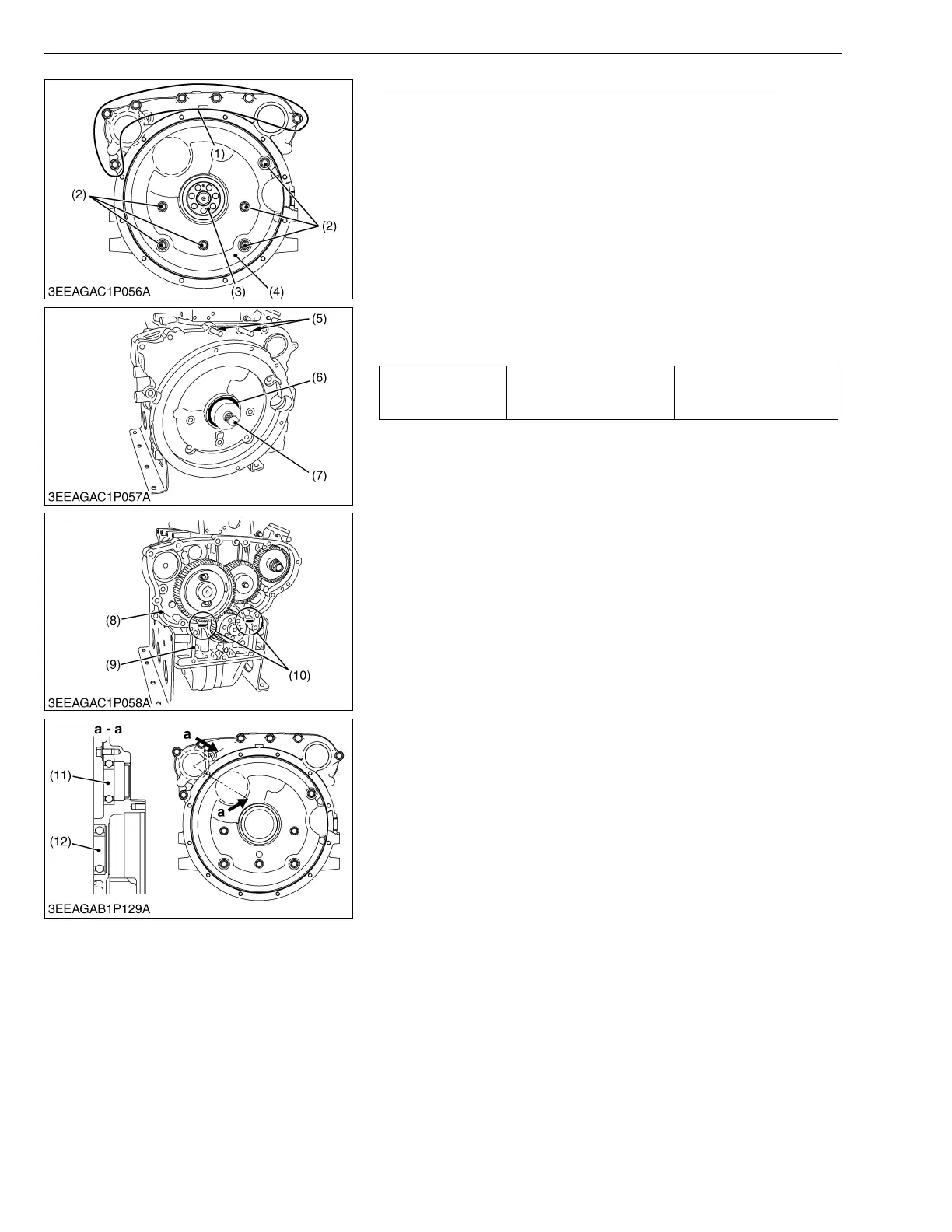

Flywheel Housing (for V2607-DI-E3B / V2607-DI-T-E3B)
1. Remove the outside flywheel housing mounting screws (1).
2. Remove the inside flywheel housing mounting screws (2).
3. Remove the flywheel housing (4).
(When reassembling)
• Apply engine oil to the flywheel housing oil seal (6).
• Set the flywheel guide screws (5) and the flywheel housing guide
jig (7) to the crankshaft gear (3). (Refer to “5. SPECIAL TOOLS”
at “GENERAL” section.)
• Apply a liquid gasket (Three Bond 1217H or equivalent) (10) to
the seam between crankcase 1 (8) and crankcase 2 (9), and set
gasket.
• Assemble the adhesive-applied parts within ten minutes.
• Confirm that the bearing 1 (11) and the bearing 2 (12) set in
position.
W1231029
Tightening torque
Flywheel housing
mounting screw
78 to 90 N·m
7.9 to 9.2 kgf·m
58 to 66 lbf·ft
(1) Flywheel Housing Mounting Screw
(Outside)
(2) Flywheel Housing Mounting Screw
(Inside)
(3) Crankshaft Gear
(4) Flywheel Housing
(5) Flywheel Guide Screw
(6) Oil Seal
(7) Jig
(8) Crankcase 1
(9) Crankcase 2
(10) Liquid Gasket
(11) Bearing 1
(12) Bearing 2
To Next Page
