S-101
07-E3B SERIES, WSM
ENGINE

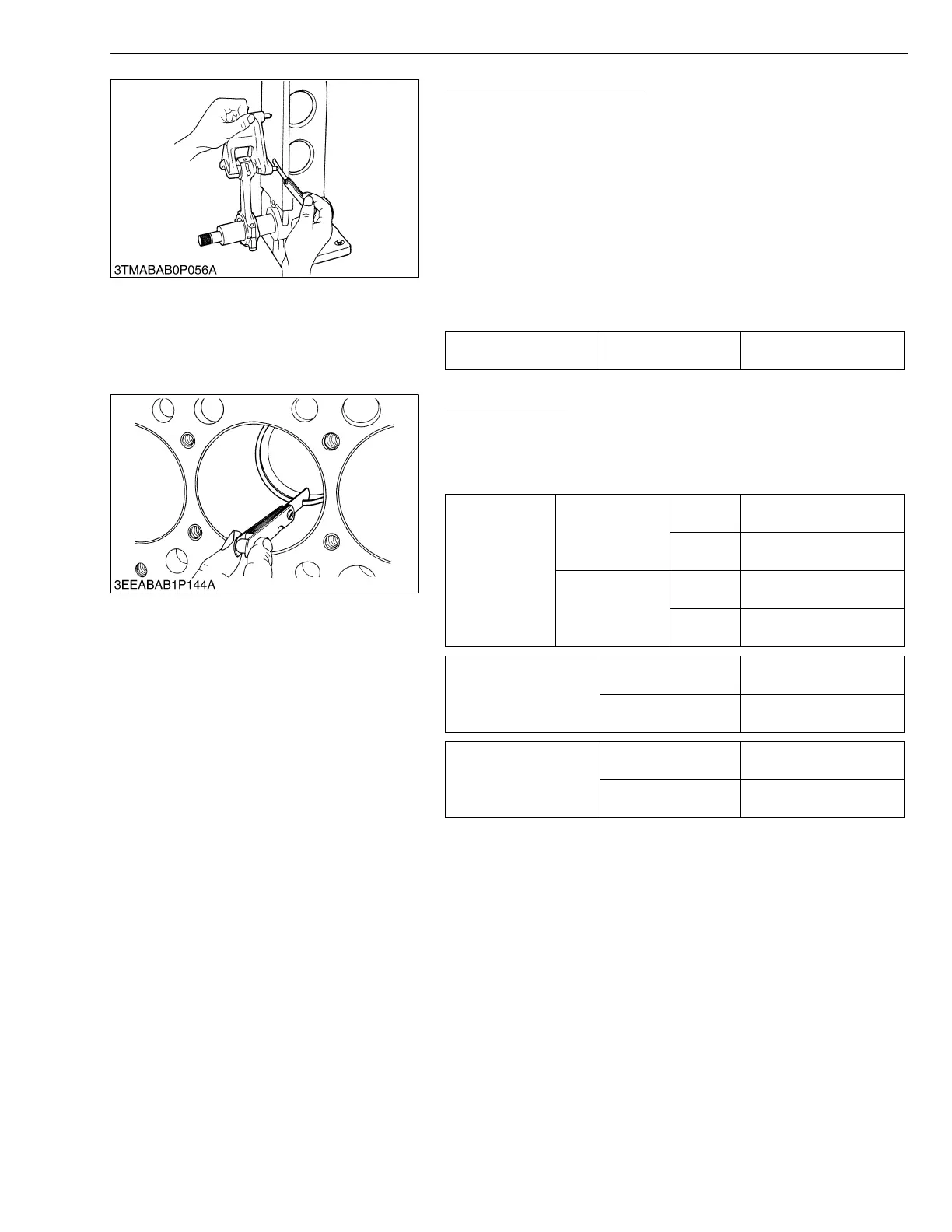

Connecting Rod Alignment
NOTE
• Since the I.D. of the connecting rod small end bushing is the
basis of this check, check the bushing for wear beforehand.
1. Remove the piston pin from the piston.
2. Install the piston pin in the connecting rod.
3. Install the connecting rod on the connecting rod alignment tool.
4. Put a gauge over the piston pin, and move it against the face
plate.
5. If the gauge does not fit squarely against the face plate, measure
the space between the pin of the gauge and the face plate.
6. If the measurement exceeds the allowable limit, replace the
connecting rod.
W1066581
Piston Ring Gap
1. Insert the piston ring into the lower part of the liner (the least worn
part) with the piston.
2. Measure the ring gap with a feeler gauge.
3. If the gap exceeds the allowable limit, replace the piston ring.
W1066430
Connecting rod
alignment
Allowable limit
0.05 mm
0.002 in.
Top ring
V2607-DI-E3B
V2607-DI-T-E3B
Factory
spec.
0.20 to 0.35 mm
0.0079 to 0.013 in.
Allowable
limit
1.25 mm
0.0492 in.
V3007-DI-T-E3B
V3307-DI-T-E3B
Factory
spec.
0.25 to 0.40 mm
0.0099 to 0.015 in.
Allowable
limit
1.25 mm
0.0492 in.
Second ring
Factory spec.
0.30 to 0.45 mm
0.012 to 0.017 in.
Allowable limit
1.25 mm
0.0492 in.
Oil ring
Factory spec.
0.25 to 0.45 mm
0.0099 to 0.017 in.
Allowable limit
1.25 mm
0.0492 in.
KiSC issued 06, 2020 A
