22 / 125 Issued: 16.03.2016 Version: MA KR 300 470-2 PA V5
KR 300-2 PA, KR 470-2 PA
4.6 Plates and labels
Plates and labels The following plates and labels are attached to the robot. They must not be re-
moved or rendered illegible. Illegible plates and labels must be replaced.

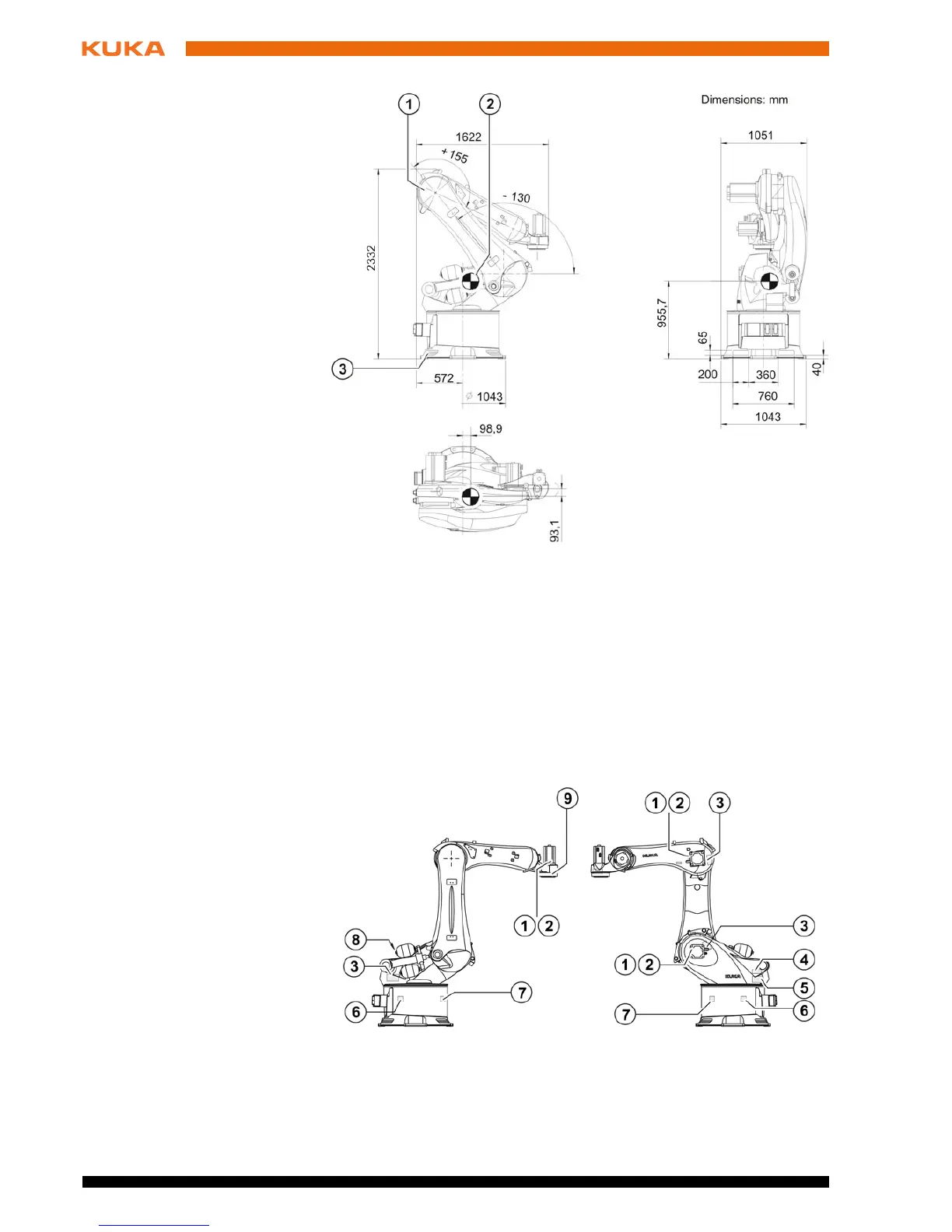

Fig. 4-8: Transport dimensions
1 Robot
2 Center of gravity
3 Fork slots
Fig. 4-9: Location of plates and labels
