52
Check the solenoid for the manual override. If the solenoid has a manual override you can
push each of the buttons one at a time. When the air leak stops or weakens it usually means
that one or more of the cylinders that the solenoid is operating are faulty.

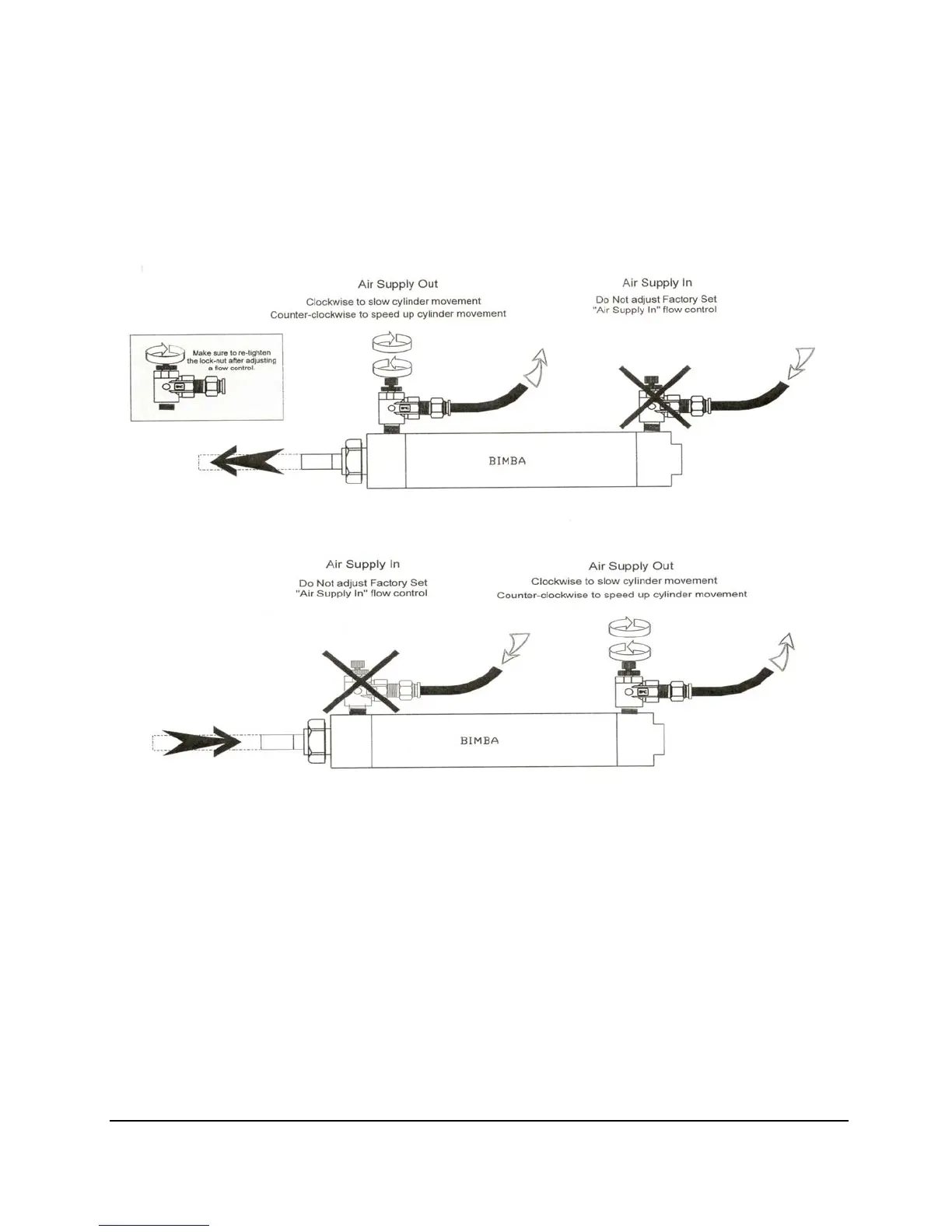

Adjusting the flow controls to change the cylinder extension speed is done by the following drawing.
Please review this drawing as this adjustment is not done in a normal manner.
To change cylinder extension speed:
To change cylinder retraction speed:
