Determine the necessary type of RF cables and
connectors you need for any RF cables that are
required in addition to what is supplied in the
antenna kit (see Figure 9 and Figure 17 on
page 11). Then follow the guidelines below to
prepare the cables.
Note: LMR-400-75 is a suitable substitute.
Up to 100 ft (30 m) Cable Run
Cable RG-6
(KVH part no. 32-0417-0100)
Connector Belden SNS1P6
(KVH part no. 23-0170)
Tools Augat IT1000
(KVH part no. 19-0242)
Strip
Lengths
Up to 200 ft (60 m) Cable Run
Cable RG-11
(KVH part no. 32-1272-0200)
Connector Belden SNS11AS
(KVH part no. 23-0213)
Tools Belden CST596711,
L3011B (KVH part no. 72-0493)
Strip
Lengths
0.25" (6.35 mm)
0.5" (12.7 mm)
0.04" (1.02 mm) dia.
0.25" (6.35 mm)
0.5" (12.7 mm)
0.064" (1.63 mm) dia.

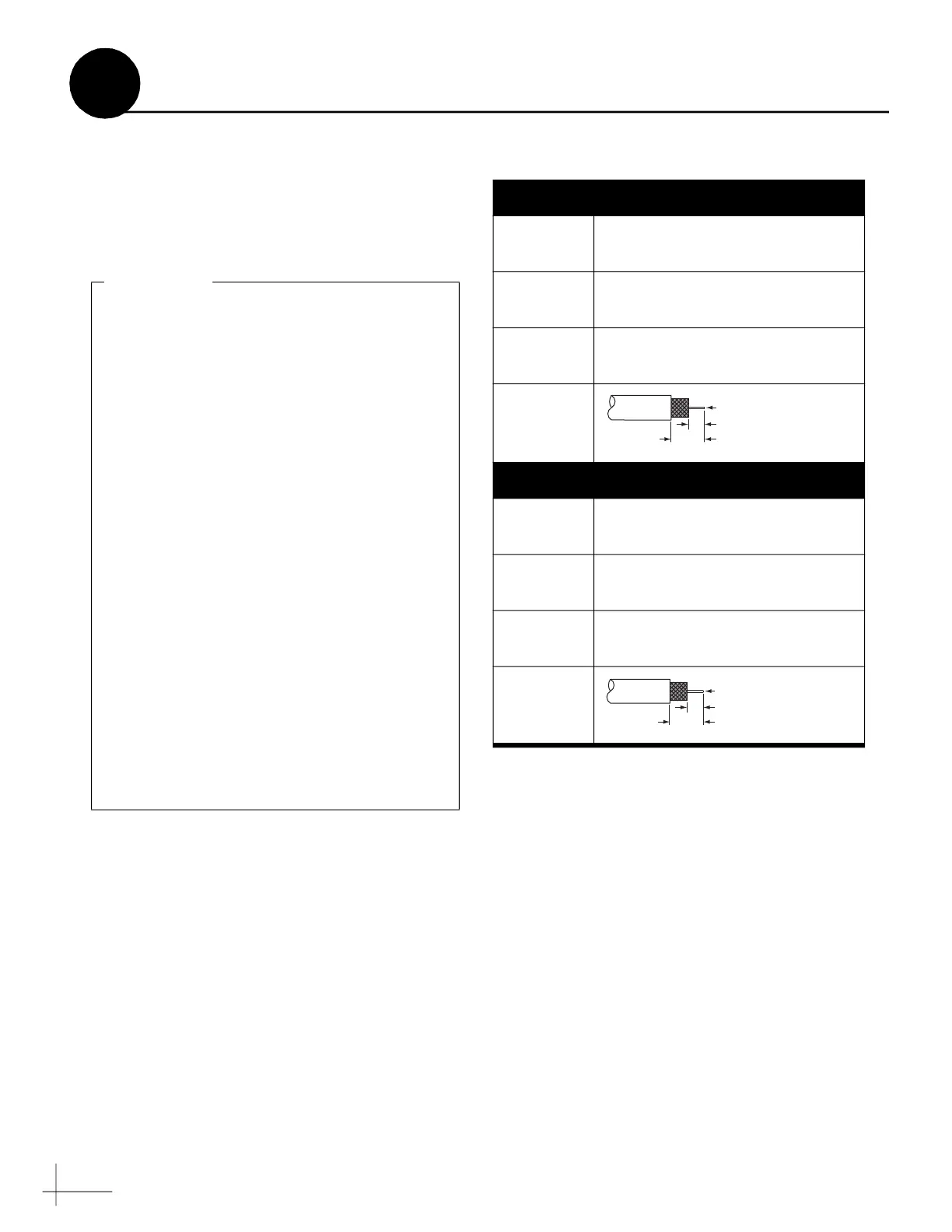

Figure 9: RF Cable Requirements
Do not reuse old RF cables from a
previous antenna installation. The RF1
cable between the TV-Hub and the
antenna carries not only satellite signal,
but power and data as well. Therefore, the
integrity and reliability of this cable is
critically important.
RF cables must be rated for 75not 50
Use of any cables not specified in Figure 9
will void the warranty.
Low-quality, poorly terminated, or
improperly installed RF cables are the
most common cause of system problems.
Terminate all RF cables with high-quality
“F” connectors using the proper
stripping/crimping tools, exactly to the
manufacturer’s specifications.
When determining cable lengths, be sure
to account for an adequate service loop,
approximately 8" (20 cm) at both ends of
each cable.
IMPORTANT!
Prepare the RF Cables
5
