Before you begin, follow these steps to ensure you
have everything needed to complete the
installation.
a. Unpack the box and ensure it contains
everything shown on the Kitpack Contents
List. Save the packaging for future use.
b. Carefully examine all of the supplied parts to
ensure nothing was damaged in shipment.
c. Gather the tools and materials listed below.
You will need these items to complete the
installation.
• Flat-head and Phillips-head screwdrivers
• Electric drill and 1/2" (13 mm) and 1/8"
(3 mm) drill bits
• 3" (80 mm) hole saw
• 7/16" open-end torque wrench set to
20 in.-lbs (2.25 N-m)
• 7/16" open-end torque wrench set to
15 in.-lbs (1.7 N-m)
• Socket wrenches
• Light hammer and center punch
• Adhesive tape and scriber or pencil
• RG-6 or RG-11 RF coax cables, with “F”
connectors, and termination tools (see page 8)
• Silicone sealant or equivalent
• Additional SWM splitters, as required
• Satellite TV receiver(s)/DVR(s) for your
desired service (see Figure 2)
• Multimeter
• Wi-Fi-enabled laptop PC Apple
®
iOS or
Android
™
smartphone/tablet with the
KVH TracVision TV-series/UHD7/RV1/
A9 app, and the latest software and satellite
library downloaded
Always lift the antenna by the baseplate or
the hoist holes in the internal frame, and
never by the radome or any other portion of
the internal antenna assembly (see Figure 1).
Antenna
TV-Hub
Radome
Baseplate

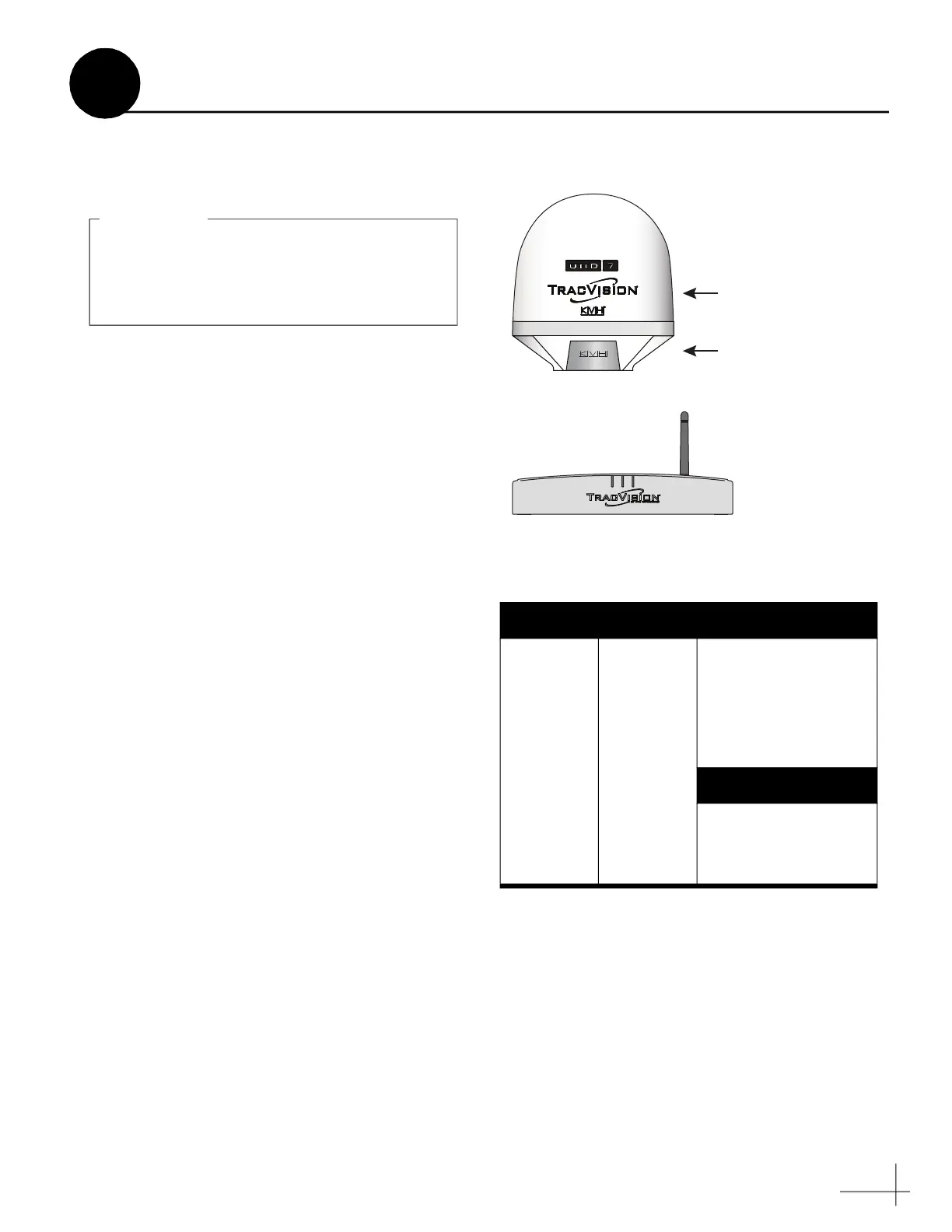

Figure 1: TracVision UHD7 System Components
Figure 2: KVH-Validated Receivers
* List is subject to change. For information on connecting
different receiver models, contact KVH Technical Support.
DIRECTV*
DISH Network*
H20
H21
H22
H23
H24
H25
H44
HR21
HR21 Pro
HR22
HR23
HR24
HR34
HR44
HR54
311
211
211k
211z
Wally
Bell TV*
6100
6131
6400
