5
• Make sure the mounting surface is wide
enough to accommodate the antenna’s base
(see Figure 5). Also make sure it is flat, level
(within ±1°), strong enough to support the
antenna’s weight (approx. 93.5 lbs, 42.3 kg),
and rigid enough to prevent antenna
vibration.
• Select a location that is as close as possible to
the intersection of the vessel’s fore-and-aft
centerline and midships.
• Be sure to mount the antenna near enough to
the TV-Hub to allow you to connect the 100 ft
(30 m) coax cables between them, while still
maintaining sufficient service loops in the
cables.
NOTE: If you need to use a longer cable, use a RG-11
(75 ) cable that does not exceed 200 ft (60 m) in
length (see “Prepare the RF Cables” on page 8).

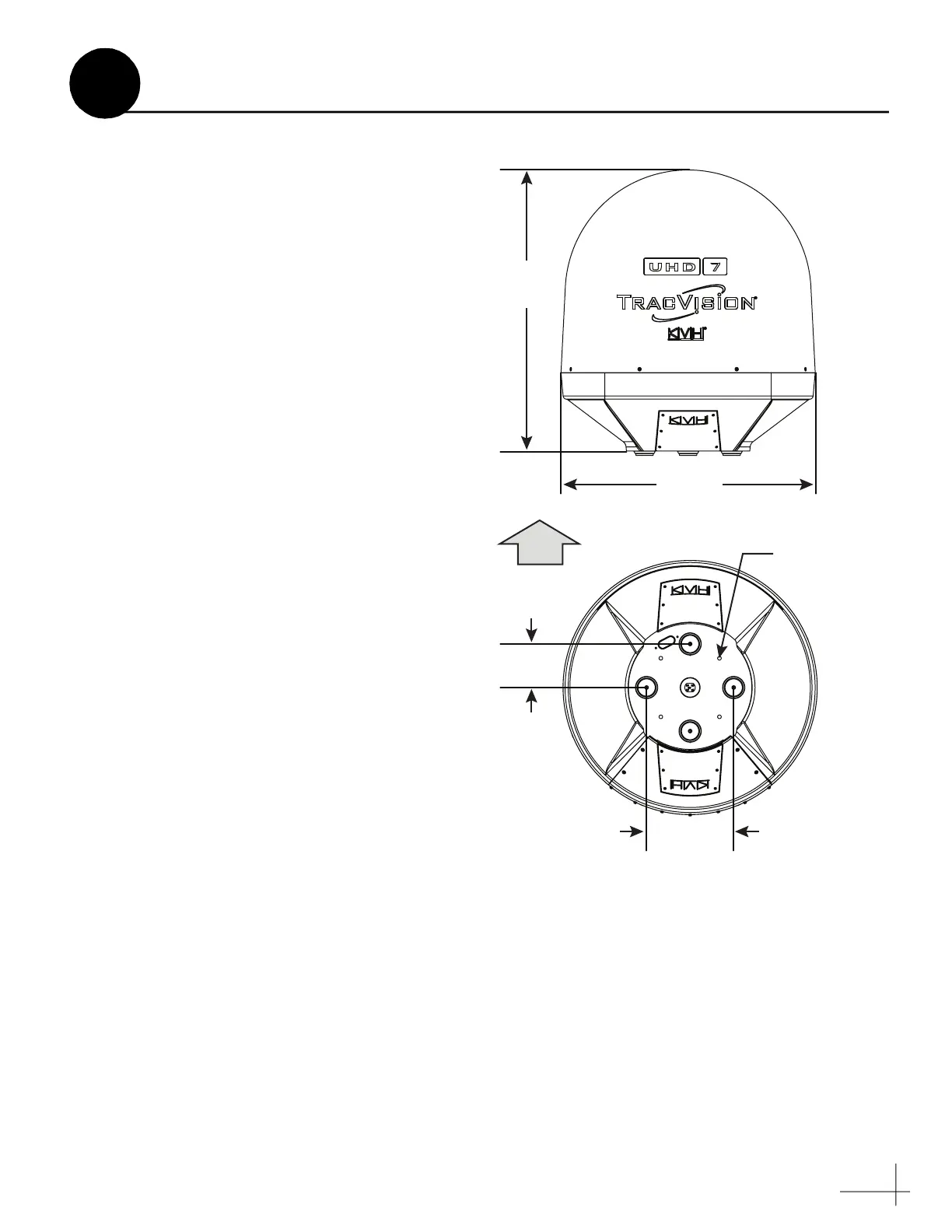

Figure 5: Antenna Dimensions
39.33"
(98.9 cm)
35.02"
[90 cm]
6.0"
(15.2 cm)
M10 X 1.5 mm
Threaded Insert (x4)
12.0"
(30.5 cm)
FWD
Continued Plan the Antenna Installation
