Kwikset 264 - Step 4: Exterior Assembly Installation; Connect Cylinder and Cable; Secure Exterior Mounting Plate; Test Latch Smoothness

5 / 10 © 2016 Spectrum Brands, Inc.Kwikset: 1-800-327-5625 • www.kwikset.com
4

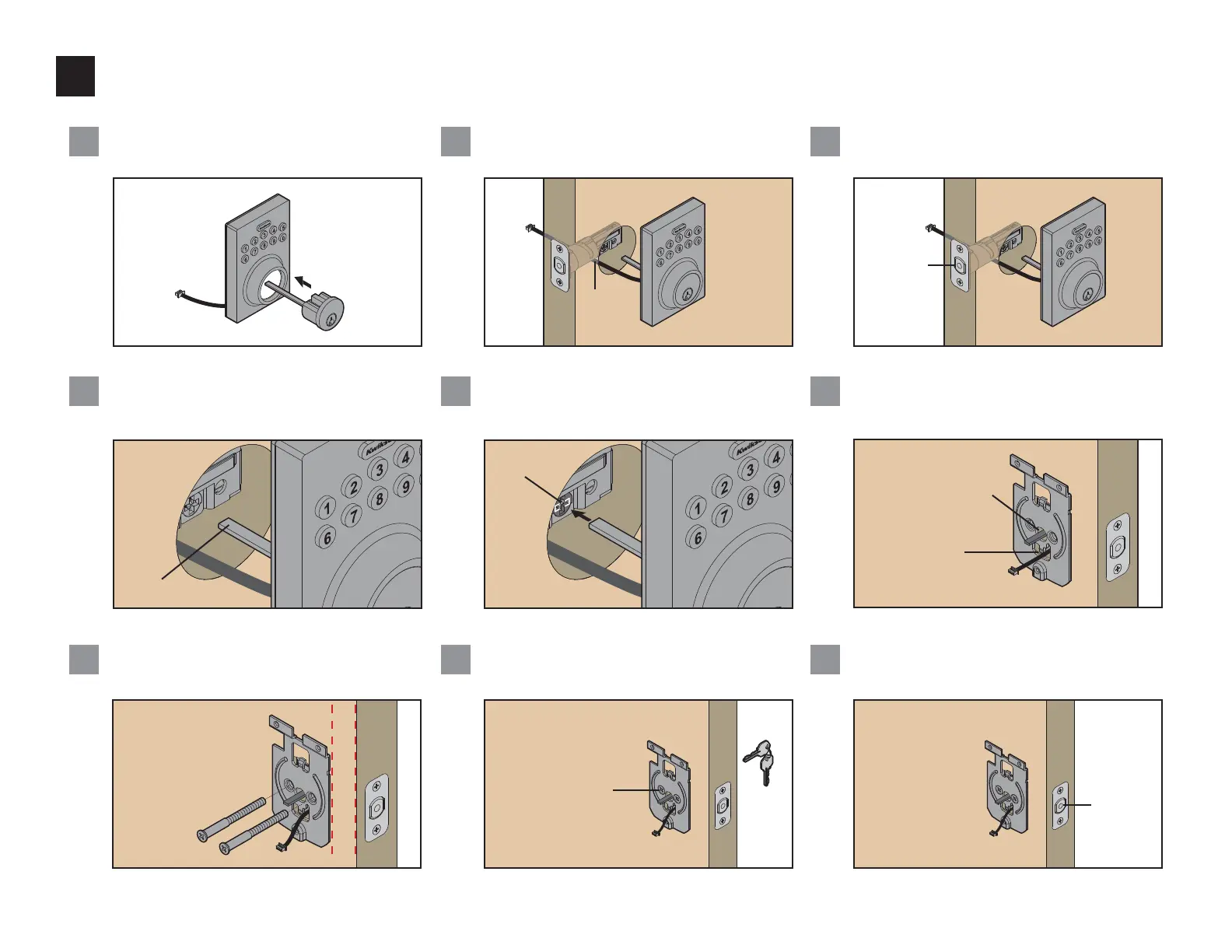

Install the exterior assembly
Install the cylinder into the exterior
assembly.
A
IMPORTANT: Make sure the torque
blade is in the horizontal position.
D
Secure the mounting plate with the
supplied screws.
G
Insert the torque blade through the
horizontal slot of the cross-shaped hole.
E
Insert the key and test the latch for
smooth operation.
H
Remove the key and make sure the latch
bolt is still in the unlocked position.
I
Push the torque blade through the center
hole in the mounting plate and send the
cable through the bottom hole.
F
Route the cable below the latch.
B
IMPORTANT: Make sure the latch is fully
retracted (in the unlocked position).
C
cable
exterior side
of door
horizontal
horizontal
slot
unlocked
unlocked
torque blade in
center hole
cable in
bottom hole
interior side of door
Keep
parallel to
door edge.
If latch does
not operate
smoothly,
adjust screws.
D
G
F
M (2x)
E
