Kwikset 264 - Step 5: Interior Assembly Installation; Install Interior Assembly and Batteries; Test Interior Turnpiece Functionality; Secure Interior Assembly to Door

6 / 10 © 2016 Spectrum Brands, Inc.Kwikset: 1-800-327-5625 • www.kwikset.com
5

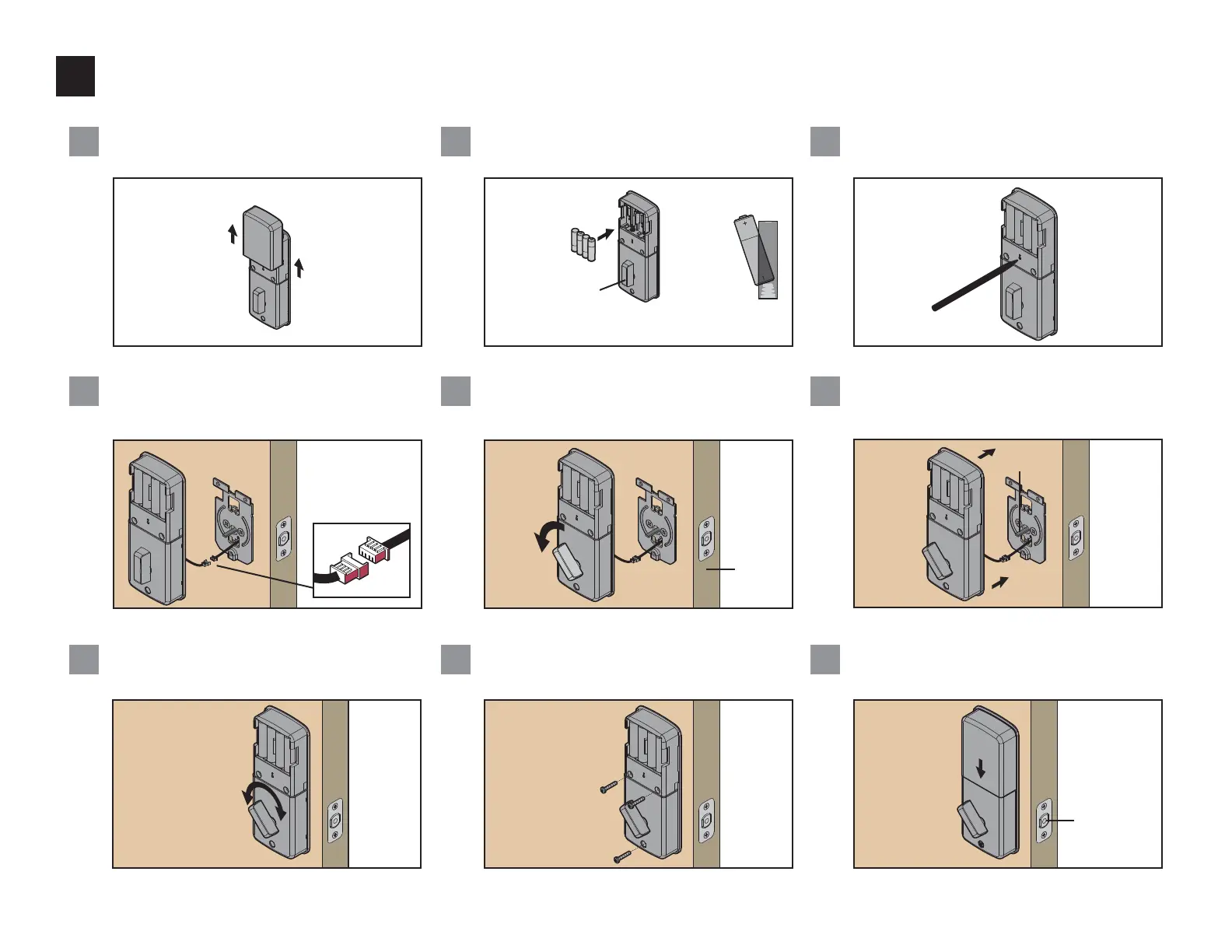

Install interior assembly
Remove the battery cover.
A
Align the colored edges of the connectors
and ensure a tight cable connection.
D
Test the turnpiece for smooth rotation.
G
IMPORTANT: Rotate the turnpiece
AWAY from the door edge.
E
Secure the interior assembly with the
supplied screws.
H
Reinstall battery cover and make sure the latch is still in
the unlocked position.
I
Make sure the torque blade is still in the horizontal
position and install the interior assembly.
F
Load 4 AA batteries into the interior assembly. For best
results, use new, non-rechargeable Alkaline batteries only.
B
Press and hold the Reset button on the interior
assembly for 5 seconds, until you hear 3 beeps.
C
unlocked
Ensure correct
polarity.
If turnpiece
doesn’t rotate,
repeat steps 5E
and 5F, making
sure to rotate
the turnpiece
AWAY from the
door edge.
horizontal
door
edge
Note: Turnpiece
may move
on its own.
45°
H
L (3x)
J
J
