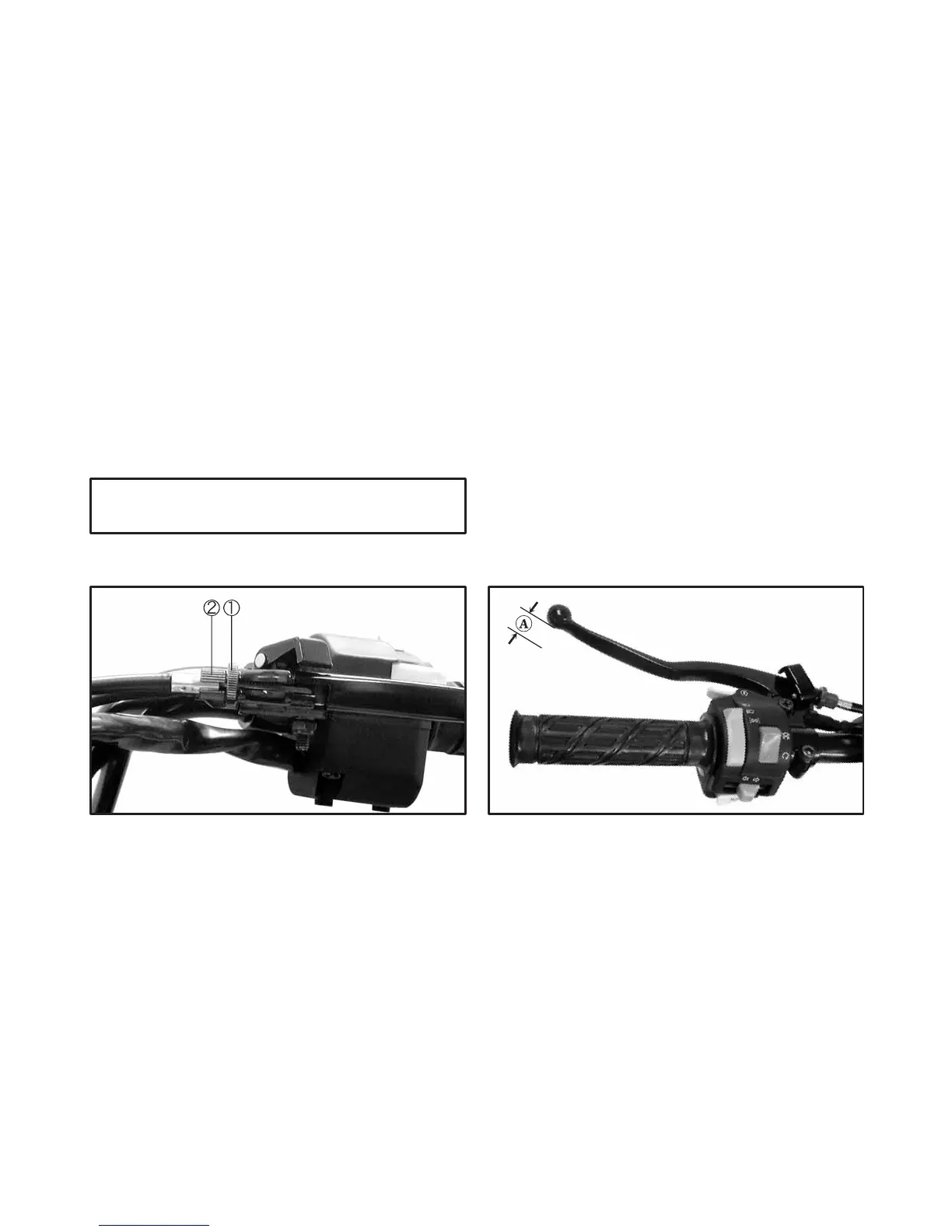

A. 10~20 mm (0.4~0.8 in)1. Locknut 2. Adjusting bolt

Rear brake adjustment (only MX'er

150/125)

1. Loosen the locknut.

2. Turn the adjusting bolt until specified free

play is obtained.

3. Tighten the locknut.

Specified free play:

10~20 mm (0.4~0.8 in)

104
