Tire wear limit

When the tire groove decreases to 3 mm (0.12

in) due to wear, replace the tire.

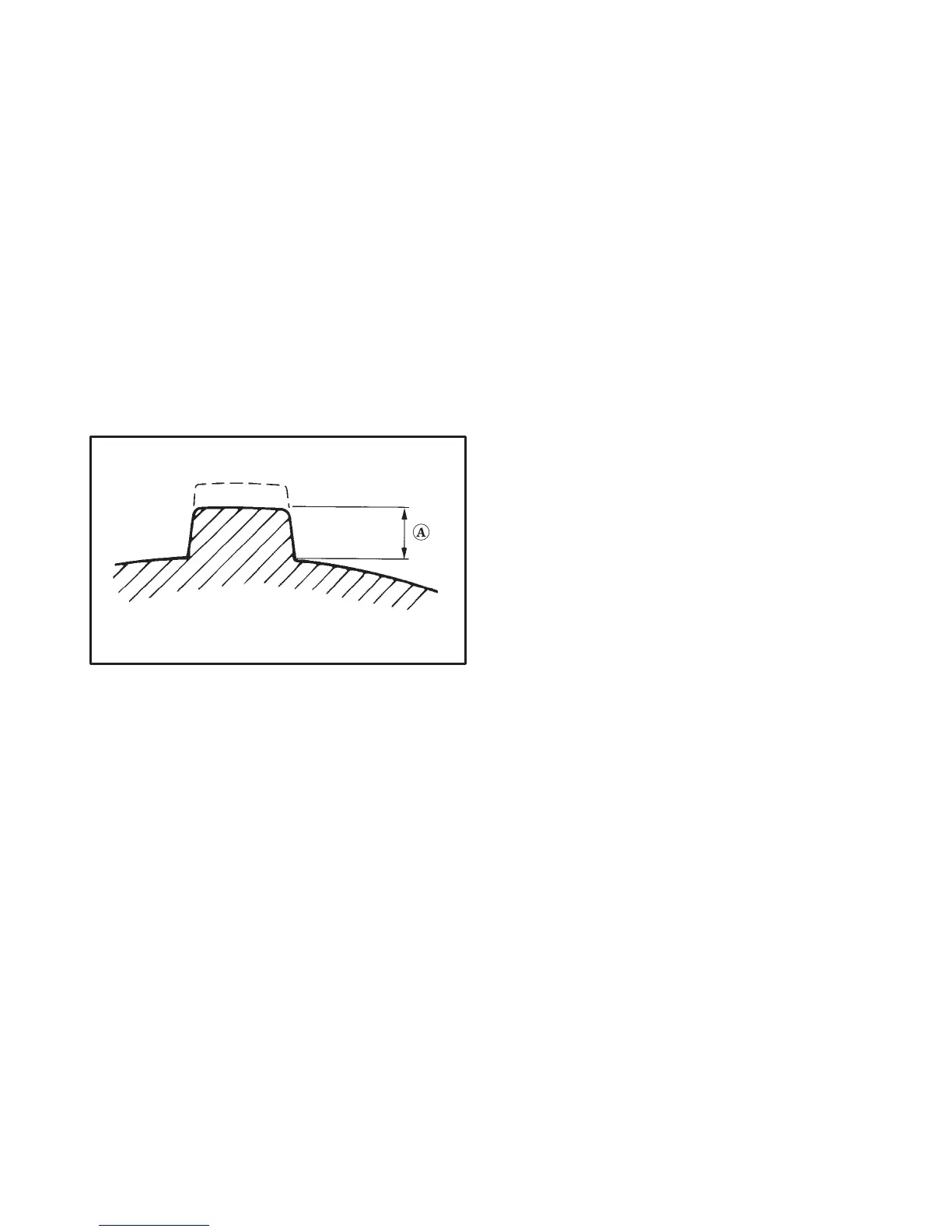

A. 3mm (0.12 in)
