1. Keep front brake lever free play at 10~20
mm (0.4~0.8 in).
2. Loosen the locknut.
3. Turn the adjusting bolt until the front
lower brake cable is tensed.
4. Apply the front brake lever and check front
bake cam lever to make sure that the brake
does not drag after adjusting.
5. Tighten the locknut.
6. Turn the adjusting nut on the brake cam
lever in direction to decrease play, and
in direction to increase play.
7. Turn the adjusting nut until specified free
Play is obtained.

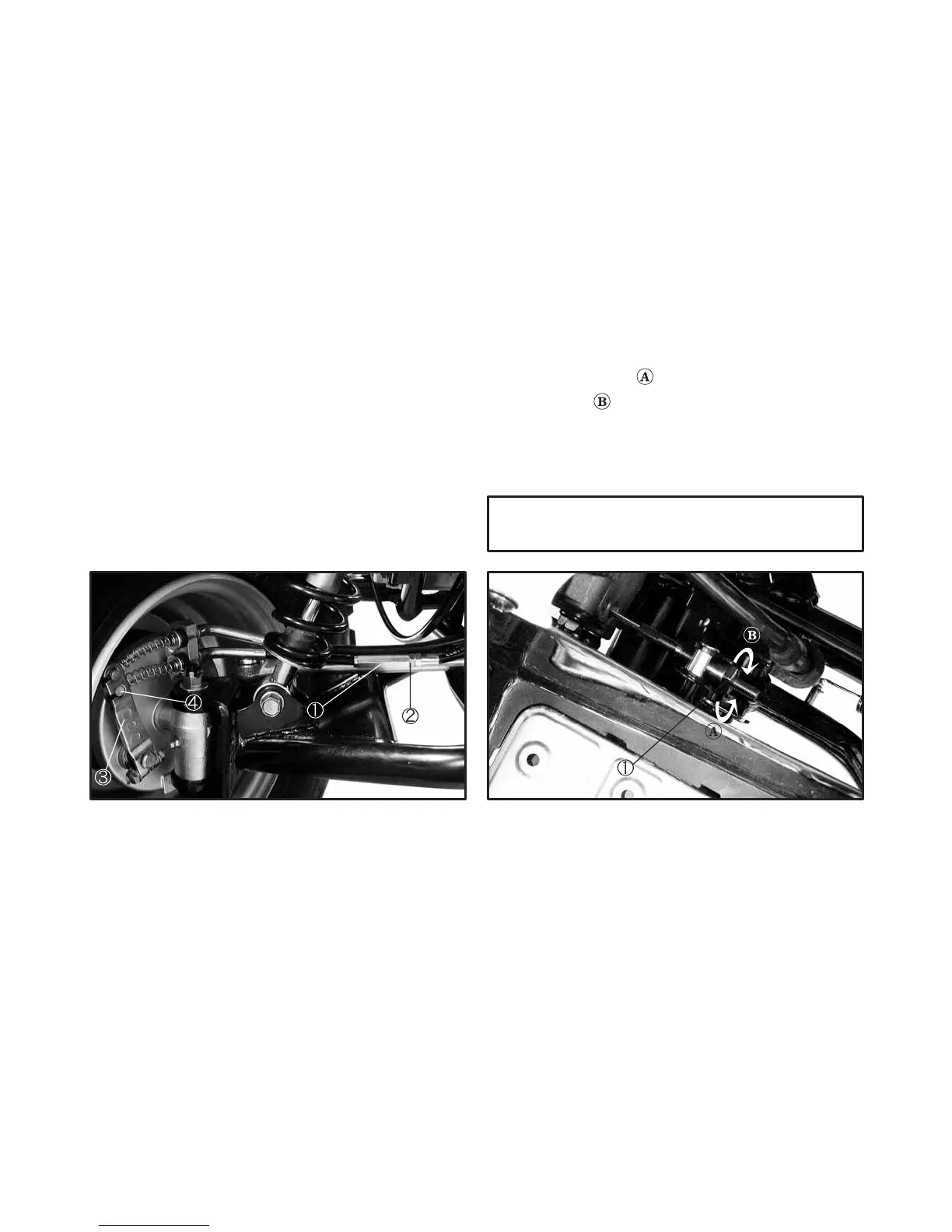

1. Adjusting nut1. Adjusting bolt 2. Locknut 3. Brake cam lever
4. Front lower brake cable
Specified free play:
10~20 mm (0.4~0.8 in)
