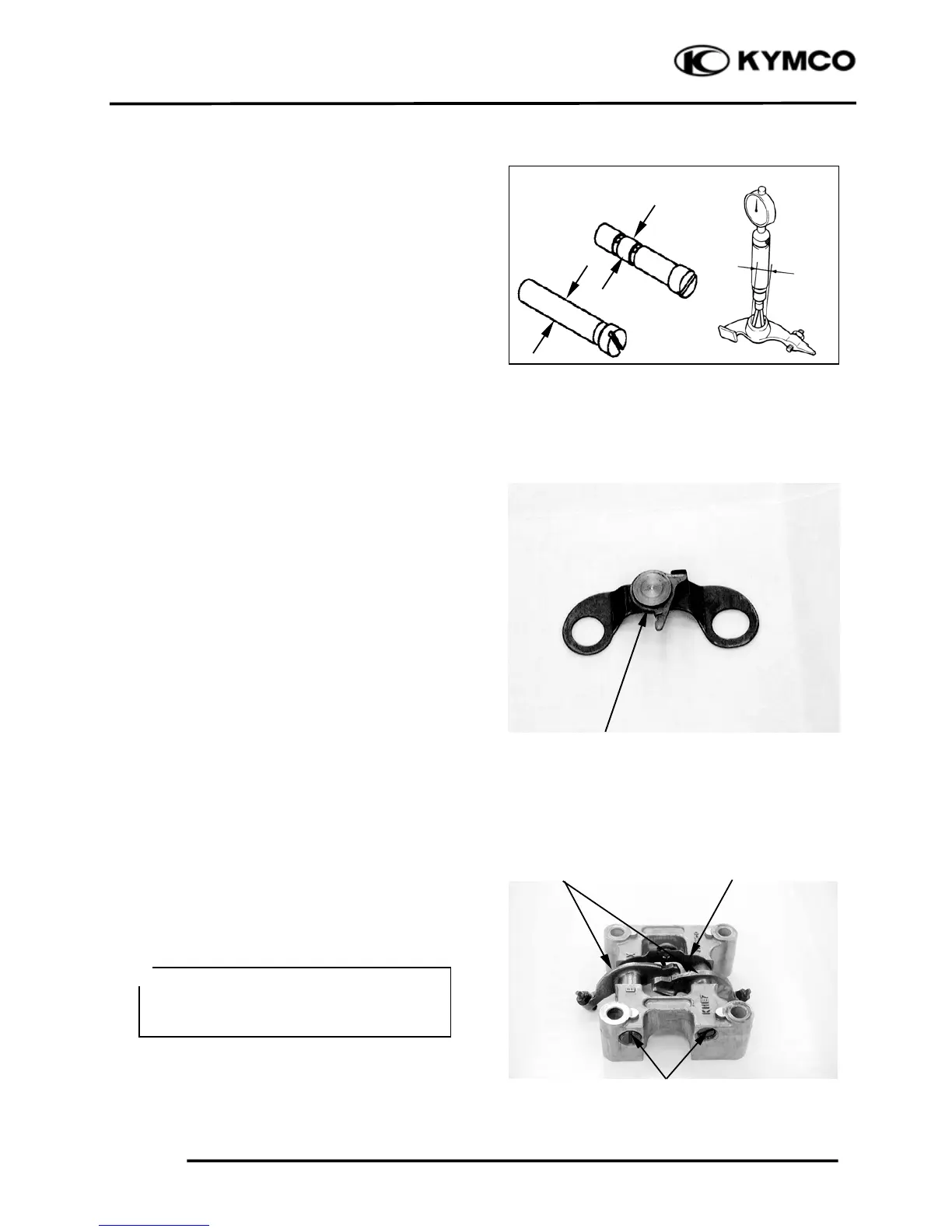

Measure each rocker arm shaft O.D.
Measure the I.D. of each valve rocker arm.
Measure arm to shaft clearance.
Replace as a set if out of specification.
Service limits: 0.1 mm (0.004 in)
Check the stop plate spring for damage.
Replace the stop plate assembly with a new
one if the spring is damage.
CAMSHAFT HOLDER ASSEMBLY
Reverse the “CAMSHAFT HOLDER
DISASSEMBLY” procedures.
Sto
p
Plate
Rocker Ar
m
s
Rocker Arm Shafts
Align the cross cutout on the exhaust
valve rocker arm shaft with the bolt of
the camshaft holder.
＊
Spring
