3. INSPECTION/ADJUSTMENT
3-26
MXU 300/250
SPARK ARRESTER CLEANING
(OFF ROAD)
Be sure the exhaust pipe and muffler are
cool before cleaning the spark arrester.

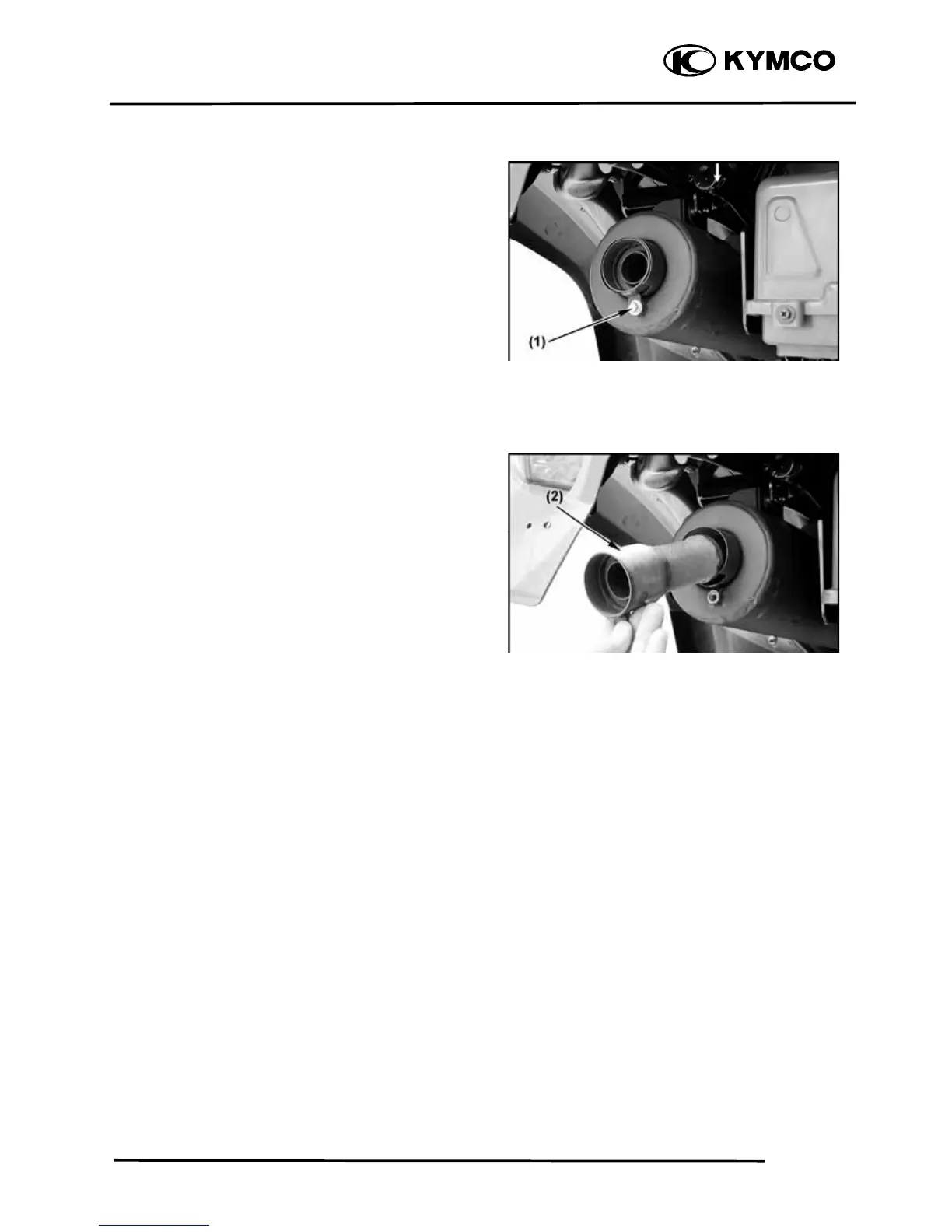

1. Remove the bolt (1).
2. Remove the tailpipe (2) by pulling it out
of the muffler.
3. Tap the tailpipe lightly, then use a wire
brush to remove any carbon deposits
from the spark arrester portion of the
tailpipe.
4. Insert the tailpipe into the muffler and
align the screw holes.
5. Install the bolt and tighten it.
