KYMCO MXU 300 - SWINGARM (MXU 250)

15. REAR WHEEL/AXLE/SUSPENSION/
DRIVING MECHANISM
15-16
MXU 300/250
INSTALLATION

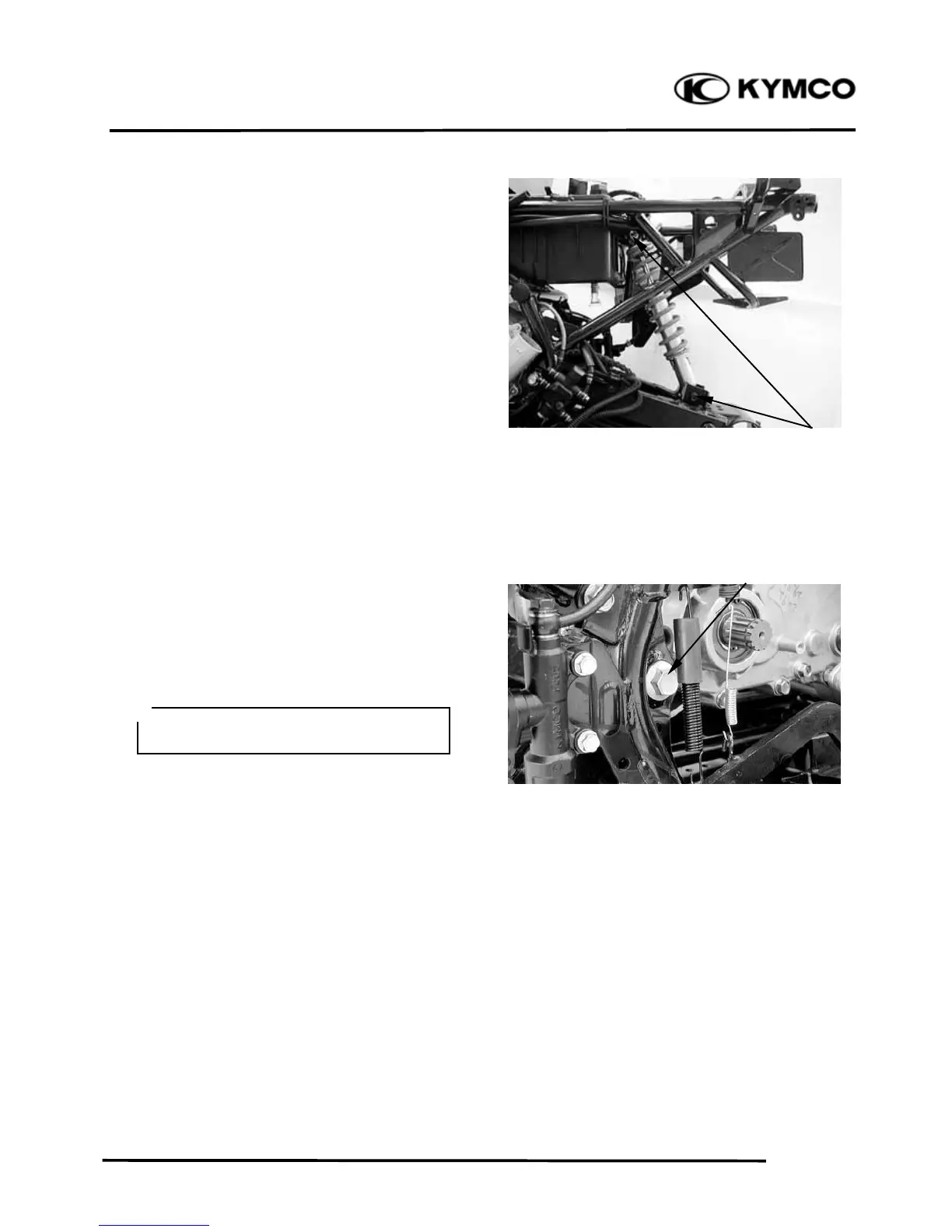

Install the shock absorber and tightening the
bolts/nuts.
Torque: 4 kgf-m (40 Nm, 29 lbf-ft)
SWINGARM (MXU 250)
REMOVAL AND INSPECTION
Place the machine on a level place.
Elevate the rear wheels by placing a suitable
stand under the rear of frame.
Remove the rear wheels, rear axle and rear
hub.
Refer to the “REAR AXLE HUB (MXU
250) REMOVAL AND INSPECTION”
section in chapter 15.
Remove the rear shock absorber (page 15-
15).
Check the tightening torque of the pivot bolt
(swingarm) securing nut.
Torque: 7 kgf-m (70 Nm, 50 lbf-ft)
Pivot bol
t
Bolts/Nuts
Support the machine securely so there is
no dan
g
er of it fallin
g
over.
＊
