6. ENGINE REMOVAL
6-4
MXU 300/ 250

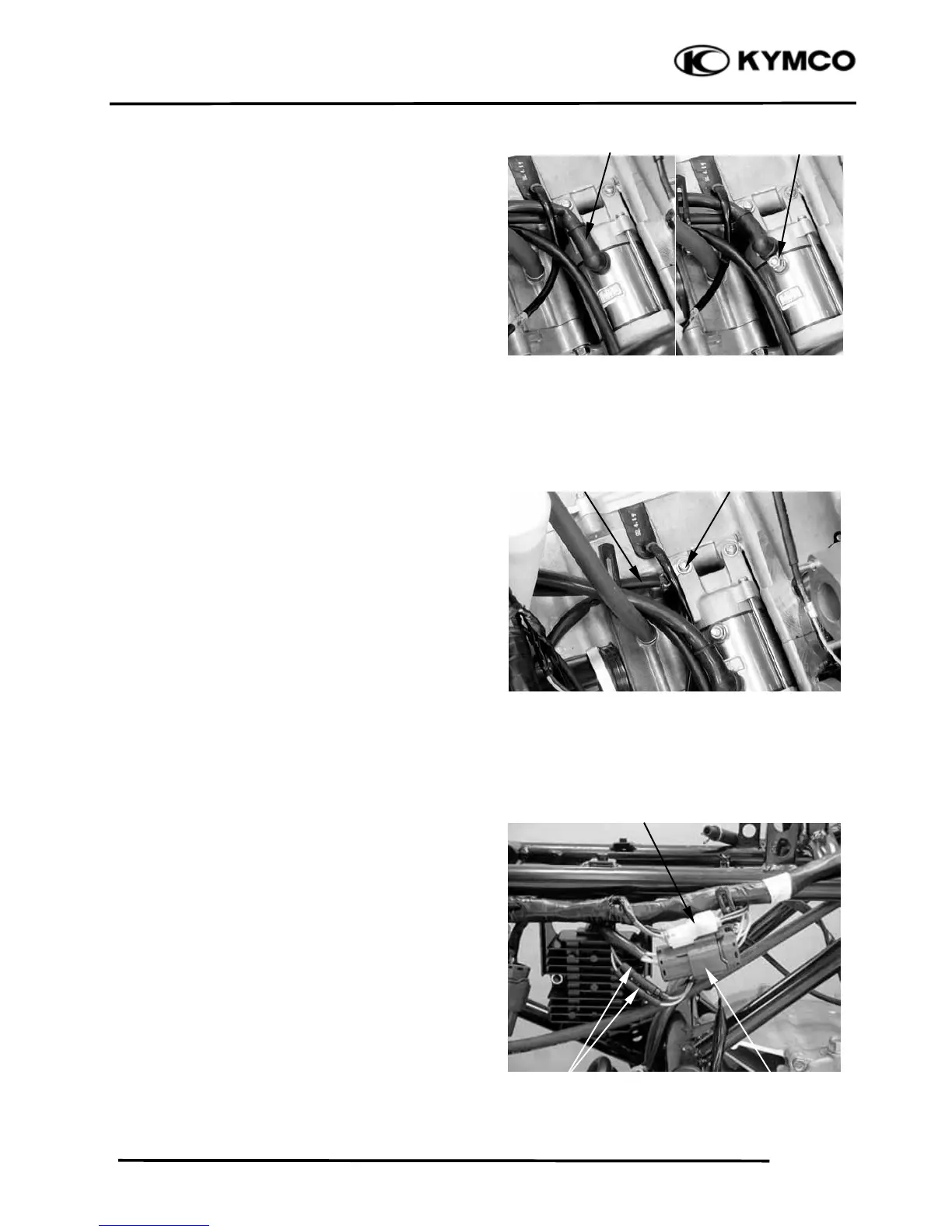

Slide the rubber sleeve back to expose the
starter motor wire nut.
Remove the starter motor wire nut for
disconnect the starter motor wire.
Remove the bolt at the starter motor for
disconnect the ground wire lead.
Remove the A.C.Generator, ignition pulse
generator and gear change switch
connectors.
Rubber Sleeve
N
u
t
Bol
t
Ground Wire
Gear Change Switch
Connectors
A.C.Generator Connecto
r
Ignition Pulse Generator Connecto
r
