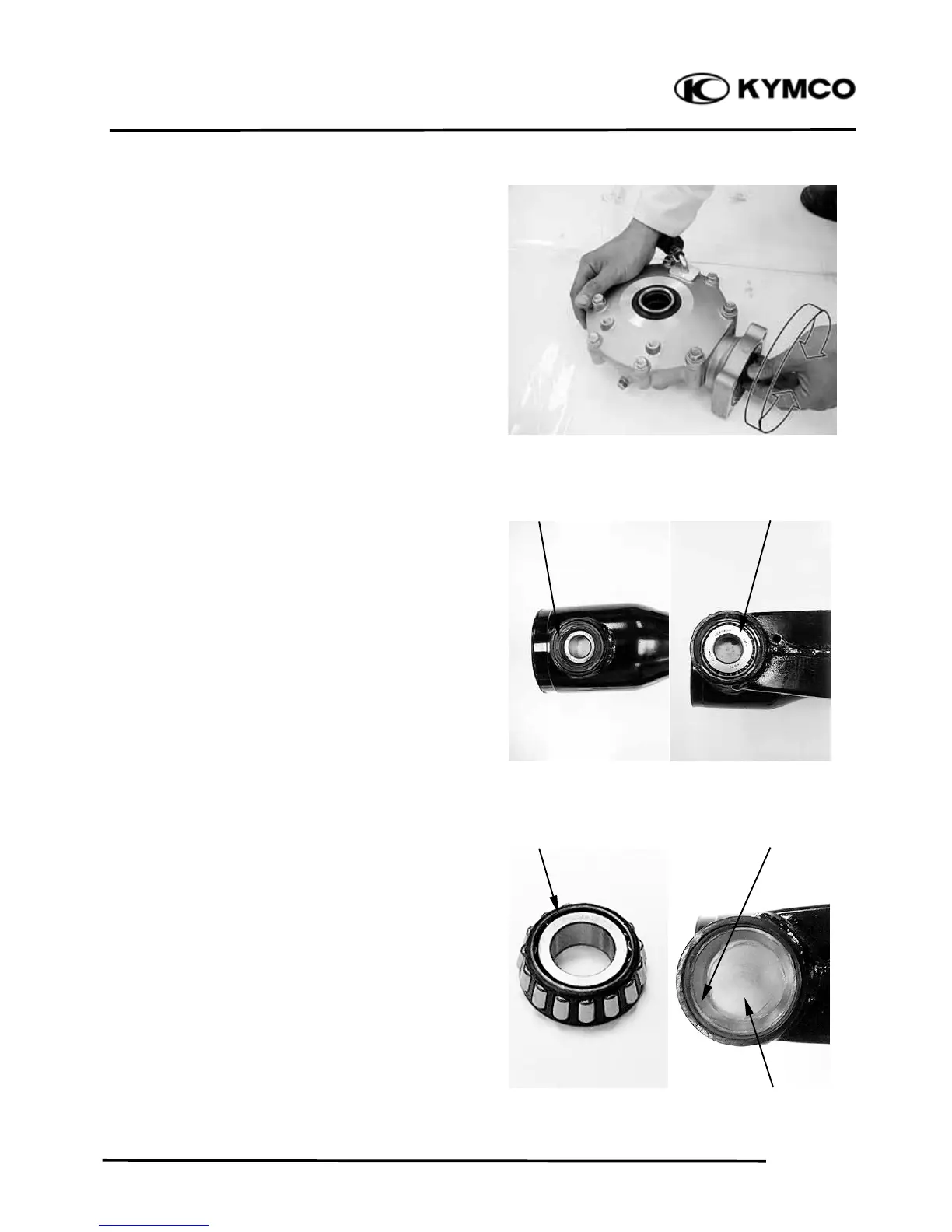

Make sure that the gear assembly rotates
smoothly without binding.
SWINGARM (MXU 300)
SWINGARM INSPECTION/BEARING
REPLACEMENT
Inspect the dust seal for wear or damage.
If any damages are found, replace them with
new ones.
Remove the dust seals.
Remove the swingarm bearing.
Inspect the swingarm bearing, outer race
and bearing plate, if any damages are found,
replace the swingarm bearing with a new
one.
Dust Seal Bearing
Bearing Outer Race
Bearing Plate
