15. REAR WHEEL/AXLE/SUSPENSION
DRIVING MECHANISM
15-39
MXU 300/250

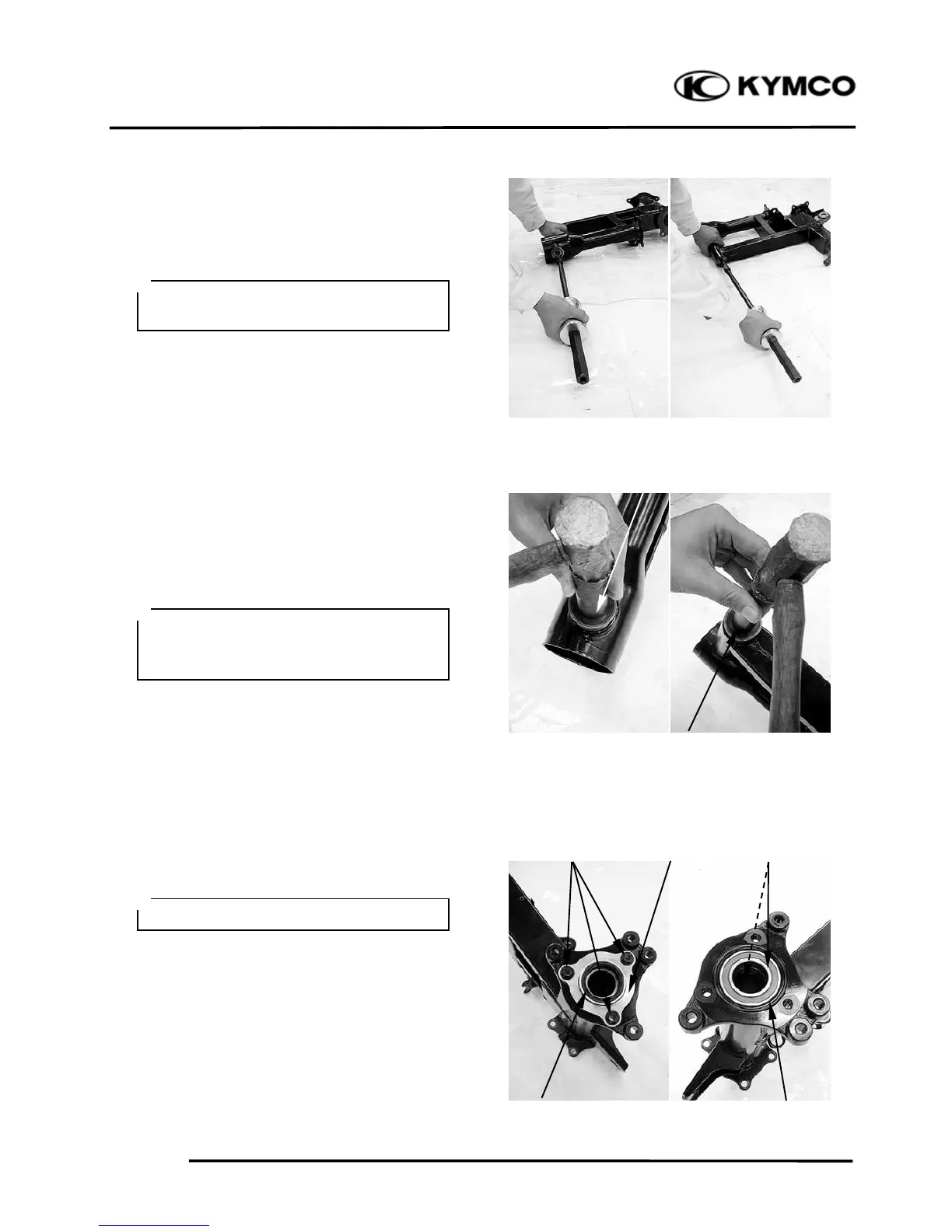

Remove the swingarm bearing race and
bearing plate by using the special tool.
Special tool: Bearing puller E037
Install the new swingarm bearing race and
its new plate to the swingarm by using the
special tool.
Special tool:
Oil seal & bearing installer E014
Apply grease to the swingarm bearing and
lips of dust seals, then install them into the
swingarm with the special tool.
Special tool:
Oil seal & bearing installer E014
Remove the three bolts and dust plate.
Remove the O-ring.
Bolts Dust Plate Bearings
Dust Seal O-ring
The removed bearing and dust seal must
be replaced with new ones.
＊
Bearing Plate/Bearing Race
When installing the bearing plate, make
sure that the bulge of bearing plate faces
inside.
＊
Bearing/Dust Seal
Check the dust seal for wear or damage.
＊
