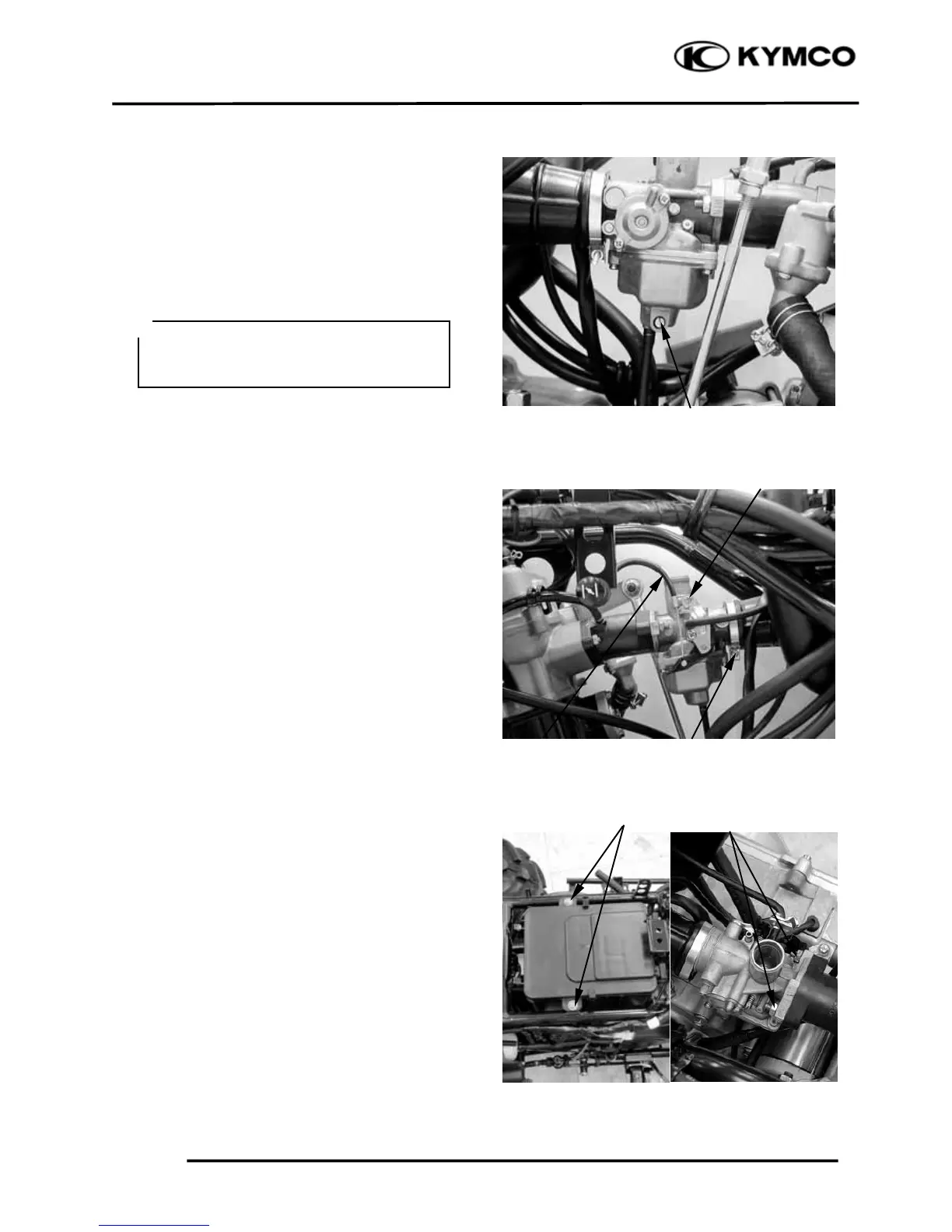

KYMCO MXU 300 - CARBURETOR

5. FUEL SYSTEM
5-9
MXU 300/250
CARBURETOR
REMOVAL
Remove the fuel tank and carburetor cap.
(Refer to “FUEL TANK” and “THROTTLE
VALVE DISASSEMBLY” section in the
chapter 5)
Loosen the drain screw to drain the gasoline
from the float chamber.
Loosen the screw on the lock plate for
disconnect the choke cable
Loosen the air cleaner connecting tube band
screw.
.
Remove the two bolts at the air cleaner case.
Disconnect the air cleaner connecting tube
from the carburetor.
Remove the two carburetor mounting nuts
and carburetor body.
Remove the carburetor.
Fuel Drain Plu
g
Choke Cable
Bolts
Screw
N
uts
• Keep sparks and flames away from the
work area.
• Drain gasoline into a clean container.
＊
Band Screw
