KYMCO MXU 300 - CYLINDER;PISTON REMOVAL

8. CYLINDER/PISTON
8-4
MXU 300/250
CYLINDER/PISTON
REMOVAL

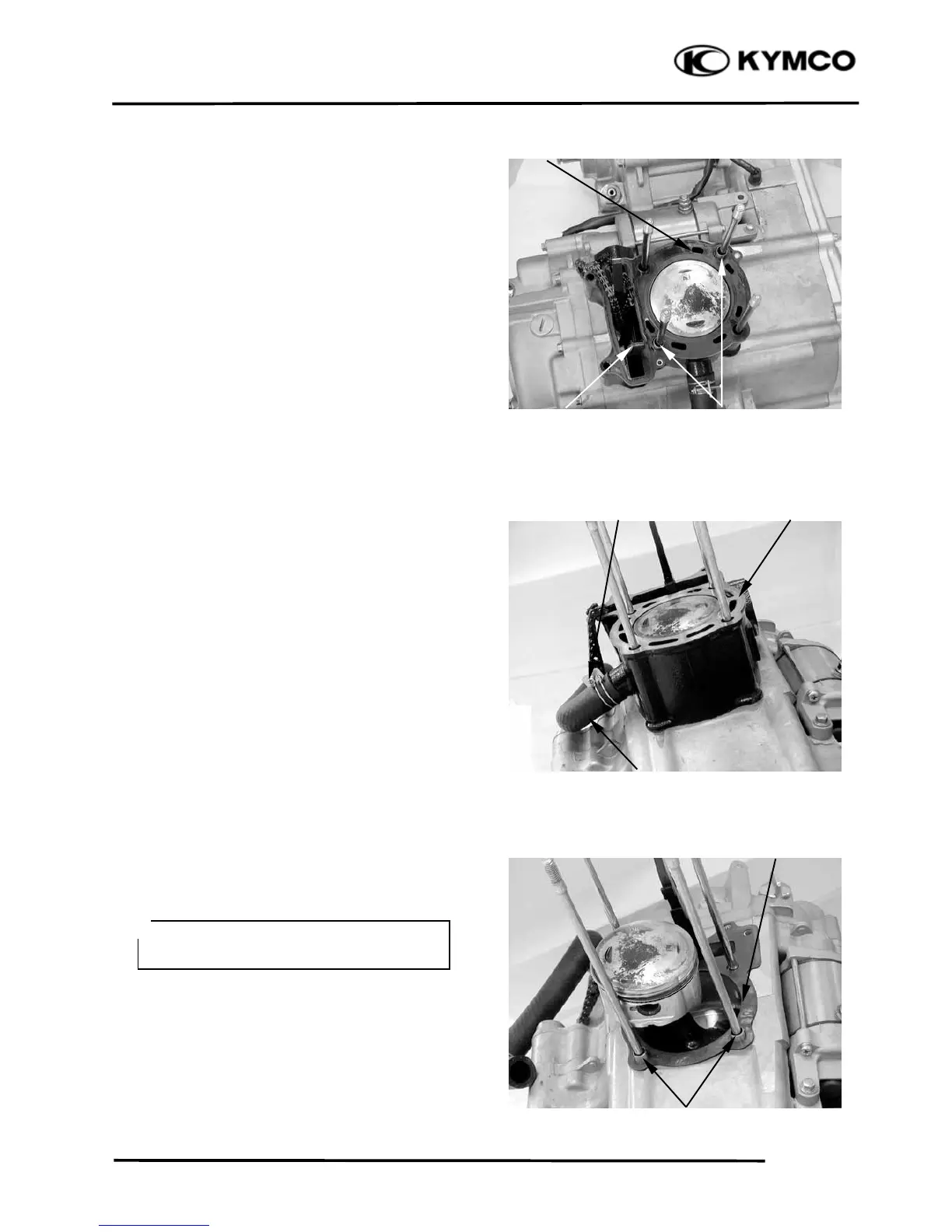

Remove the cylinder head. (Refer to the
chapter 7)
Remove the two dowel pins, cylinder head
gasket and cam chain guide.
Unscrew the clamp and disconnect the
water hose.
Remove the cylinder.
Remove the cylinder gasket and dowel pins.
Clean any gasket material from the cylinder
surface.
Dowel Pins
Gaske
t
Cam Chain Guide
Cylinde
r
Dowel Pins
Gaske
t
Screw
Water Hose
Be careful not to drop foreign matters
into the crankcase.
＊
