10.FINAL REDUCTION/
TRANSMISSION SYSTEM
10-10
MXU 300/250

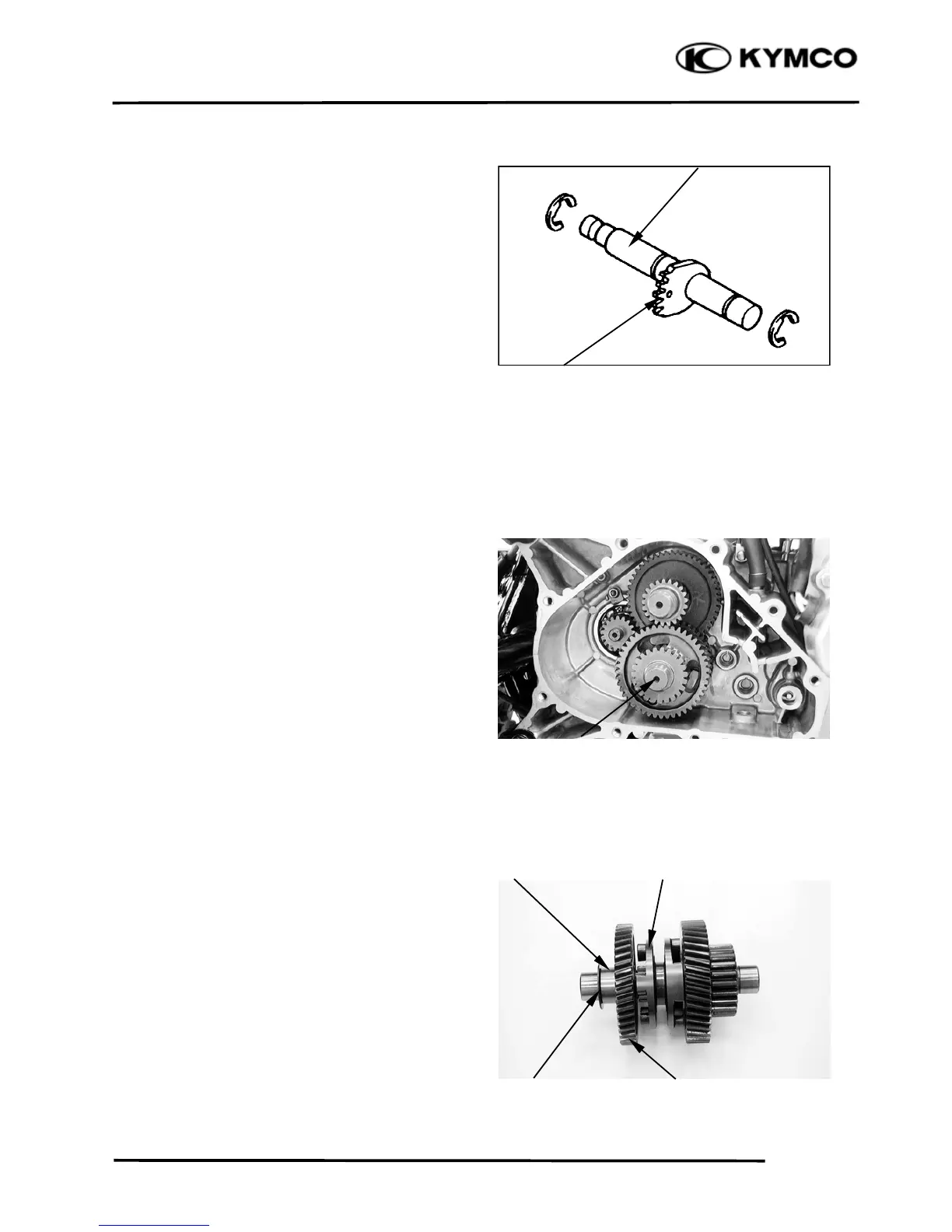

Inspect shift shaft gear.
Damage → Replace.
Inspect shift shaft.
Damage/bends/wear → Replace.
Remove the main axle.
MAIN AXLE DISASSEMBLY
Remove the washers, collar, primary driven
gear, bush and clutch dog.
Colla
r
Washe
r
Primary Driven Gea
r
Clutch Dog
Main Axle
Shift Shaft Gea
r
S
hif
t S
h
a
f
t
