10.FINAL REDUCTION/
TRANSMISSION SYSTEM
10-30
MXU 300/250

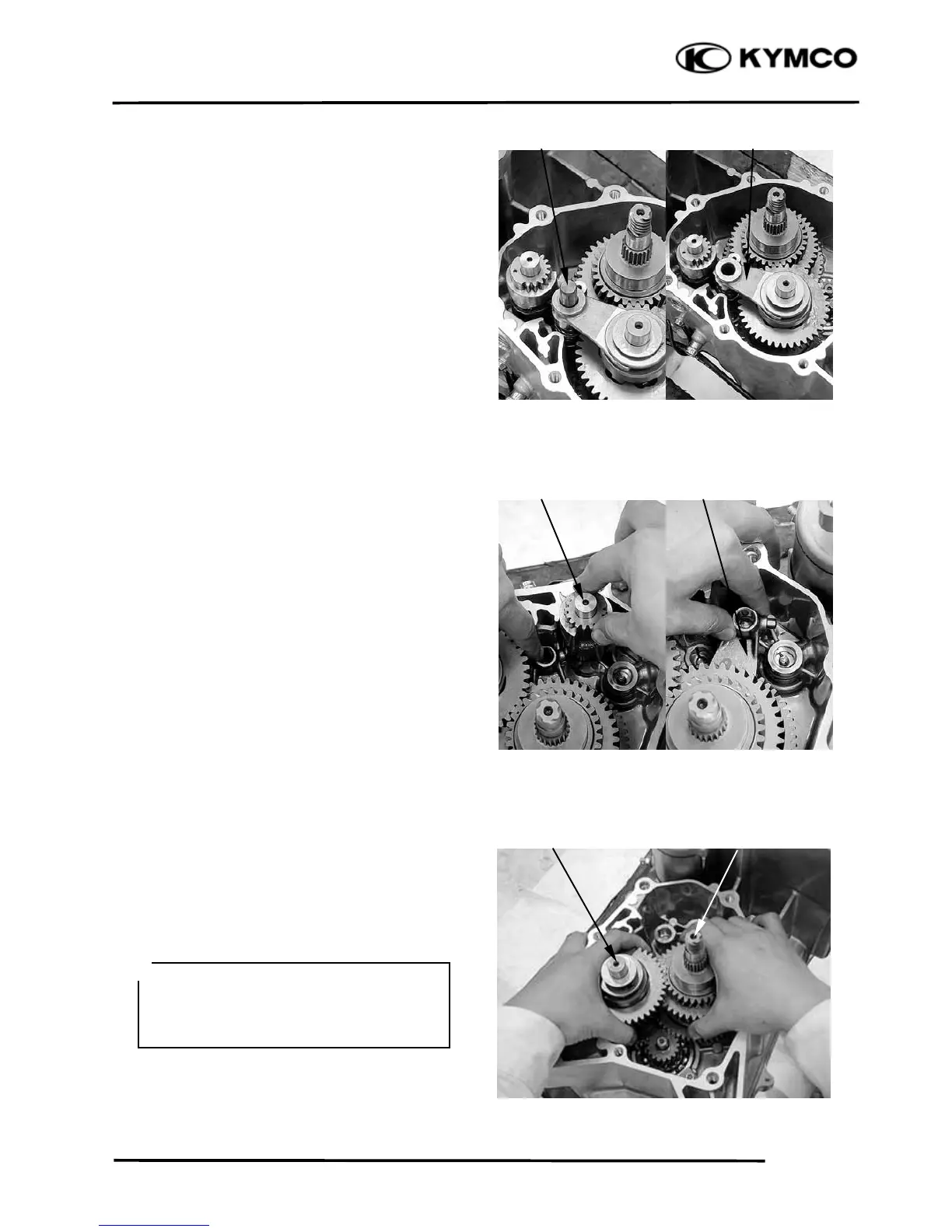

Remove the transmission guide bar.
Remove the upper shift fork.
Remove the shift cam.
Remove the lower shift fork.
Remove the countershaft and driveshaft as an
assembly.
Disassemble the countershaft and the
driveshaft.
Countershaft Driveshaf
t
Guide Bar Upper Shift Fork
Washer Plug
Shift Cam Lower Shift Fork
Keep track of the disassembled parts
(gears, washer and clip) by stacking
them on a tool or slipping them onto a
piece of wire.
＊
