10.FINAL REDUCTION/
TRANSMISSION SYSTEM
10-32
MXU 300/250
COUNTERSHAFT
DISASSEMBLY/INSPECTION

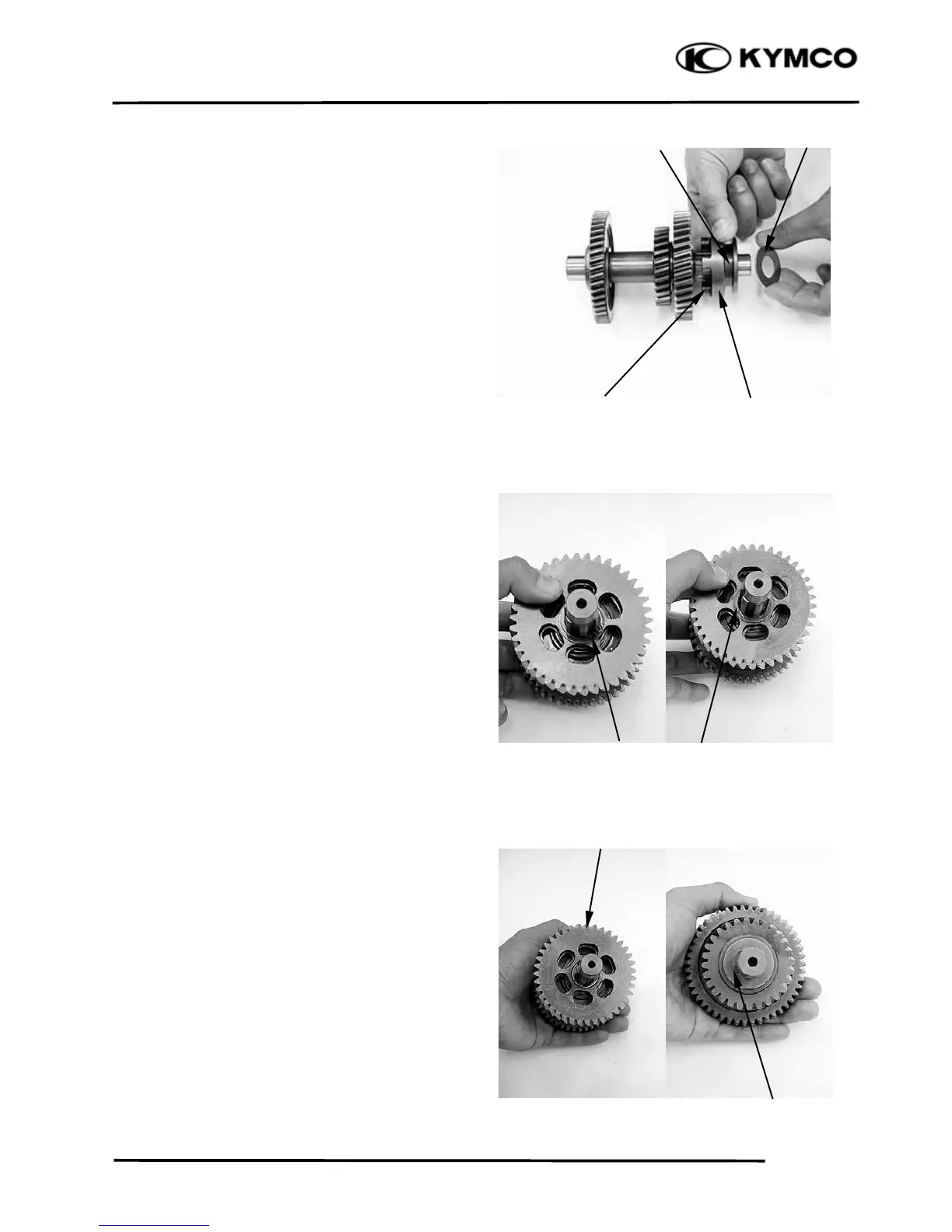

Remove the washer and high gear clutch dog.
Clutch dog
Check the gear dogs, gearshifter groove for
wear or damage.
Remove the snap ring, then remove washer
Remove the high drive gear, then remove
washer.
High drive gear
Inspect the dog holes and teeth for damage or
wear.
Gear Dogs Clutch Dog
Gearshifter Groove Washe
To Next Page
