10.FINAL REDUCTION/
TRANSMISSION SYSTEM
10-38
MXU 300/250

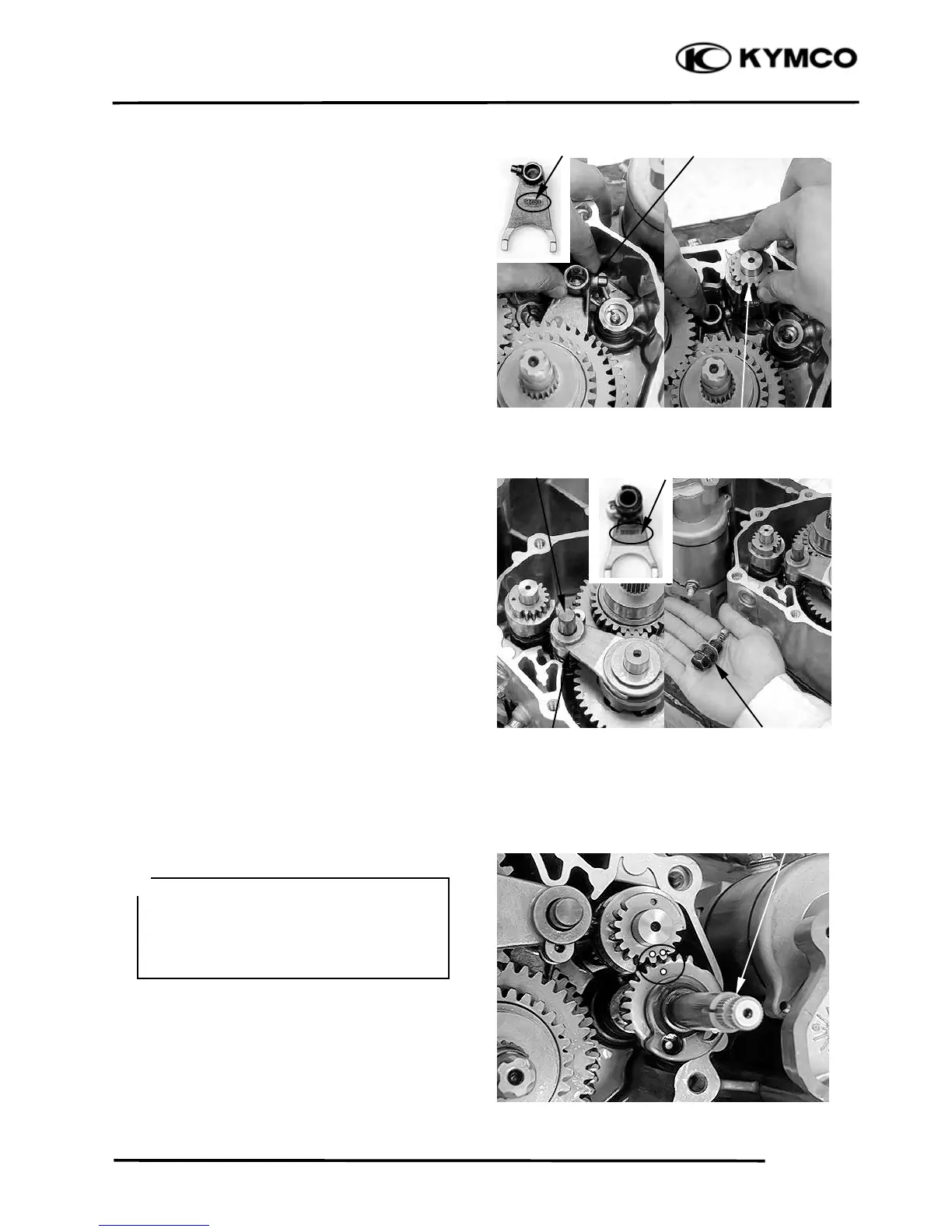

Apply engine oil to the gearshift fork, sliding
surfaces and gearshift fork pawl.
Install the lower gearshift fork into the clutch
dog (counter axle) groove with its “LCD9L”
mark facing down.
Install the shift cam into the transmission
case, then install the lower gearshift fork
pawl into the shift cam groove.
Apply engine oil to the gearshift fork, sliding
surfaces and gearshift fork pawl.
Install the upper gearshift fork into the clutch
dog (main axle) groove and install the upper
gearshift fork pawl into the shift cam groove
with its “LCD9R” mark facing down.
Install the guide bar.
Install the shift cam
stopper/spring/washer/plug and tighten plug
to specified torque.
Torque: 48 N-m (4.8 kgf-m, 35 lbf-ft)
Install the shift shaft.
Shift Ca
m
“ LCD9L” Mark Lower Gearshift Fork
Upper Gearshift Fork Plug/Washer/Spring
/
Shift Cam Stopper
Guide Bar “LCD9R” Mark
Shift Shaf
t
Make sure that the lever on the gea
r
change switch correctly engages with the
locating slot on the shift shaft.
Align the mark on the shift shaft gear
with the mark on the shift cam gear.
＊
