10.FINAL REDUCTION/
TRANSMISSION SYSTEM
10-41
MXU 300/250
Drive bevel gear shims:
A: 0.6 mm (0.024 in)
B: 0.65 mm (0.026 in)
C: 0.7 mm (0.028 in)
D: 0.75 mm (0.03 in)
E: 0.8 mm (0.032 in)
F: 0.85 mm (0.034 in)
G: 0.9 mm (0.036 in)
H: 0.95 mm (0.038 in)
I: 1 mm (0.04 in)
J: 1.05 mm (0.042 in)
K: 1.1 mm (0.044 in)
L: 1.15 mm (0.046 in)
Driven bevel gear shims:
A: 0.85 mm (0.034 in)
B: 0.9 mm (0.036 in)
C: 0.95 mm (0.038 in)
D: 1 mm (0.04 in)
E: 1.05 mm (0.042 in)
F: 1.1 mm (0.044 in)
G: 1.15 mm (0.046 in)

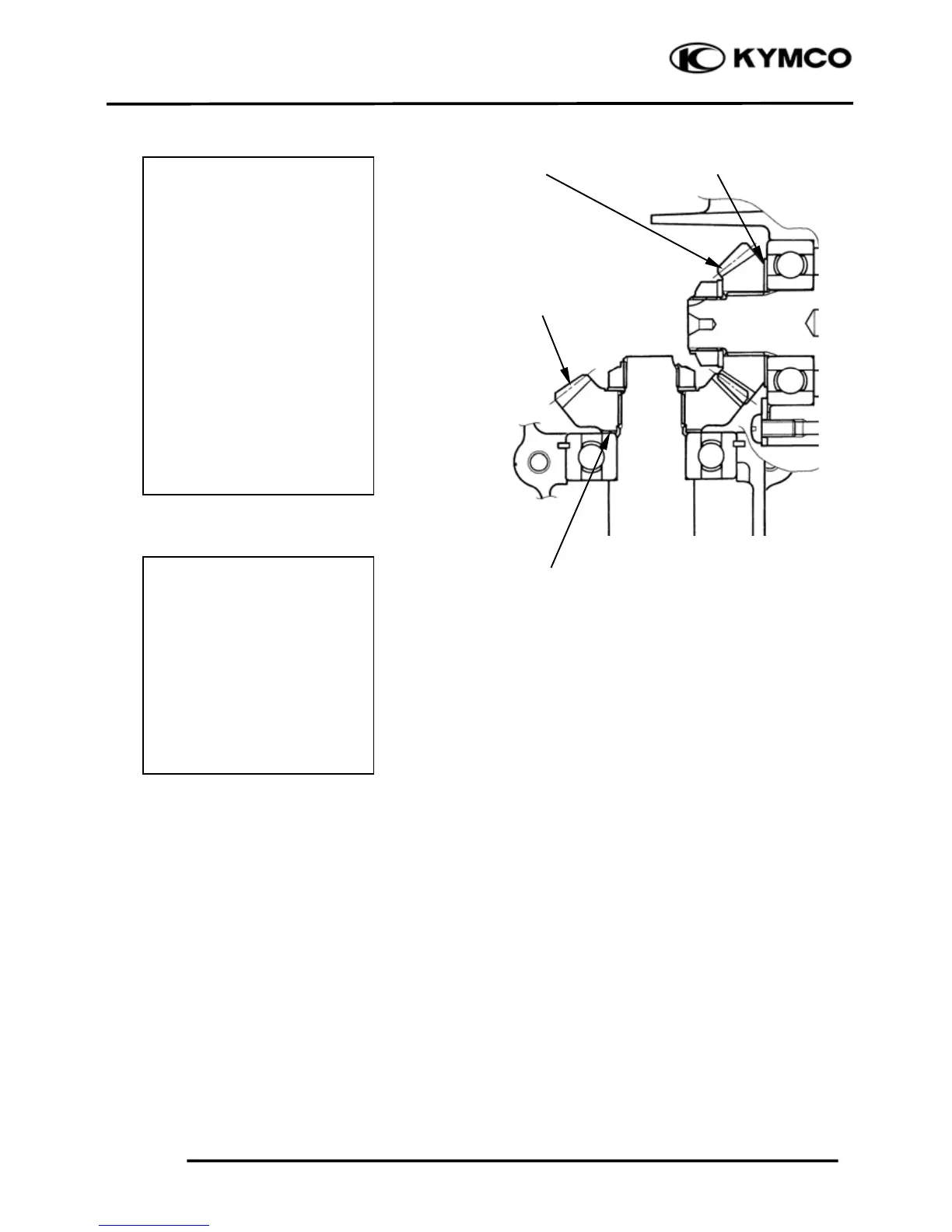

Drive Bevel Gear Shi
m
Shi
m
Driven Bevel Gea
r
