KYMCO MXU 300 - CRANKCASE;CRANKSHAFT;BALANCE SHAFT REMOVAL

11.CRANKCASE/CRANKSHAFT/
BALANCE SHAFT
11-3
MXU 300250
CRANKCASE/CRANKSHAFT/BA
LANCE SHAFT

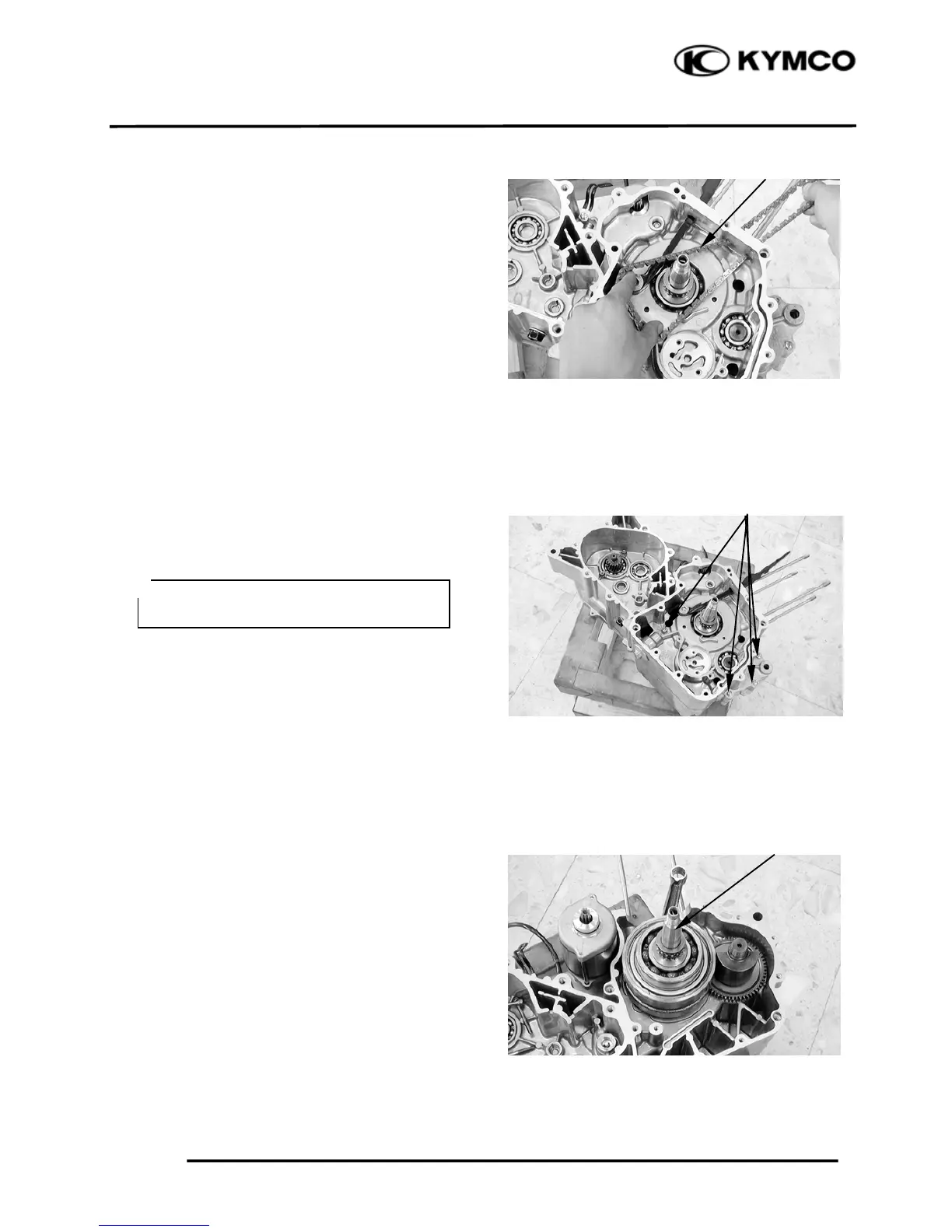

REMOVAL
Remove the timing chain from right
crankcase.
Remove the left and right crankcase
attaching bolts.
Separate the left and right crankcase halves.
Remove the gasket and dowel pins.
Remove the crankshaft from the left
crankcase.
Crankshaft
Bolts
Timing Chain
Do not damage the crankcase gasket
surface.
＊
