12. COOLING SYSTEM
12-6
MXU 300/250

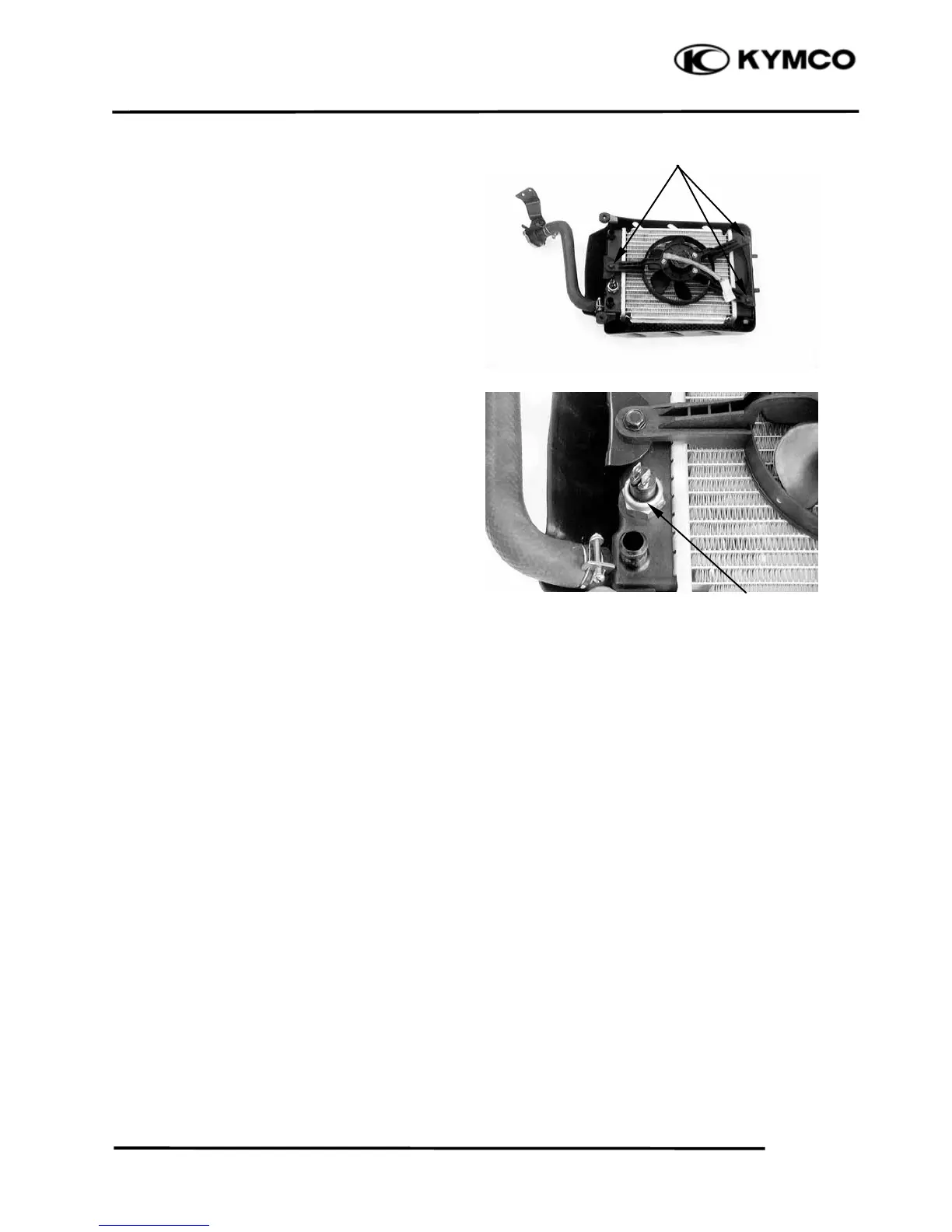

RADIATOR DISASSEMBLY
Remove the three bolts and then remove the
fan shroud from the radiator.
Check fan motor by battery.
CHECK THERMOSTATIC SWITCH
When coolant temperature lower then
85~90℃ the thermostatic switch OFF.
When coolant temperature over 85~90℃
the thermostatic switch ON.
RADIATOR ASSEMBLY
Install the fan shroud on the radiator with
the three bolts.
RADIATOR INSTALLATION
Reverse the “RADIATOR REMOVAL”
procedures.
Bolts
Thermostatic Switch
