12. COOLING SYSTEM
12-11
MXU 300/250

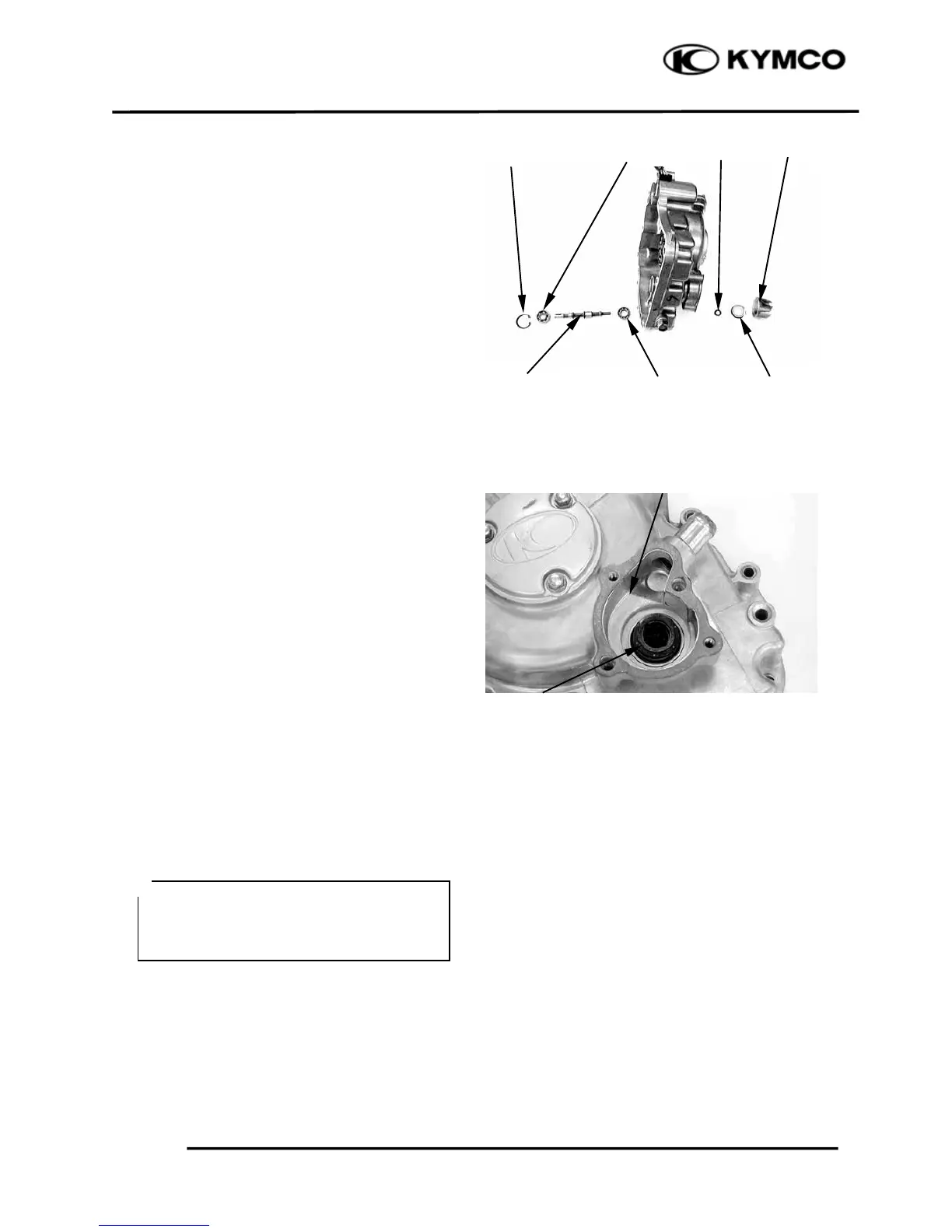

Water Pump Assembly
Remove the water pump shaft outer
bearing.
MECHANICAL SEAL REPLACEMENT
Drive the mechanical seal out of the water
pump assembly from the inside.
Drive in a new mechanical seal using a
mechanical seal driver.
Inner Bearing
Apply sealant to the right crankcase
cover fitting surface of a new mechanical
seal and then drive in the mechanical
seal.
＊
Mechanical Seal (Water Seal)
Snap Ring
Outer Bearing
Water Pump Shaf
t
Washe
r
Impelle
r
Seal Washe
r
