13. BRAKE SYSTEM
13-10
MXU 300/250

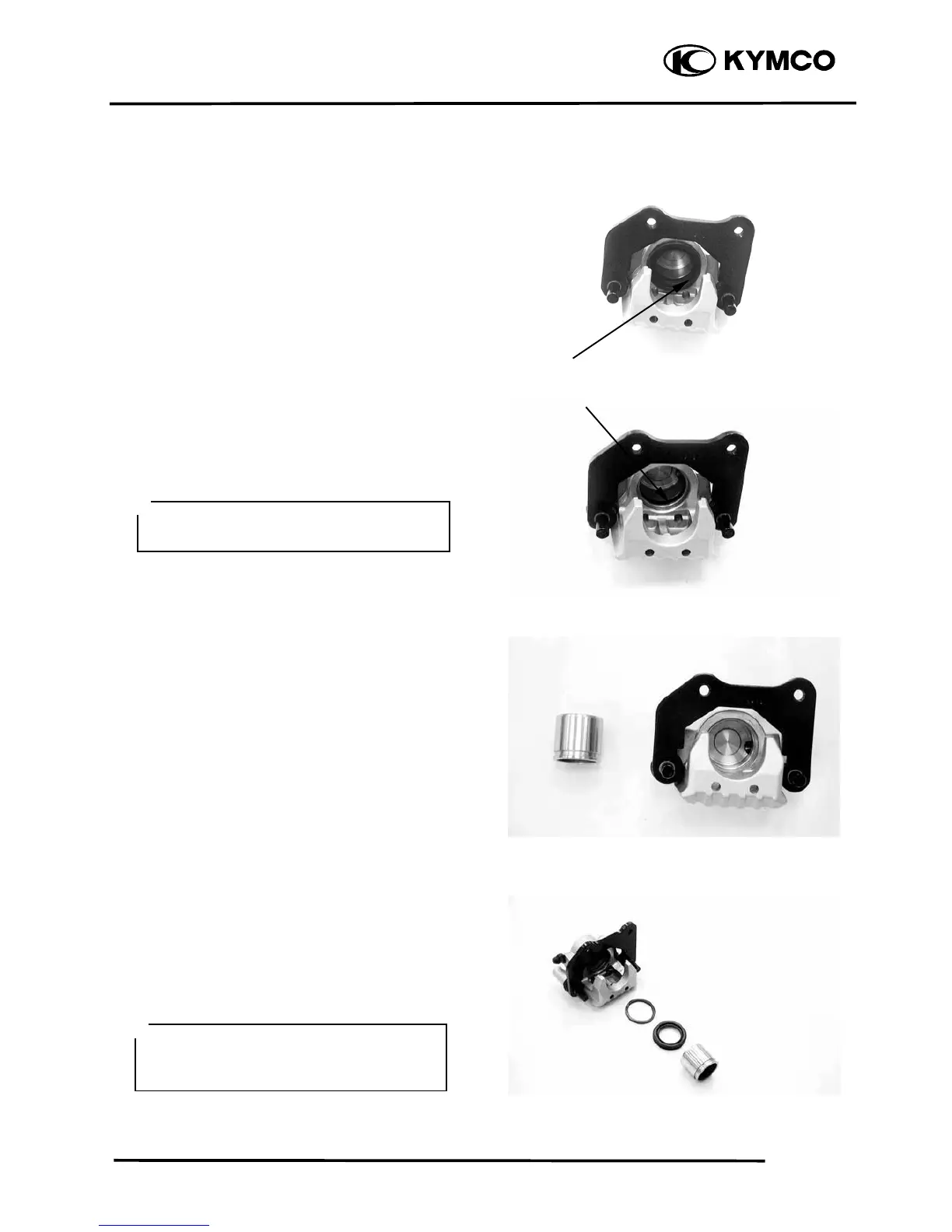

Push the piston dust seal inward to remove.
Pushing the piston oil seal outward to
remove it.
Clean the seals groove with brake fluid.
INSPECTION
Inspect the caliper cylinder wall and piston
surface for scratch, corrosion or other
damages.
If any abnormal condition is noted, replace
the caliper.
ASSEMBLY
Clean all removed parts.
Apply silicon grease to the piston and oil
seals. Lubricate the brake caliper cylinder
inside wall with brake fluid.
Install the oil seal and dust seal.
Install the brake caliper piston with grooved
side facing out.
Wipe off excessive brake fluid with a clean
shop towel.
Inner Oil Seal
Dust Seal
Be careful not to damage the piston
surface.
＊
Install the piston with its outer en
