15. REAR WHEEL/AXLE/SUSPENSION
DRIVING MECHANISM
15-5
MXU 300/250

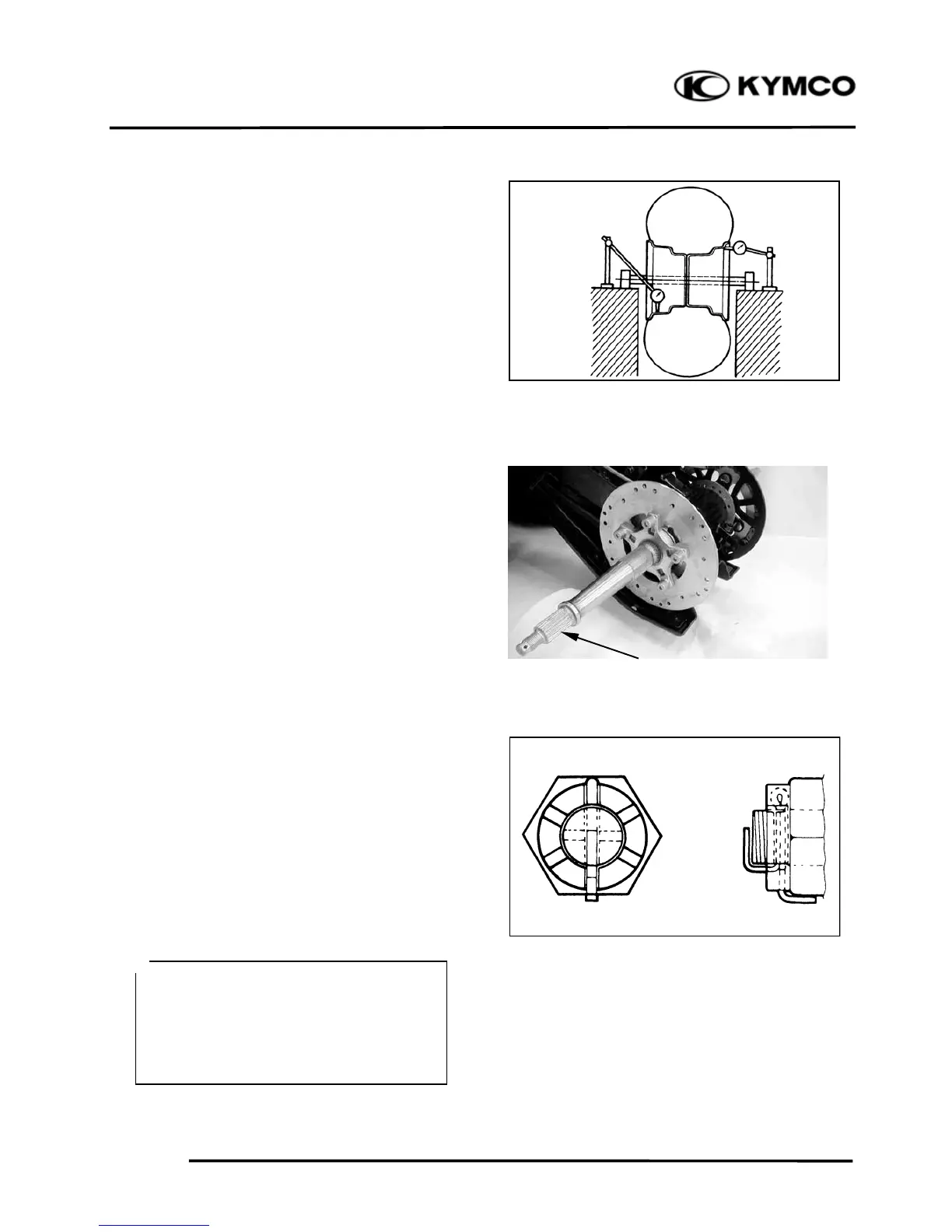

Measure the wheel runout.
Service Limit:
Vertical: 2 mm (0.08 in)
Lateral: 2 mm (0.08 in)
Out of specification → Replace wheel.
INSTALLATION
Apply molybdenum disulfide grease to axle
shaft spline end (out side), so the spline
grove is filled with grease.
Install the rear wheel hub onto the axle.
Apply grease to the rear wheel hub nut
threads and setting surfaces.
Install the hub nut onto the axle and tighten
the hub nut to the specified torque and
further tighten until its grooves align with
the cotter pin hole.
Torque: 10 kgf-m (100 Nm, 72 lbf-ft)
Install cotter pin (new).
Apply grease
Do not loosen the wheel hub nut after
torque tightening. If the wheel hub nut
groove is not aligned with the cotter pin
hole, align groove with the hole by
tightening up on the wheel hub nut.
Always use a new cotter pin.
＊
