15. REAR WHEEL/AXLE/SUSPENSION
DRIVING MECHANISM
15-7
MXU 300/250

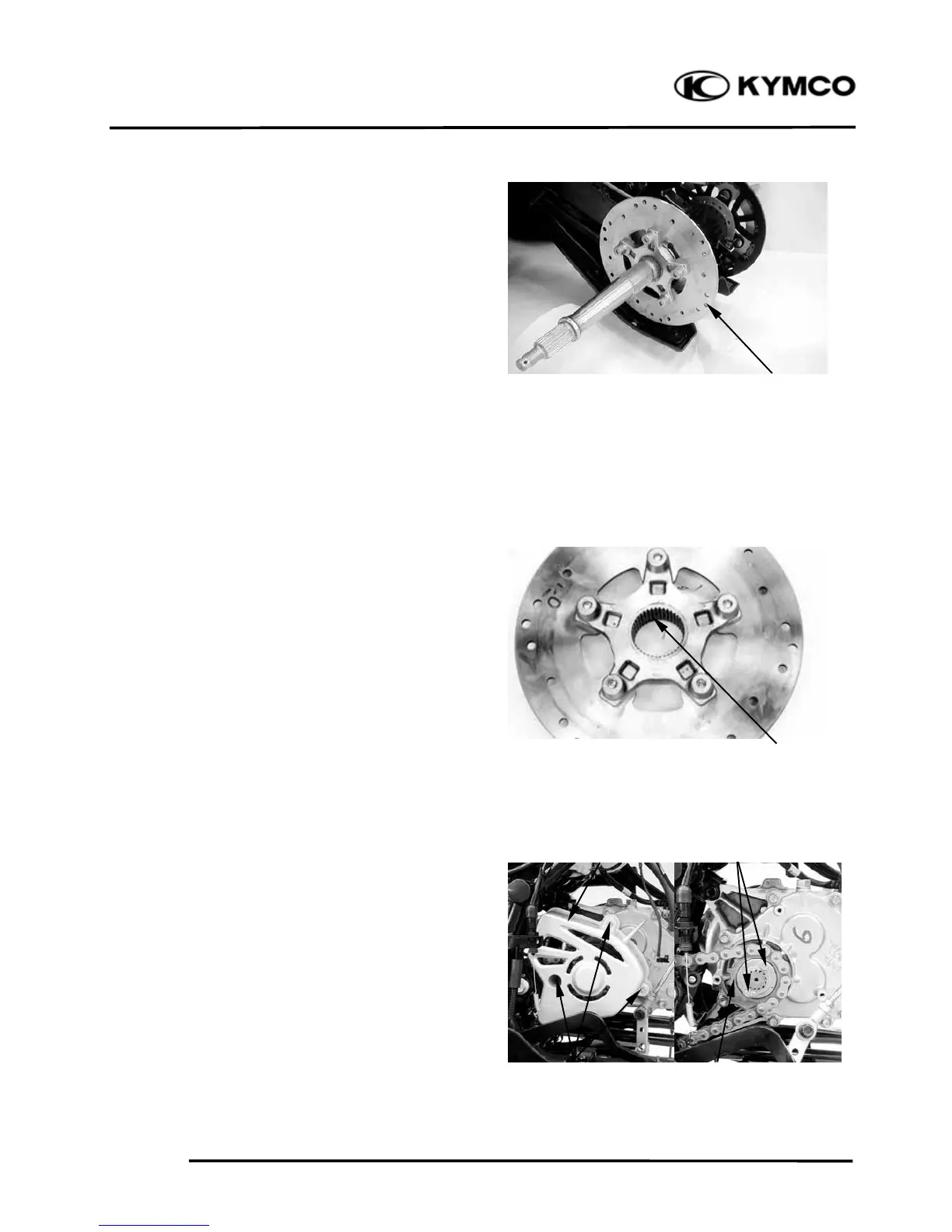

Remove the rear brake disk.
Inspect the brake disk
Cracks/damage → Replace.
Inspect the brake disk splines.
Wear/damage → Replace.
Loosen the driven chain (refer to the
“DRIVE CHAIN SLACK ADJUSTMENT”
section in the chapter 3) and remove the two
bolts at the drive sprocket (refer to the
chapter 6), then disconnect the drive chain
from the driven sprocket.
Rear Brake Disk
S
p
lines
Bolts
Drive Sprocket Cove
r
Bolts
Drive Sprocke
t
