15. REAR WHEEL/AXLE/SUSPENSION
DRIVING MECHANISM
15-25
MXU 300/250

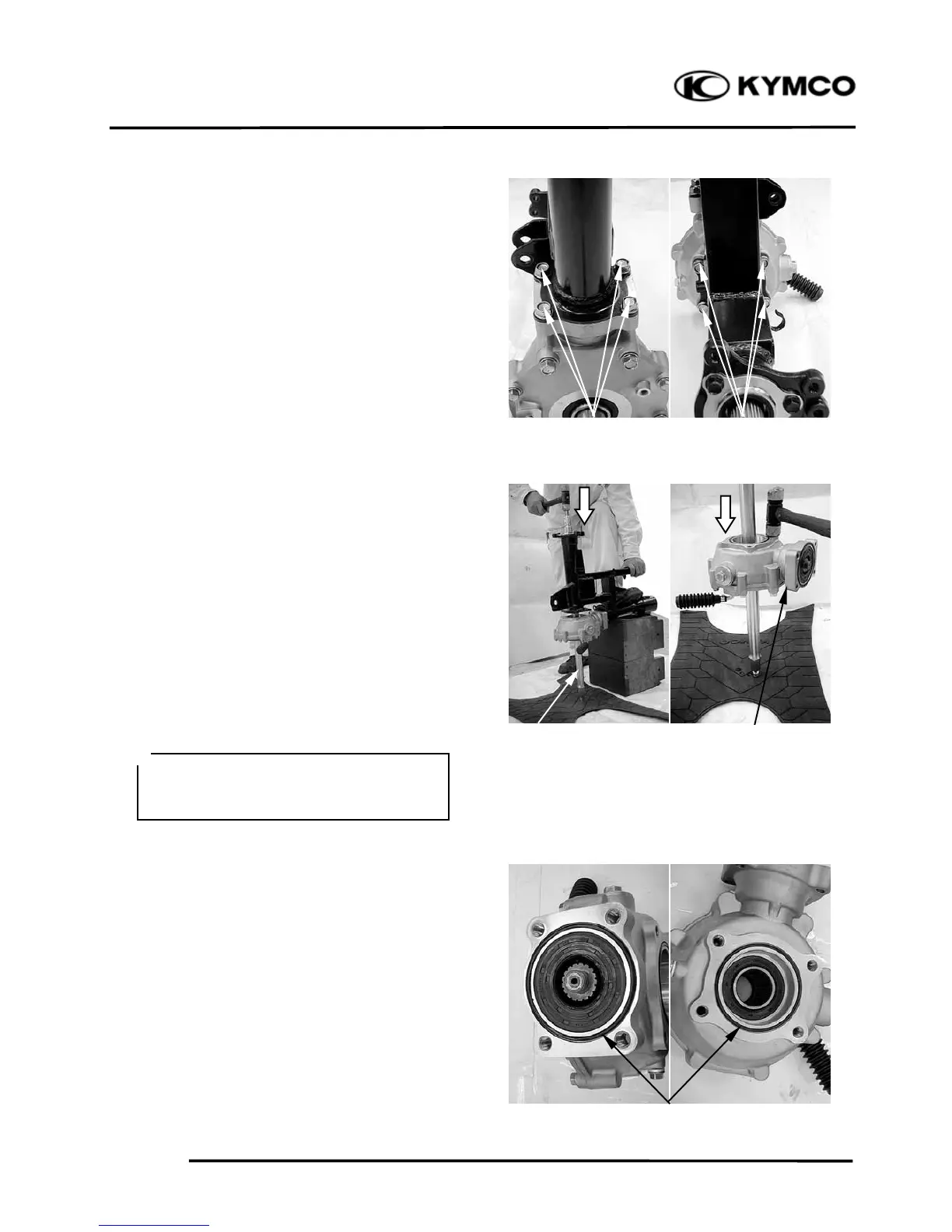

Remove the eight mounting bolts (front/left)
and then remove the rear driving
mechanism.
Support the swingarm with a support block
and place a rubber mat under the rear axle
right side end.
Remove the final gear case assembly and
rear axle by driving them from the left side
using a rubber mallet.
Place the rear axle right side end on the
rubber mat.
Remove the final gear case assembly from
right side.
Remove the O-rings from the final gear case
grooves (front/rear).
Bolts Bolts
Rear Axle Final Gear Case
O-rings
Tap the final gear case using a diagonal
pattern and with a rubber hammer, this
will avoid damage the final gear case.
＊
