KYMCO MXU 300 - A.C. GENERATOR INSPECTION; A.C. GENERATOR;FLYWHEEL REMOVAL

16. BATTERY/CHARGING SYSTEM/
A.C. GENERATOR
16-9
MXU 300/250

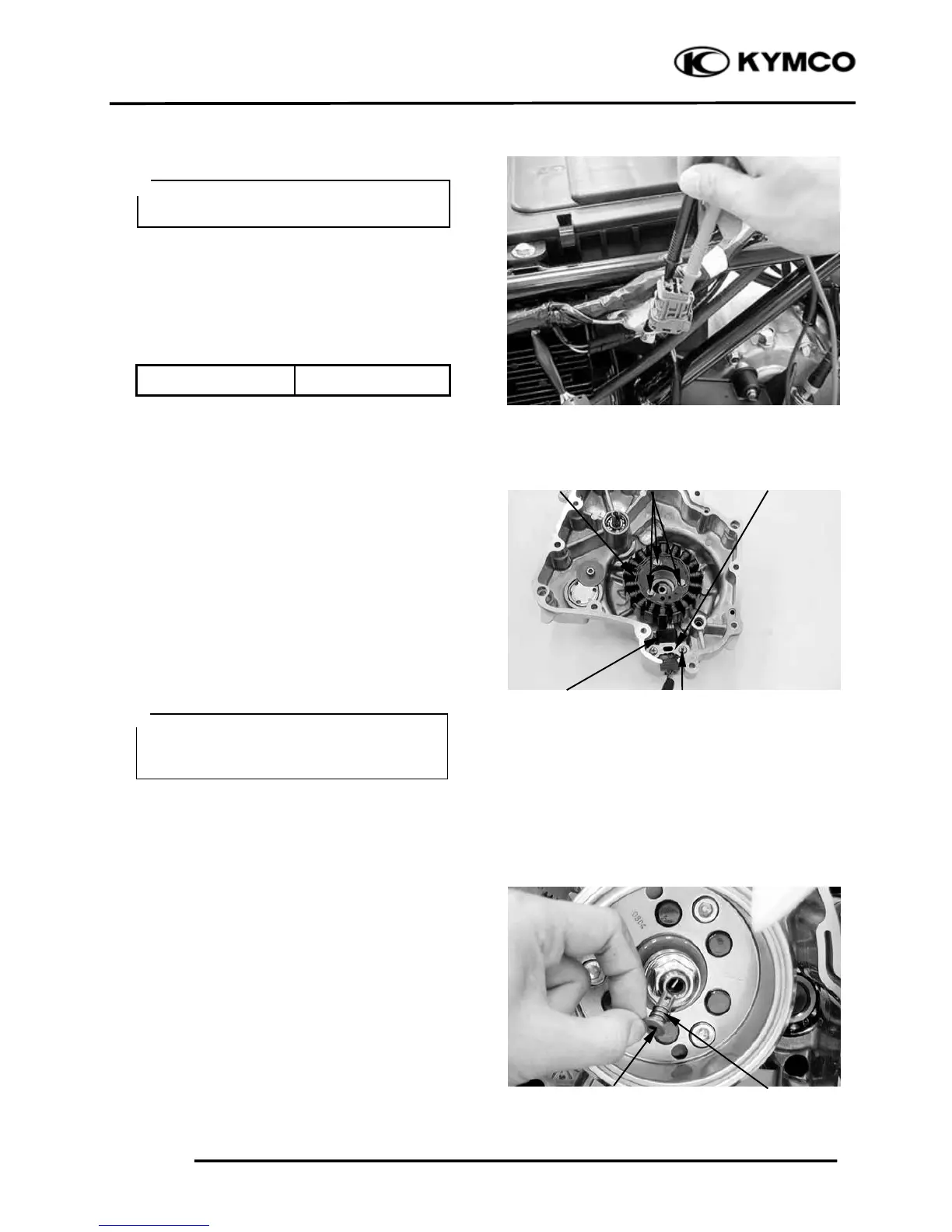

A.C. GENERATOR INSPECTION
Disconnect the A.C. generator connector.
Check the continuity between the yellow
wires and ground.
There should be continuity between the
yellow wires and no continuity between
each yellow wire and ground.
Resistance (at 20°C):
Yellow～Yellow 1.6～2.5Ω
A.C. GENERATOR/FLYWHEEL
REMOVAL
Remove the right crankcase cover. (Refer to
the “WATER PUMP SHAFT REMOVAL”
section in the chapter 12)
Remove the pulser coil screws and then
remove the A.C. generator wire set plate.
Remove the A.C. generator bolts and then
remove A.C. generator and pulser coil from
right crankcase cover.
Remove the oil through guide and spring.
Bolts
Screws
Set Plate
Pulser Coil
A.C. Generato
r
SpringOil Through Guide
This test can be made without removing
the stator from the engine.
＊
When removing the pulser coil an
d
stator, be careful not to damage them to
avoid shorted or broken wire.
＊
