KYMCO MXU 300 - IGNITION COIL INSPECTION

17. IGNITION SYSTEM
17-6
MXU 300/250
IGNITION COIL
INSPECTION

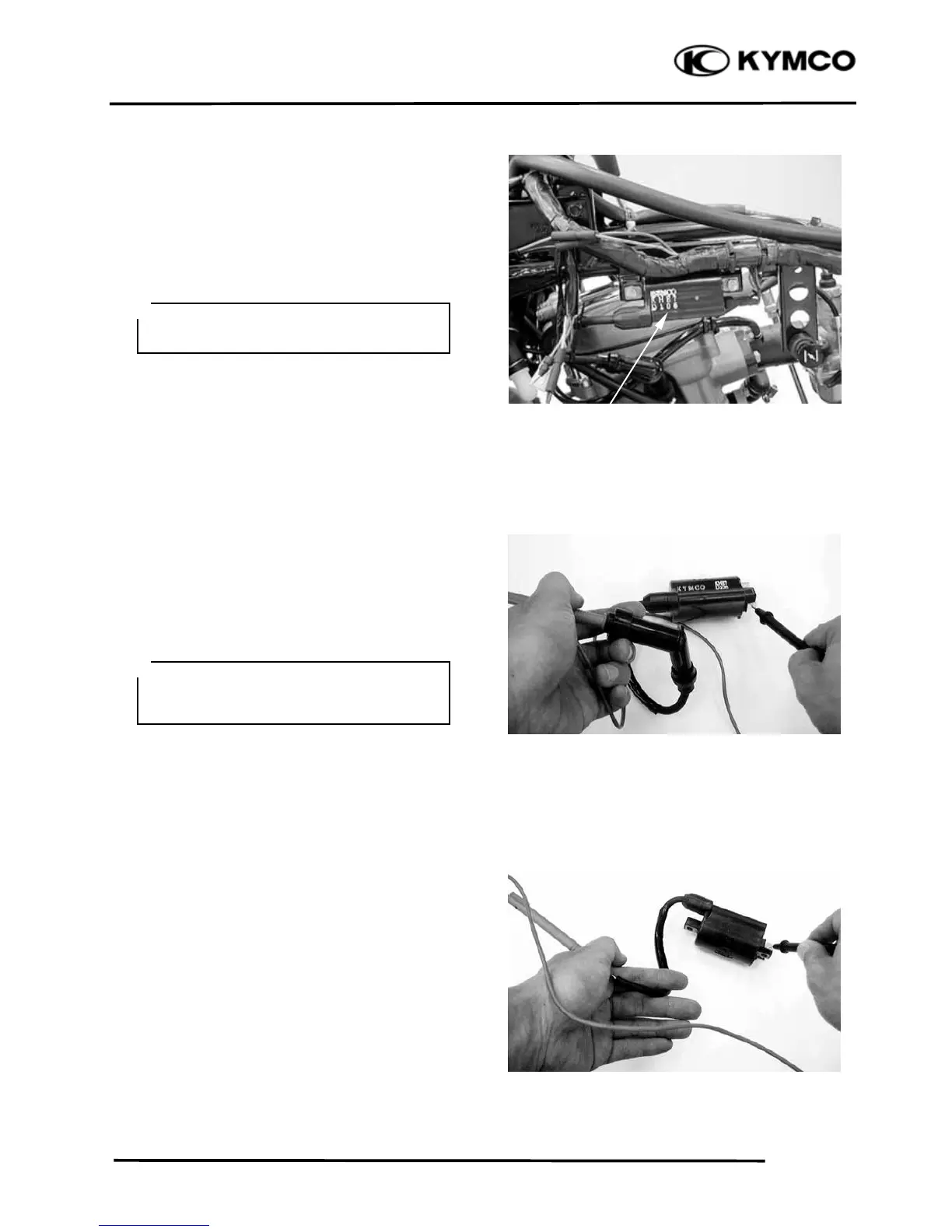

CONTINUITY TEST
Remove the front fender. (Refer to the
chapter 2)
Remove the spark plug cap. (Refer to the
chapter 6)
Disconnect the ignition coil wires.
Measure the resistance between the ignition
coil primary coil terminals.
Resistance: 3.4～4.1Ω/20◦C
Remove the spark plug cap and measure the
secondary coil resistance between the spark
plug wire and the primary coil terminal.
Resistance:
(with plug cap): 19.8KΩ/20◦C
(without plug cap): 14.45KΩ/20◦C
I
g
nition Coil
This test is to inspect the continuity of
ignition coil.
＊
This test is for reference only. Accurate
test should be performed with a CDI
tester.
＊
