19. LIGHTS/SWITCHES
19-3
MXU 300/250

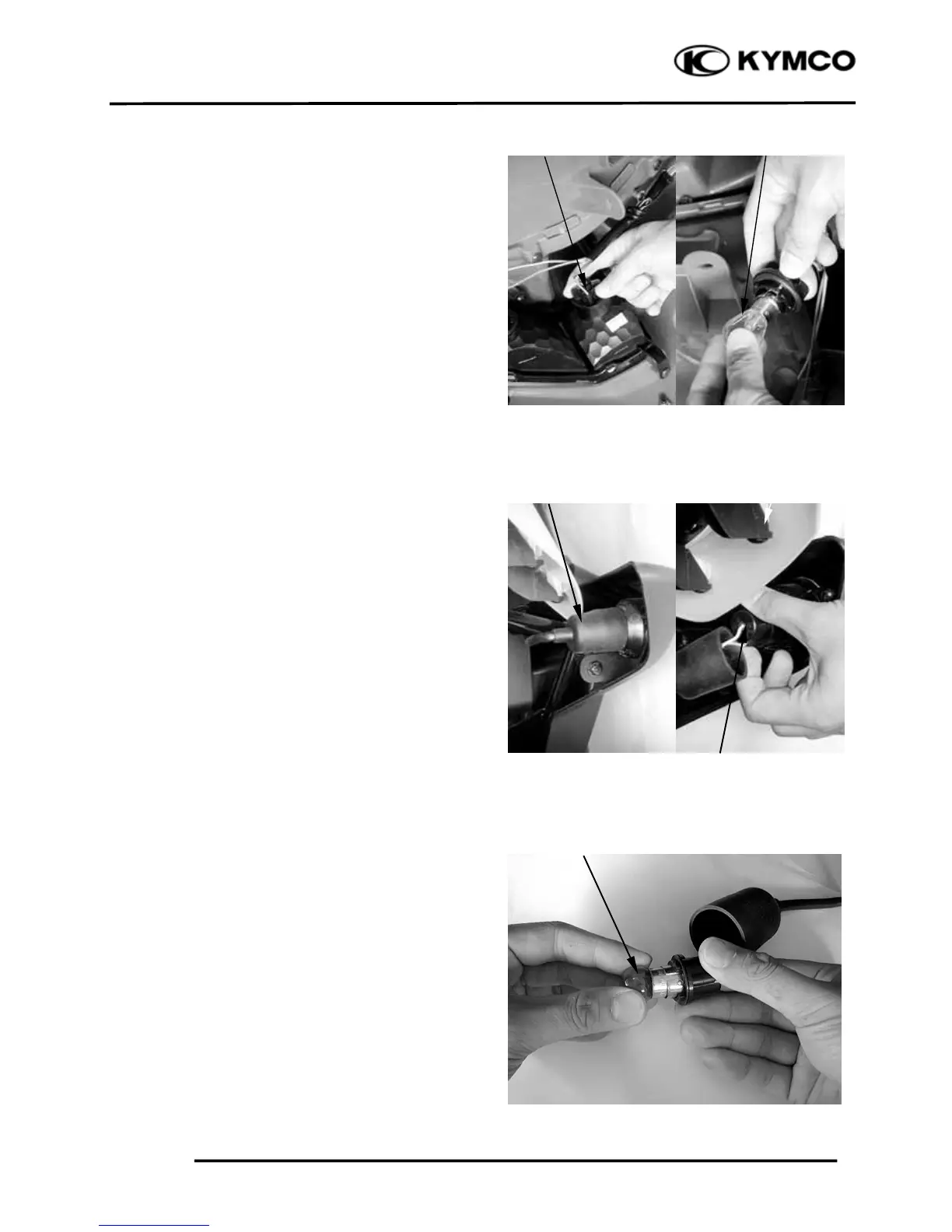

TAIL/BRAKE LIGHT
Remove the bulb socket by turning it
counterclockwise.
Remove the bulb.
Install the bulb in the reverse order of
removal.
TURN SIGNAL LIGHT (ON ROAD)
FRONT
Remove the rubber boot from the turn signal
light case.
Remove the bulb socket by turning it
counterclockwise.
Remove the bulb.
Install the bulb in the reverse order of
removal.
Bulb
Bulb Socket
Bulb
Bulb Socket
Rubber Boot
