2. FRAME COVERS/EXHAUST MUFFLER
2-4
MXU 300/250
Remove the two mounting bolts from the
front cargo rack right/left side under the
front fender, remove the front cargo rack.
Installation is in the reverse order of
removal.

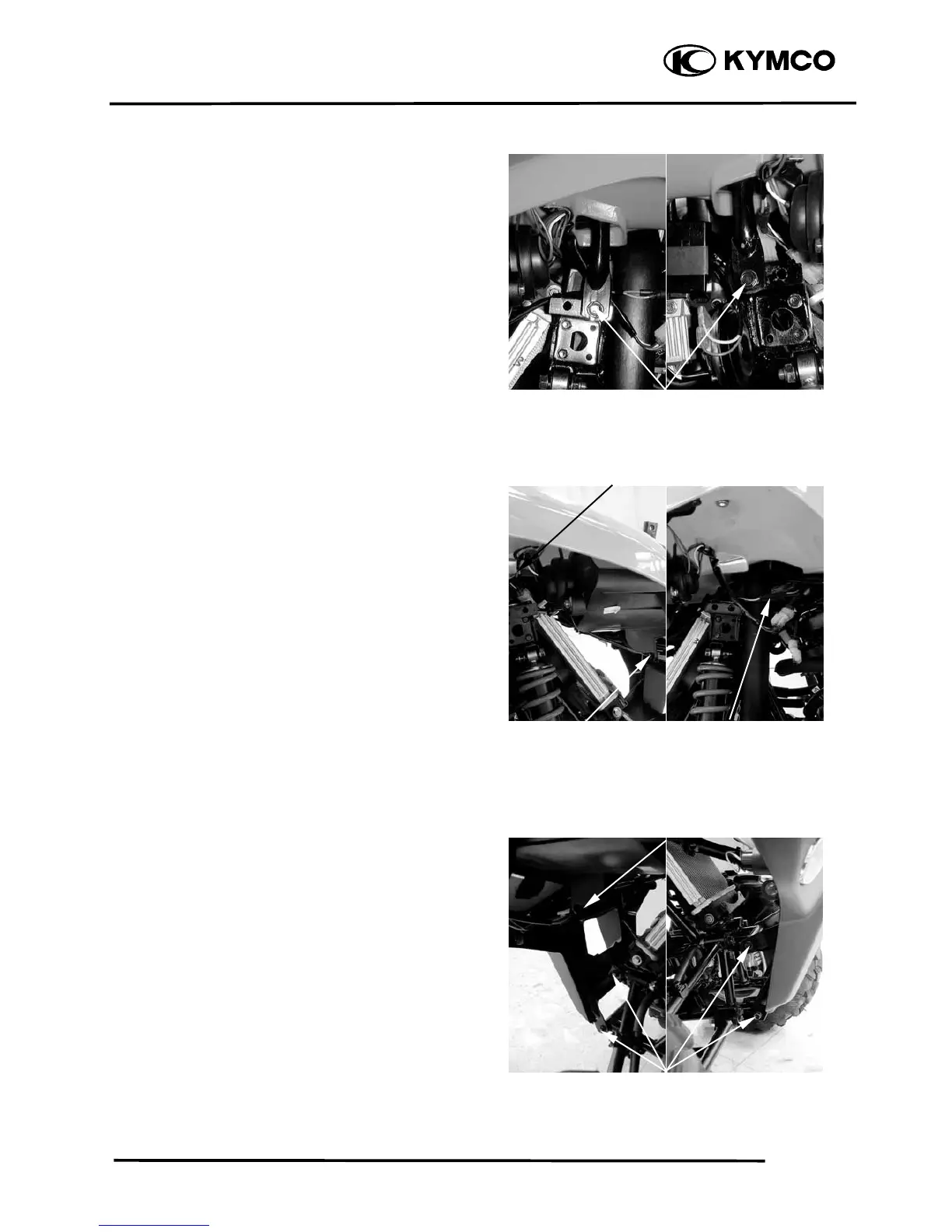

FRONT CARRIER
REMOVAL/INSTALLATION
Remove front cargo rack (see page 2-3).
Disconnect the right and left signal light
connectors. (ON ROAD)
Remove the bolt from the right headlight
case.
Remove the bolt from the left headlight
case.
Remove the four mounting bolts from the
front carrier right/left side, then remove the
front carrier.
Installation is in the reverse order of
removal.
Mounting Bolts
Bolt Left Signal Light Connectors
Right Signal Light Connectors
Mounting Bolts
Bol
t
