5. FUEL SYSTEM
5-6
MXU 300/250

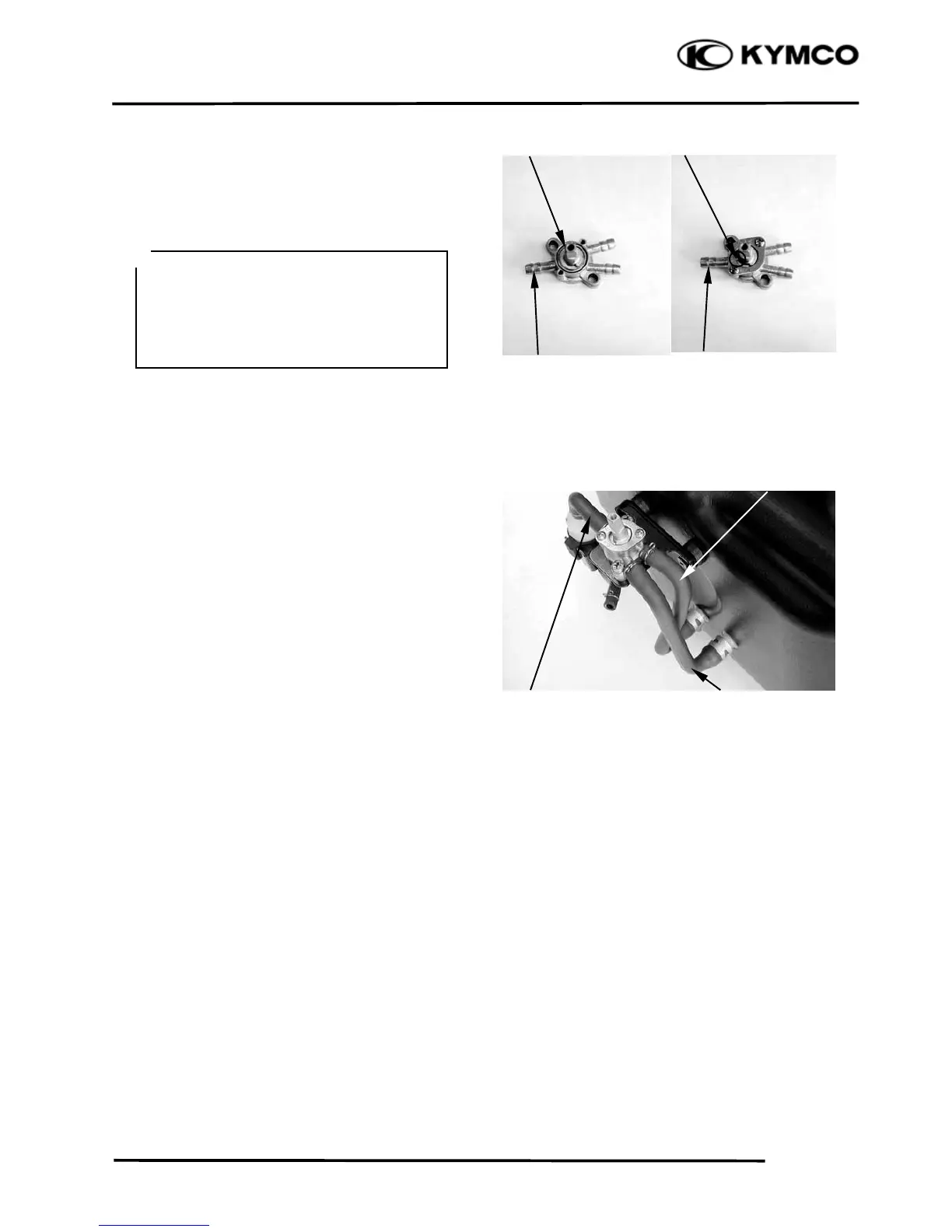

ASSEMBLY
Reverse the “DISASSEMBLY” procedures.
Install rubber gasket, control shaft, washer
and retaining ring.
INSTALLATION
Reverse the “FUEL VALVE REMOVEAL”
procedures.
Connect all fuel tube.
• Aligning the tab on the control shaft
with the outlet duct in the fuel valve
body.
• Aligning the tab on the retaining ring
with the outlet duct in the fuel valve
body.
＊
Reserve Fuel Tube
Main Fuel Tube
Outlet Fuel Tube
Tab
Outlet Duc
To Next Page
