3. LUBRICATION SYSTEM
3
-
4
Screw
Outer Rotor
Outer Rotor
Inner Rot
or
Oil Pump Body

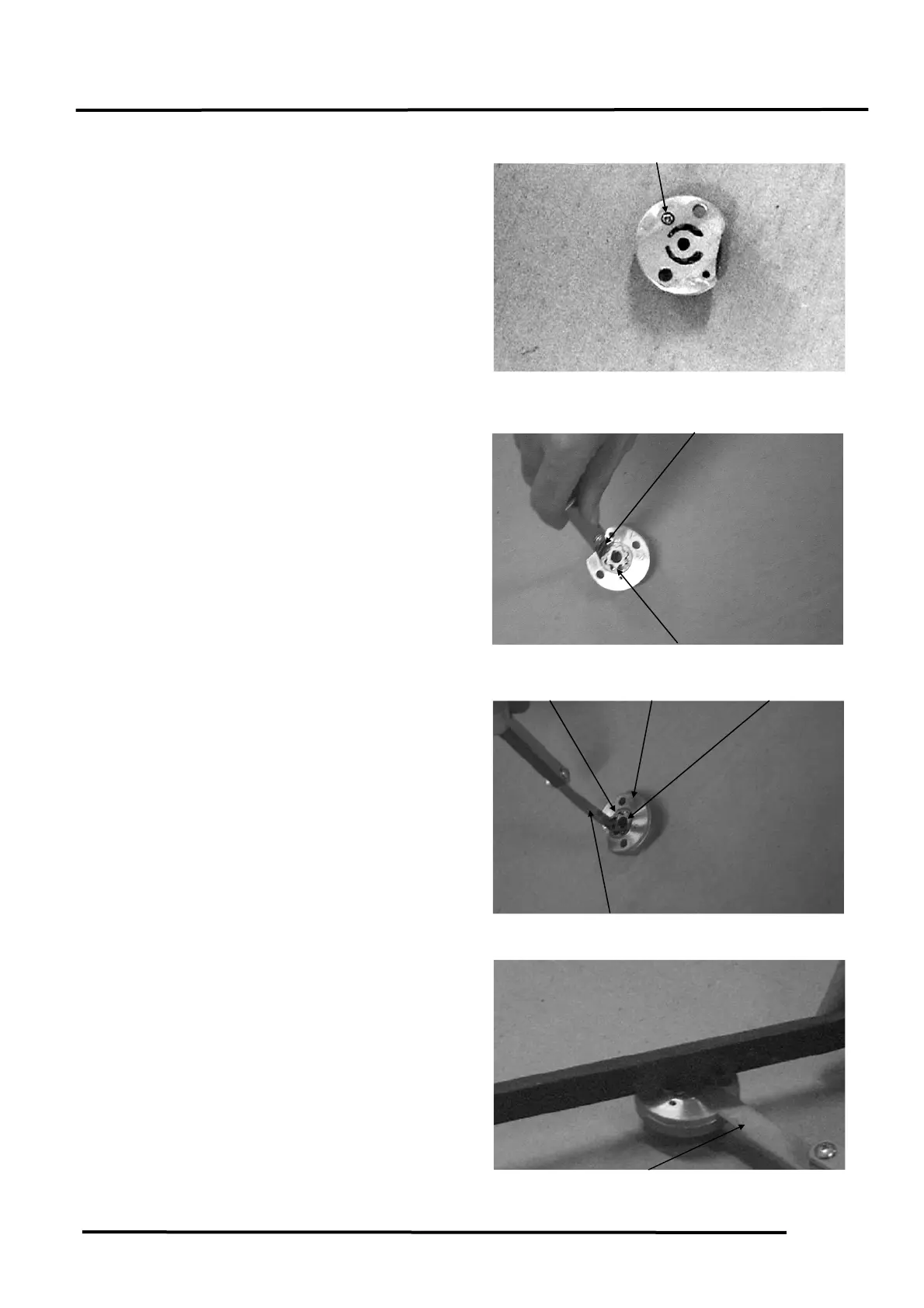

DISASSEMBLY
Remove the pump cover attaching screw.
INSPECTION
Measure the pump body-to-outer rotor
clearance.
Service Limit: 0.20mm
Measure the inner rotor-to-outer rotor
clearance.
Service Limit: 0.20mm
Measure the rotor end-to-pump body
clearance.
Service Limit: 0.15mm
Feeler Gauge
Feeler Gauge
Feeler Gauge
