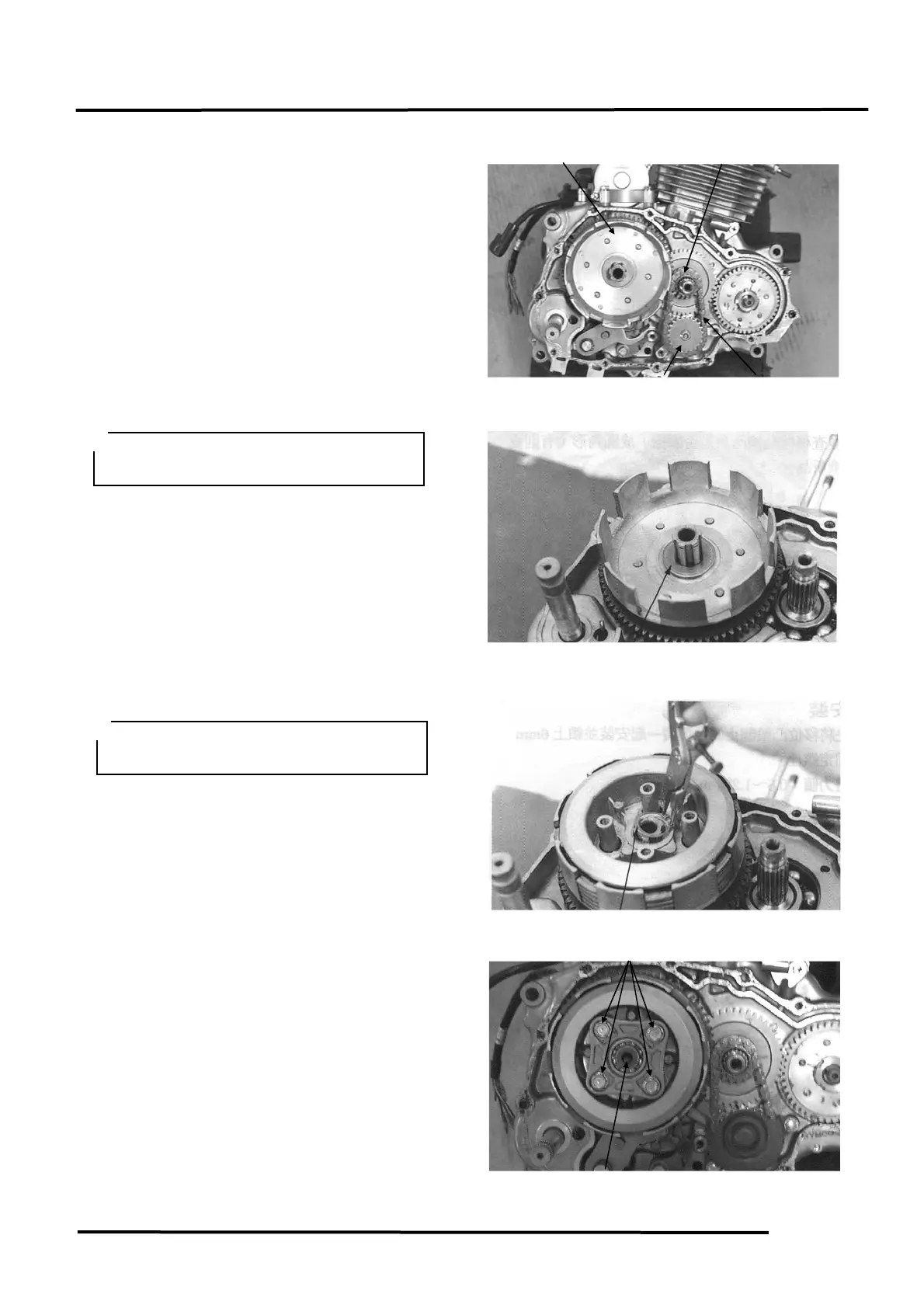

9. CLUTCH/GEAR SHIFT MECHANISM
Install the clutch outer drive gear onto the
crankshaft.
Install the oil pump drive gear onto the
crankshaft.
Install oil pump driven gear and chain.
Install the clutch outer and thrust washer.
Install the oil pump chain and driven gear
and secure it with the 6mm nut.
Install the clutch assembly.
Stagger the clutch friction disks and clutch
plates and then put them on the clutch center.
Then install the clutch center together with
the well-arranged friction disks and plates
into the clutch outer.
Install the circlip.
Install the tension springs and clutch lifter.
Install the washers to the bolts and tighten
the four bolts.
Torque: 0.8～1.2kg-m
Install the clutch lifter guide pin.
Install the thrust washer with the chamfe
side facing up.
Install the circlip with the chamfered side
facing down.
