Kyocera Ecosys FS-1320D Technical Reference Manual

Basic Concepts
1-7
Figure 1. 6. Print Direction
Coordinate Systems
With PRESCRIBE, positions on a page are described in terms of X and Y coordinates.
The origin of the coordinate system (the position at which X and Y both equal 0) is
located at the intersection of the top margin and the left margin. Values of X greater than
0 indicate positions to the right of the origin, and values of Y indicate positions below the
origin. See the figure on page 10. When the top and left margins are changed, the physi-
cal position of the origin changes accordingly.
Text Positioning
The printing system always keeps track of its current position on the page. The current
position can be thought of as a cursor that moves as data is printed. At any instant, the
Current Point
Left margin
Right margin
Top
margin
Bottom margin
Current point
Top margin
Right margin
Left
margin
Bottom margin
Right margin
Top margin
Current point
Left margin
Bottom margin
Current Point
Left
margin
Right margin
Top
margin
Bottom margin

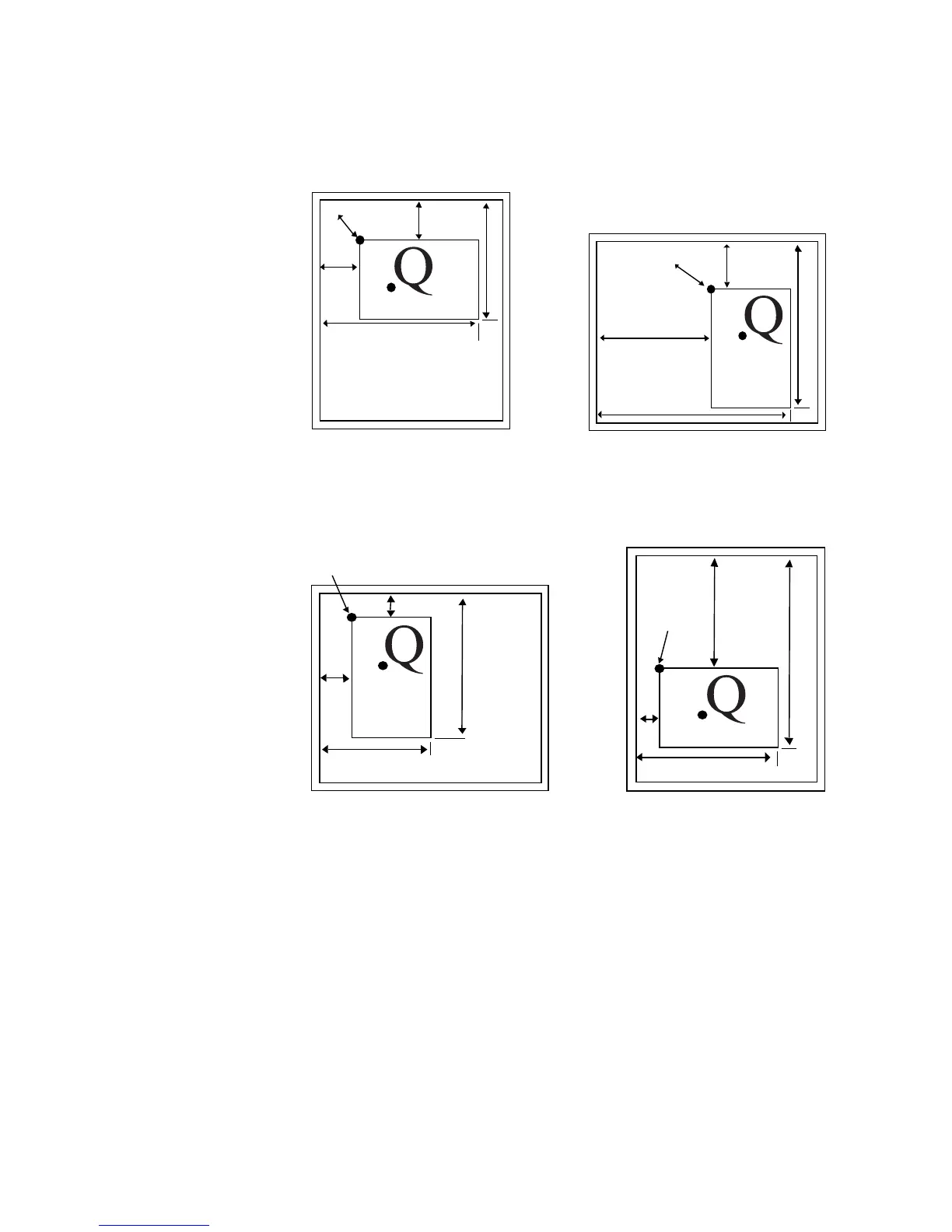

Landscape print direction
Portrait print direction
Reverse portrait print direction
Reverse landscape print direction

Kyocera Ecosys FS-1320D Specifications

General

Ethernet LAN	No
Network ready	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Printing colors	Black
Maximum duty cycle	50000 pages per month
Number of print cartridges	1
Page description languages	IBM ProPrinter, PCL 5c, PCL 6, PostScript 3
Processor model	405F5
Processor family	PowerPC
Maximum internal memory	544 MB
Display	LED
Certification	TÜV/GS, CE, PTS, C-Tick
Total input capacity	250 sheets
Maximum input capacity	800 sheets
Maximum number of input trays	3
Multi-Purpose tray input capacity	50 sheets
Custom media width	70 - 215.9 mm
Maximum print size	216 x 356 mm
Custom media length	148 - 356 mm
Duplex media weight	60 - 105 g/m²
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Standard interfaces	USB 2.0
Optional connectivity	Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	7.2 W
Power consumption (printing)	544 W
Power consumption (PowerSave)	4.3 W
Media thickness	0.11 mm
Compatible operating systems	Windows OS Linux OS Unix OS Mac OS X 10.2+

Weight and Dimensions

Dimensions (WxDxH)	375 x 393 x 250 mm
