Kyocera Ecosys FS-1320D Technical Reference Manual

Chapter 2 Graphics Tutorial
2-36

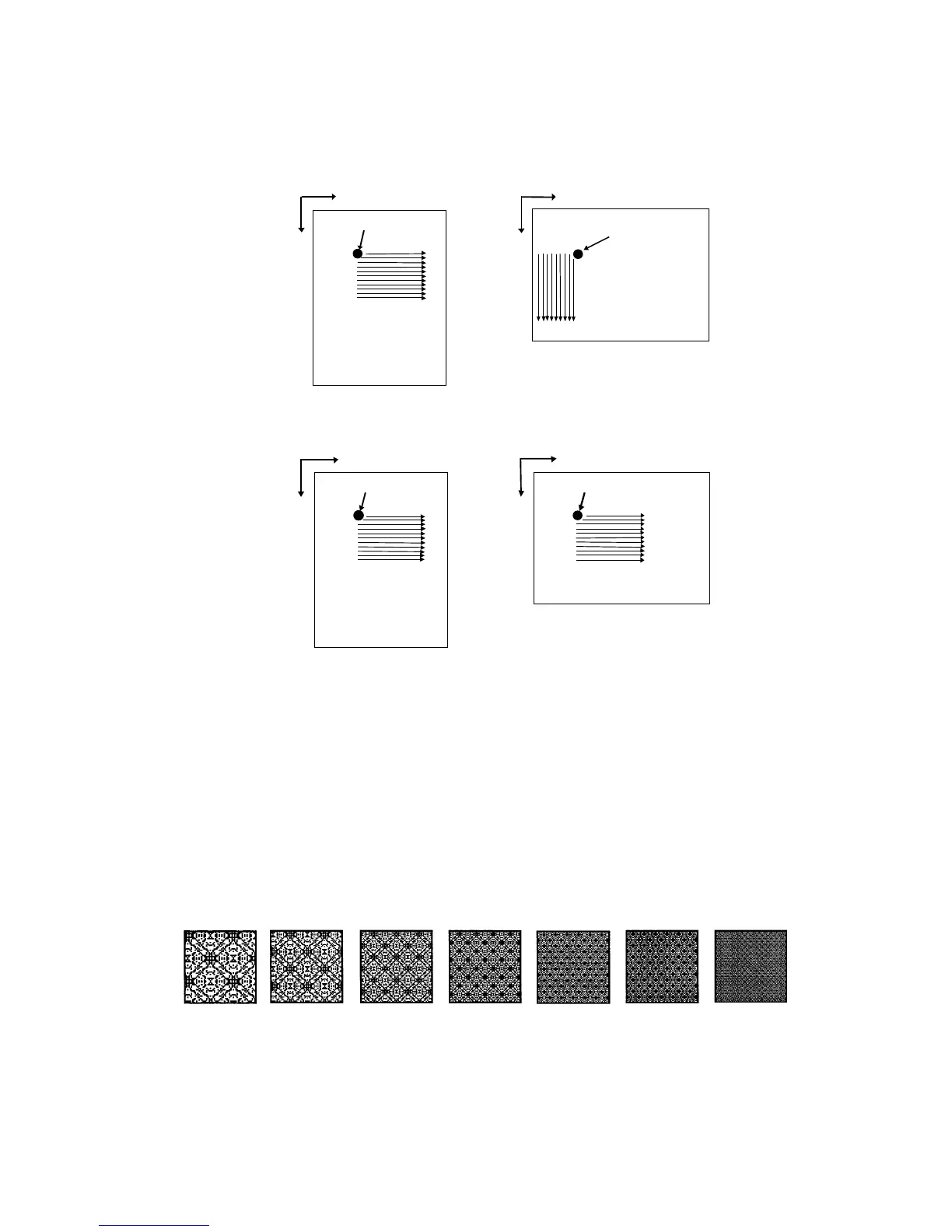

Figure 2. 36. Presentation Modes
A secondary function of the SRO command specifies the width and height of the raster
area. When a width and height are explicitly specified, any part of the raster image that
extends outside of the area is clipped.
The STR command specifies the resolution at which raster data is printed. The default
resolution is 75 dots per inch, or the equivalent of 16 physical dots for each raster-line
dot. The following figure shows how a single raster-line dot correlates to physical dots at
each of the available raster data resolutions.
Figure 2. 37. Dot Resolutions
The RVRD and RVCD commands print raster data in the presentation mode specified by
the SRO command and at the resolution specified by the STR command. Either com-
mand can be used. The RVRD command can only print uncompressed raster data. The
RVCD command can print uncompressed raster data, run-length encoded raster data, or
Y
X
Current point
Width
Height
Landscape
Portrait
Y
X
Current point
Width
Height
Portrait
Current point
Width
Height
X
Y
X
Y
Height
Current point
Width
Landscape
Presentation mode = 0
Presentation mode = 1
75 dpi resolution
(Default)
100 dpi resolution
150 dpi resolution
200 dpi resolution
300 dpi resolution
600 dpi resolution
1200 dpi resolution

Kyocera Ecosys FS-1320D Specifications

General

Ethernet LAN	No
Network ready	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Printing colors	Black
Maximum duty cycle	50000 pages per month
Number of print cartridges	1
Page description languages	IBM ProPrinter, PCL 5c, PCL 6, PostScript 3
Processor model	405F5
Processor family	PowerPC
Maximum internal memory	544 MB
Display	LED
Certification	TÜV/GS, CE, PTS, C-Tick
Total input capacity	250 sheets
Maximum input capacity	800 sheets
Maximum number of input trays	3
Multi-Purpose tray input capacity	50 sheets
Custom media width	70 - 215.9 mm
Maximum print size	216 x 356 mm
Custom media length	148 - 356 mm
Duplex media weight	60 - 105 g/m²
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Standard interfaces	USB 2.0
Optional connectivity	Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	7.2 W
Power consumption (printing)	544 W
Power consumption (PowerSave)	4.3 W
Media thickness	0.11 mm
Compatible operating systems	Windows OS Linux OS Unix OS Mac OS X 10.2+

Weight and Dimensions

Dimensions (WxDxH)	375 x 393 x 250 mm
